Datasheet S102C (Vishay) - 2
| Manufacturer | Vishay |
| Description | High Precision Foil Resistor with TCR of ± 2.0 ppm/°C, Tolerance of ± 0.005 % and Load Life Stability of ± 0.005 % |
| Pages / Page | 6 / 2 — S Series. FIGURE 2 - STANDARD IMPRINTING AND DIMENSIONS. Front View. Rear … |
| File Format / Size | PDF / 133 Kb |
| Document Language | English |

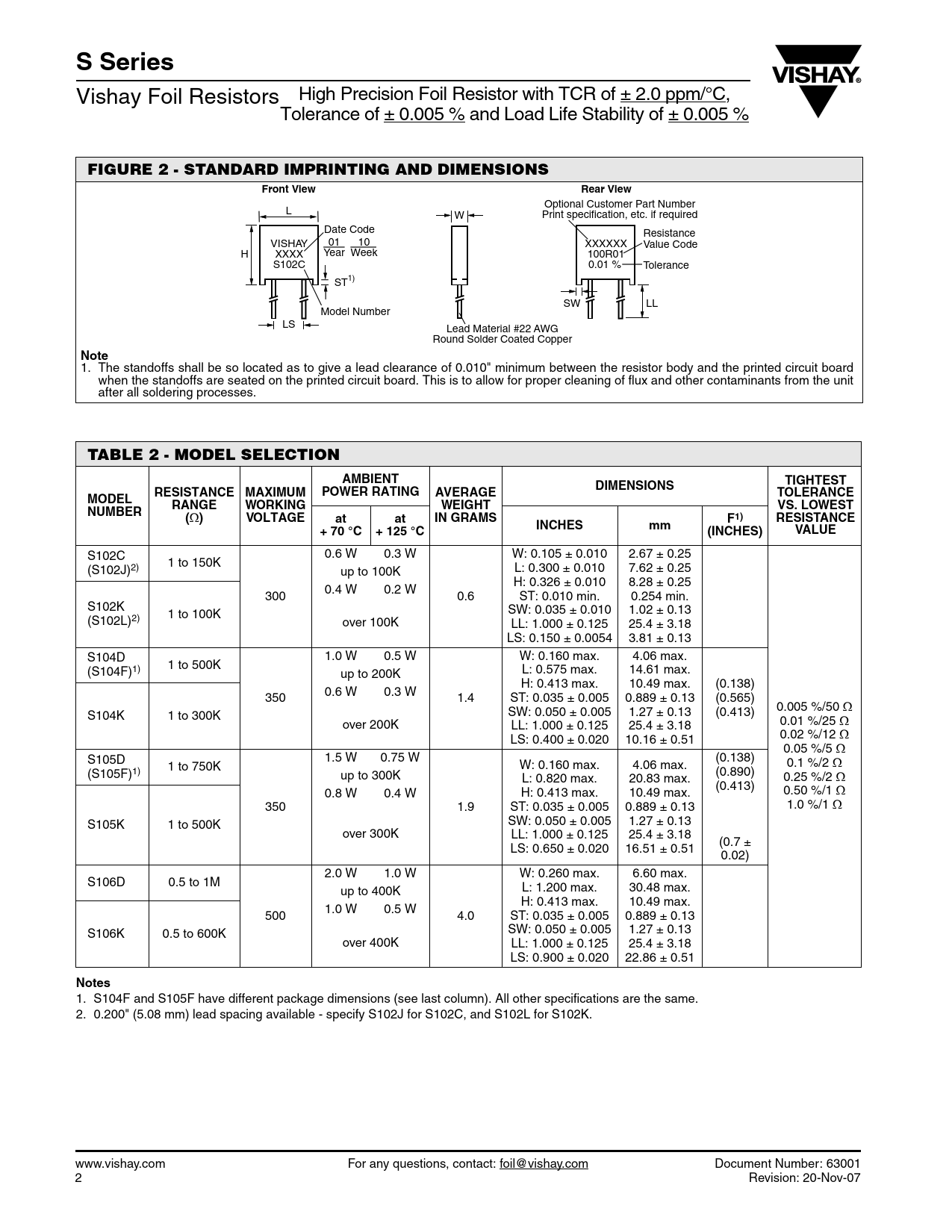

S Series. FIGURE 2 - STANDARD IMPRINTING AND DIMENSIONS. Front View. Rear View. Note. TABLE 2 - MODEL SELECTION. AMBIENT. DIMENSIONS
Model Line for this Datasheet
Text Version of Document
S Series
Vishay Foil Resistors High Precision Foil Resistor with TCR of ± 2.0 ppm/°C, Tolerance of ± 0.005 % and Load Life Stability of ± 0.005 %
FIGURE 2 - STANDARD IMPRINTING AND DIMENSIONS Front View Rear View
Optional Customer Part Number L W Print specification, etc. if required Date Code Resistance VISHAY 01 10 XXXXXX Value Code H XXXX Year Week 100R01 S102C 0.01 % Tolerance ST1) SW LL Model Number LS Lead Material #22 AWG Round Solder Coated Copper
Note
1. The standoffs shall be so located as to give a lead clearance of 0.010" minimum between the resistor body and the printed circuit board when the standoffs are seated on the printed circuit board. This is to allow for proper cleaning of flux and other contaminants from the unit after all soldering processes.
TABLE 2 - MODEL SELECTION AMBIENT DIMENSIONS TIGHTEST RESISTANCE MAXIMUM POWER RATING AVERAGE TOLERANCE MODEL RANGE WORKING WEIGHT VS. LOWEST NUMBER (
Ω
) VOLTAGE at at IN GRAMS F1) RESISTANCE INCHES mm + 70 °C + 125 °C (INCHES) VALUE
S102C 0.6 W 0.3 W W: 0.105 ± 0.010 2.67 ± 0.25 (S102J)2) 1 to 150K L: 0.300 ± 0.010 7.62 ± 0.25 up to 100K H: 0.326 ± 0.010 8.28 ± 0.25 0.4 W 0.2 W 300 0.6 ST: 0.010 min. 0.254 min. S102K SW: 0.035 ± 0.010 1.02 ± 0.13 (S102L)2) 1 to 100K over 100K LL: 1.000 ± 0.125 25.4 ± 3.18 LS: 0.150 ± 0.0054 3.81 ± 0.13 S104D 1.0 W 0.5 W W: 0.160 max. 4.06 max. (S104F)1) 1 to 500K L: 0.575 max. 14.61 max. up to 200K H: 0.413 max. 10.49 max. (0.138) 0.6 W 0.3 W 350 1.4 ST: 0.035 ± 0.005 0.889 ± 0.13 (0.565) 0.005 %/50 Ω SW: 0.050 ± 0.005 1.27 ± 0.13 (0.413) S104K 1 to 300K 0.01 %/25 Ω over 200K LL: 1.000 ± 0.125 25.4 ± 3.18 0.02 %/12 Ω LS: 0.400 ± 0.020 10.16 ± 0.51 0.05 %/5 Ω S105D 1.5 W 0.75 W (0.138) W: 0.160 max. 4.06 max. 0.1 %/2 Ω (S105F)1) 1 to 750K (0.890) up to 300K L: 0.820 max. 20.83 max. 0.25 %/2 Ω (0.413) 0.8 W 0.4 W H: 0.413 max. 10.49 max. 0.50 %/1 Ω 350 1.9 ST: 0.035 ± 0.005 0.889 ± 0.13 1.0 %/1 Ω SW: 0.050 ± 0.005 1.27 ± 0.13 S105K 1 to 500K over 300K LL: 1.000 ± 0.125 25.4 ± 3.18 (0.7 ± LS: 0.650 ± 0.020 16.51 ± 0.51 0.02) 2.0 W 1.0 W W: 0.260 max. 6.60 max. S106D 0.5 to 1M L: 1.200 max. 30.48 max. up to 400K H: 0.413 max. 10.49 max. 1.0 W 0.5 W 500 4.0 ST: 0.035 ± 0.005 0.889 ± 0.13 SW: 0.050 ± 0.005 1.27 ± 0.13 S106K 0.5 to 600K over 400K LL: 1.000 ± 0.125 25.4 ± 3.18 LS: 0.900 ± 0.020 22.86 ± 0.51
Notes
1. S104F and S105F have different package dimensions (see last column). All other specifications are the same. 2. 0.200" (5.08 mm) lead spacing available - specify S102J for S102C, and S102L for S102K. www.vishay.com For any questions, contact: foil@vishay.com Document Number: 63001 2 Revision: 20-Nov-07 Document Outline Datasheet Disclaimer
