S Series. TABLE 5 - GLOBAL PART NUMBER INFORMATION. NEW GLOBAL PART NUMBER: Y000780K5000V9L (preferred part number format)

S Series TABLE 5 - GLOBAL PART NUMBER INFORMATION NEW GLOBAL PART NUMBER: Y000780K5000V9L (preferred part number format)

Model Line for this Datasheet

Text Version of Document

S Series
High Precision Foil Resistor with TCR of ± 2.0 ppm/°C, Vishay Foil Resistors Tolerance of ± 0.005 % and Load Life Stability of ± 0.005 %

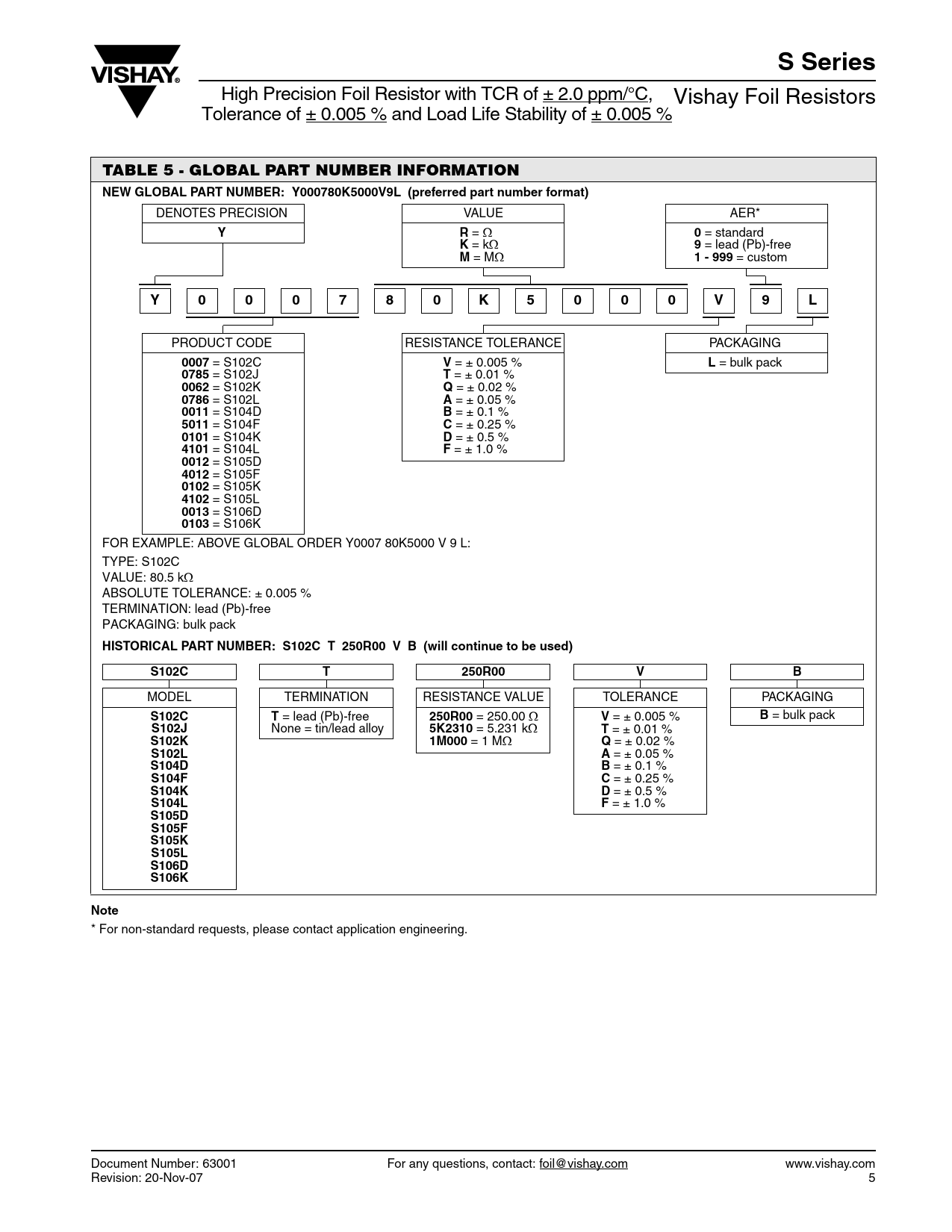

TABLE 5 - GLOBAL PART NUMBER INFORMATION NEW GLOBAL PART NUMBER: Y000780K5000V9L (preferred part number format)
DENOTES PRECISION VALUE AER*
Y R
= Ω
0
= standard
K
= kΩ
9
= lead (Pb)-free
M
= MΩ
1 - 999
= custom
Y 0 0 0 7 8 0 K 5 0 0 0 V 9 L
PRODUCT CODE RESISTANCE TOLERANCE PACKAGING
0007
= S102C
V
= ± 0.005 %
L
= bulk pack
0785
= S102J
T
= ± 0.01 %
0062
= S102K
Q
= ± 0.02 %
0786
= S102L
A
= ± 0.05 %
0011
= S104D
B
= ± 0.1 %
5011
= S104F
C
= ± 0.25 %
0101
= S104K
D
= ± 0.5 %
4101
= S104L
F
= ± 1.0 %
0012
= S105D
4012
= S105F
0102
= S105K
4102
= S105L
0013
= S106D
0103
= S106K FOR EXAMPLE: ABOVE GLOBAL ORDER Y0007 80K5000 V 9 L: TYPE: S102C VALUE: 80.5 kΩ ABSOLUTE TOLERANCE: ± 0.005 % TERMINATION: lead (Pb)-free PACKAGING: bulk pack
HISTORICAL PART NUMBER: S102C T 250R00 V B (will continue to be used) S102C T 250R00 V B
MODEL TERMINATION RESISTANCE VALUE TOLERANCE PACKAGING
S102C T
= lead (Pb)-free
250R00
= 250.00 Ω
V
= ± 0.005 %
B
= bulk pack
S102J
None = tin/lead alloy
5K2310
= 5.231 kΩ
T
= ± 0.01 %
S102K 1M000
= 1 MΩ
Q
= ± 0.02 %
S102L A
= ± 0.05 %
S104D B
= ± 0.1 %
S104F C
= ± 0.25 %
S104K D
= ± 0.5 %
S104L F
= ± 1.0 %
S105D S105F S105K S105L S106D S106K Note
* For non-standard requests, please contact application engineering. Document Number: 63001 For any questions, contact: foil@vishay.com www.vishay.com Revision: 20-Nov-07 5 Document Outline Datasheet Disclaimer
