200kHz, 4µA, Rail-to-Rail I/O Op Amps with Shutdown. ELECTRICAL CHARACTERISTICS (continued). TA = -40°C to +85°C. PARAMETER

200kHz, 4µA, Rail-to-Rail I/O Op Amps with Shutdown ELECTRICAL CHARACTERISTICS (continued) TA = -40°C to +85°C PARAMETER

Model Line for this Datasheet

Text Version of Document

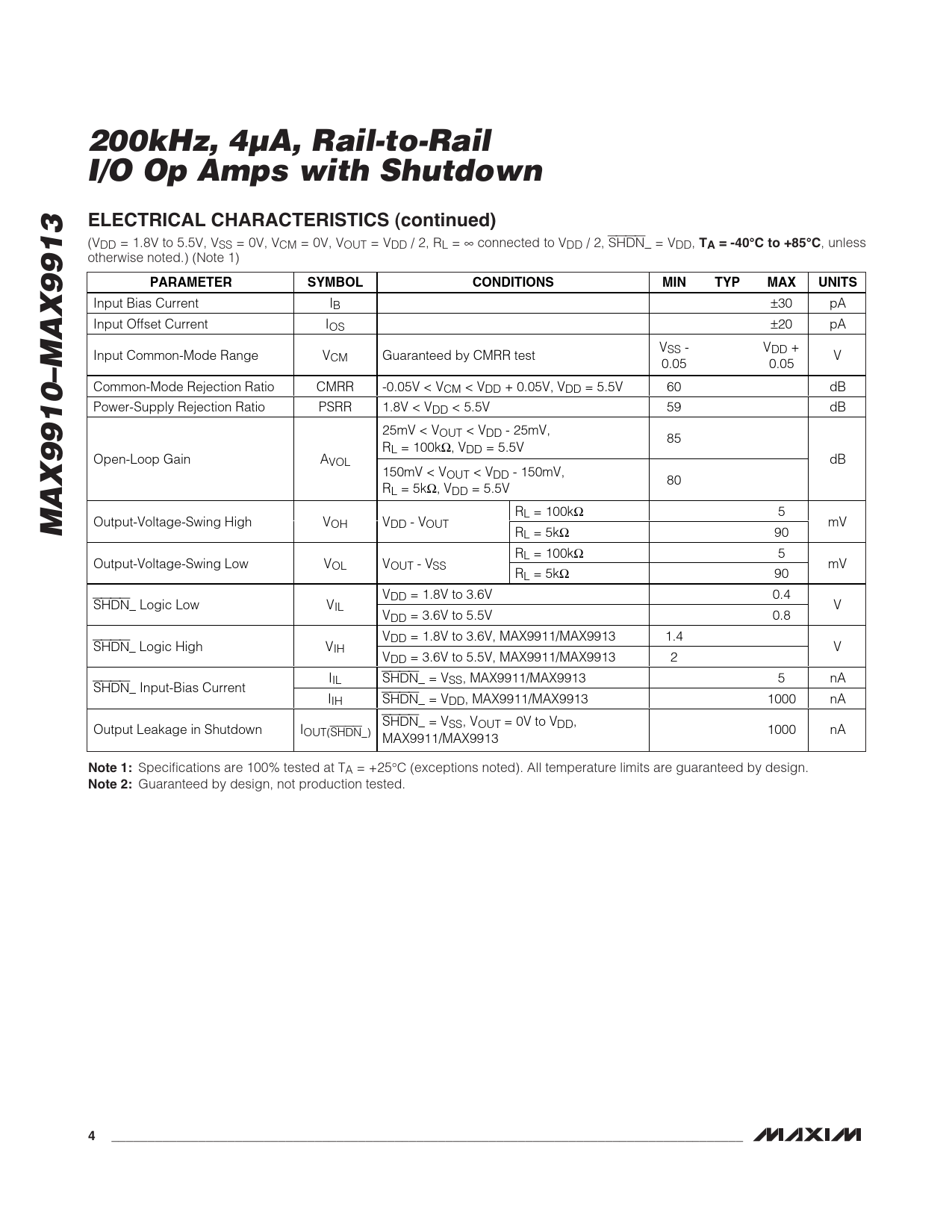

200kHz, 4µA, Rail-to-Rail I/O Op Amps with Shutdown ELECTRICAL CHARACTERISTICS (continued)
(VDD = 1.8V to 5.5V, VSS = 0V, VCM = 0V, VOUT = VDD / 2, RL = ∞ connected to VDD / 2, SHDN_ = VDD,
TA = -40°C to +85°C
, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Input Bias Current IB ±30 pA Input Offset Current IOS ±20 pA V V Input Common-Mode Range V SS - DD + CM Guaranteed by CMRR test V 0.05 0.05 Common-Mode Rejection Ratio CMRR -0.05V < VCM < VDD + 0.05V, VDD = 5.5V 60 dB Power-Supply Rejection Ratio PSRR 1.8V < VDD < 5.5V 59 dB 25mV < VOUT < VDD - 25mV, 85 RL = 100kΩ, VDD = 5.5V Open-Loop Gain AVOL dB 150mV < VOUT < VDD - 150mV, 80 RL = 5kΩ, VDD = 5.5V RL = 100kΩ 5
MAX9910–MAX9913
Output-Voltage-Swing High VOH VDD - VOUT mV RL = 5kΩ 90 RL = 100kΩ 5 Output-Voltage-Swing Low VOL VOUT - VSS mV RL = 5kΩ 90 VDD = 1.8V to 3.6V 0.4 SHDN_ Logic Low VIL V VDD = 3.6V to 5.5V 0.8 VDD = 1.8V to 3.6V, MAX9911/MAX9913 1.4 SHDN_ Logic High VIH V VDD = 3.6V to 5.5V, MAX9911/MAX9913 2 IIL SHDN_ = VSS, MAX9911/MAX9913 5 nA SHDN_ Input-Bias Current IIH SHDN_ = VDD, MAX9911/MAX9913 1000 nA SHDN_ = V Output Leakage in Shutdown I SS, VOUT = 0V to VDD, OUT(SHDN_) 1000 nA MAX9911/MAX9913
Note 1:
Specifications are 100% tested at TA = +25°C (exceptions noted). All temperature limits are guaranteed by design.
Note 2:
Guaranteed by design, not production tested.
4 _______________________________________________________________________________________
