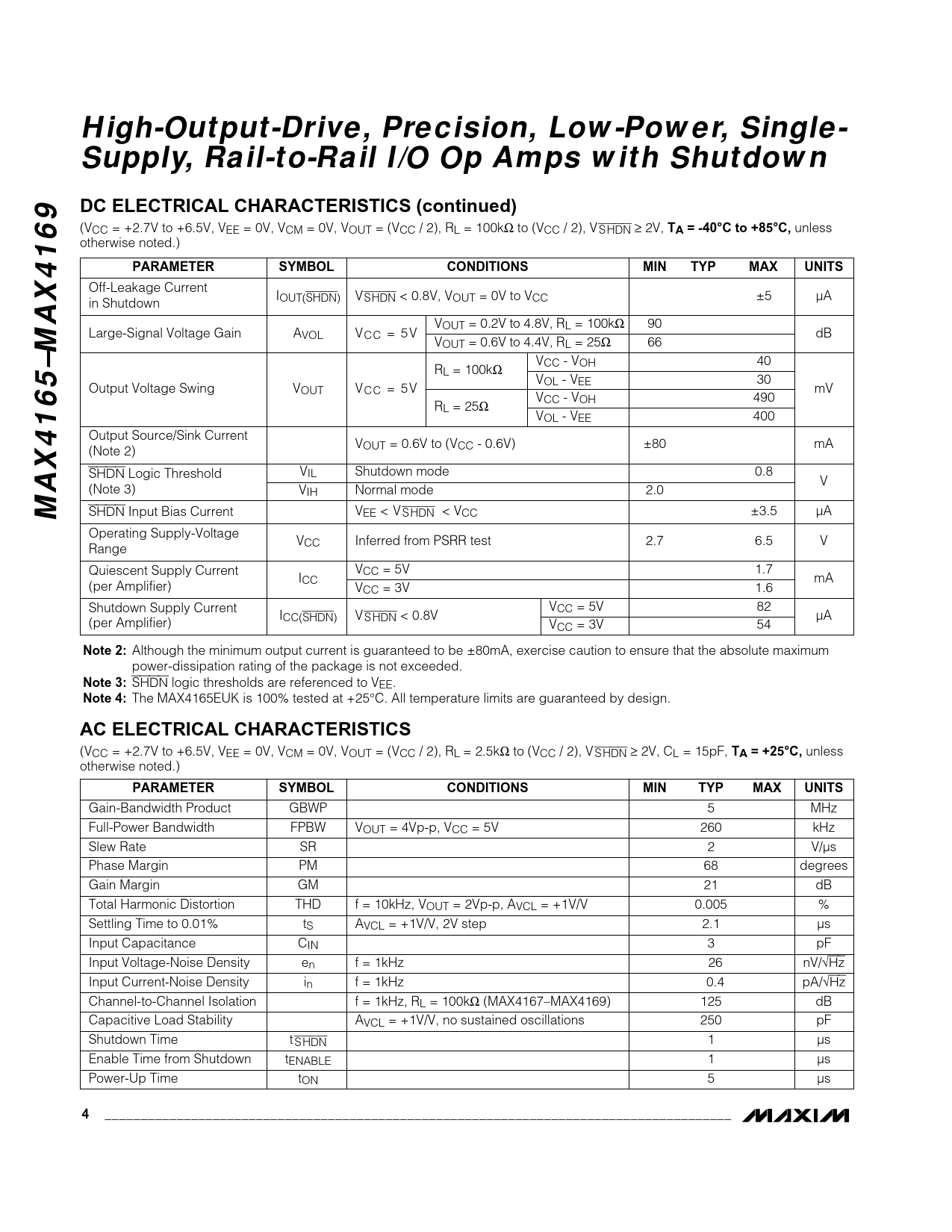

High-Output-Drive, Precision, Low-Power, Single- Supply, Rail-to-Rail I/O Op Amps with Shutdown DC ELECTRICAL CHARACTERISTICS (continued)
(VCC = +2.7V to +6.5V, VEE = 0V, VCM = 0V, VOUT = (VCC / 2), RL = 100kΩ to (VCC / 2), VSHDN ≥ 2V,
TA = -40°C to +85°C,
unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Off-Leakage Current IOUT(SHDN) VSHDN < 0.8V, VOUT = 0V to VCC ±5 µA in Shutdown VOUT = 0.2V to 4.8V, RL = 100kΩ 90 Large-Signal Voltage Gain AVOL VCC = 5V dB VOUT = 0.6V to 4.4V, RL = 25Ω 66 VCC - VOH 40 RL = 100kΩ VOL - VEE 30 Output Voltage Swing VOUT VCC = 5V mV VCC - VOH 490 RL = 25Ω VOL - VEE 400 Output Source/Sink Current VOUT = 0.6V to (VCC - 0.6V) ±80 mA (Note 2) SHDN Logic Threshold VIL Shutdown mode 0.8 V (Note 3) VIH Normal mode 2.0
MAX4165–MAX4169
SHDN Input Bias Current VEE < VSHDN < VCC ±3.5 µA Operating Supply-Voltage VCC Inferred from PSRR test 2.7 6.5 V Range Quiescent Supply Current VCC = 5V 1.7 ICC mA (per Amplifier) VCC = 3V 1.6 Shutdown Supply Current VCC = 5V 82 ICC(SHDN) VSHDN < 0.8V µA (per Amplifier) VCC = 3V 54
Note 2:
Although the minimum output current is guaranteed to be ±80mA, exercise caution to ensure that the absolute maximum power-dissipation rating of the package is not exceeded.
Note 3:
SHDN logic thresholds are referenced to VEE.
Note 4:
The MAX4165EUK is 100% tested at +25°C. All temperature limits are guaranteed by design.
AC ELECTRICAL CHARACTERISTICS
(VCC = +2.7V to +6.5V, VEE = 0V, VCM = 0V, VOUT = (VCC / 2), RL = 2.5kΩ to (VCC / 2), VSHDN ≥ 2V, CL = 15pF,
TA = +25°C,
unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Gain-Bandwidth Product GBWP 5 MHz Full-Power Bandwidth FPBW VOUT = 4Vp-p, VCC = 5V 260 kHz Slew Rate SR 2 V/µs Phase Margin PM 68 degrees Gain Margin GM 21 dB Total Harmonic Distortion THD f = 10kHz, VOUT = 2Vp-p, AVCL = +1V/V 0.005 % Settling Time to 0.01% tS AVCL = +1V/V, 2V step 2.1 µs Input Capacitance CIN 3 pF Input Voltage-Noise Density en f = 1kHz 26 nV/√Hz Input Current-Noise Density in f = 1kHz 0.4 pA/√Hz Channel-to-Channel Isolation f = 1kHz, RL = 100kΩ (MAX4167–MAX4169) 125 dB Capacitive Load Stability AVCL = +1V/V, no sustained oscillations 250 pF Shutdown Time tSHDN 1 µs Enable Time from Shutdown tENABLE 1 µs Power-Up Time tON 5 µs
4 _______________________________________________________________________________________
