Datasheet TLV7031 (Texas Instruments) - 3
| Manufacturer | Texas Instruments |
| Description | Nanopower, small size comparator with push-pull output |
| Pages / Page | 67 / 3 — TLV7031, TL. V7032, TL. V7041,. TLV7042,. TLV7034, TL. V7044. www.ti.com. … |
| File Format / Size | PDF / 4.3 Mb |
| Document Language | English |
TLV7031, TL. V7032, TL. V7041,. TLV7042,. TLV7034, TL. V7044. www.ti.com. 4 Pin Configuration and Functions
Model Line for this Datasheet
Text Version of Document
TLV7031, TL V7032, TL V7041, TLV7042, TLV7034, TL V7044 www.ti.com
SLVSE13I – SEPTEMBER 2017 – REVISED JUNE 2024

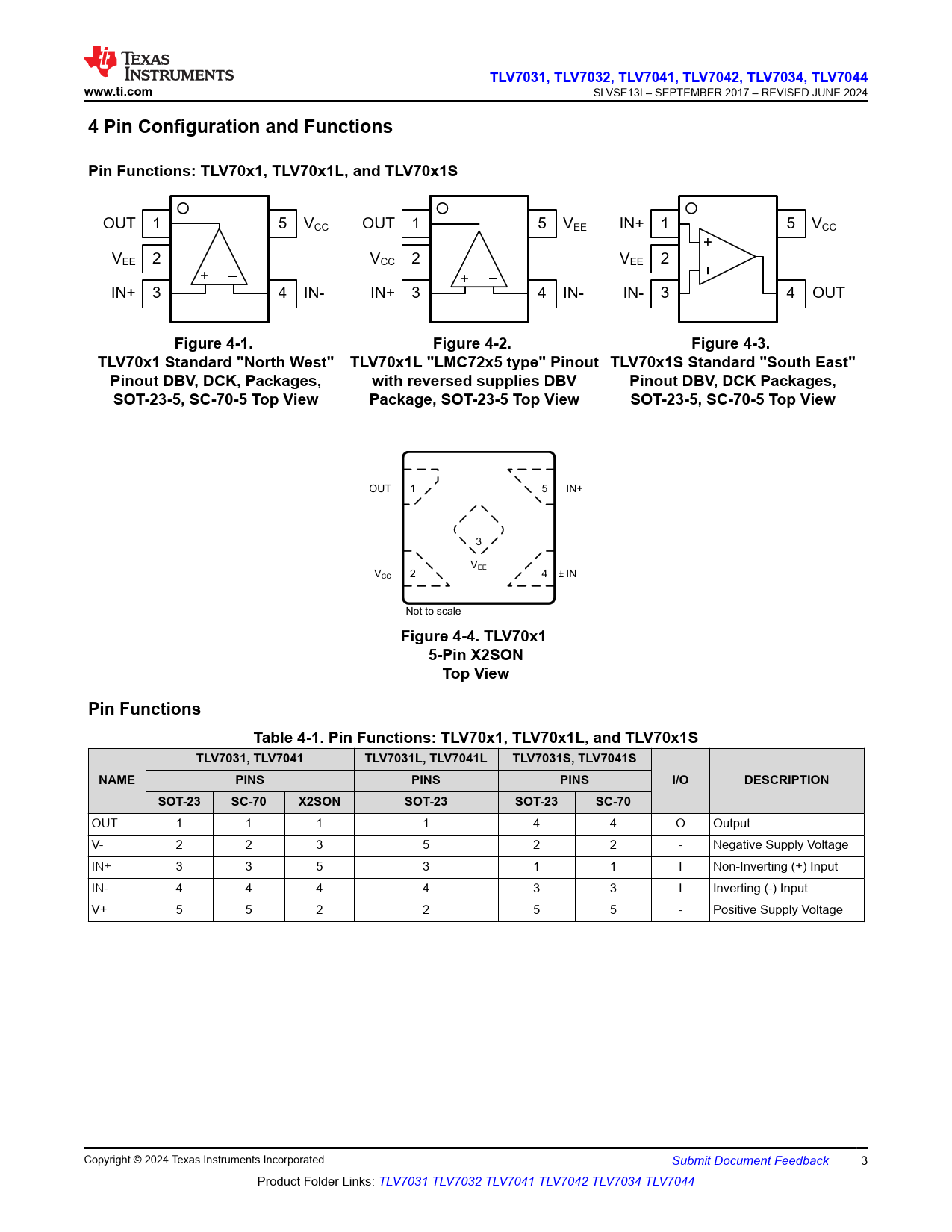

4 Pin Configuration and Functions Pin Functions: TLV70x1, TLV70x1L, and TLV70x1S
OUT 1 5 V OUT 1 5 V IN+ 1 5 V CC EE CC + V 2 V 2 V 2 EE + CC EE + IN+ 3 4 IN- IN+ 3 4 IN- IN- 3 4 OUT
Figure 4-1. Figure 4-2. Figure 4-3. TLV70x1 Standard "North West" TLV70x1L "LMC72x5 type" Pinout TLV70x1S Standard "South East" Pinout DBV, DCK, Packages, with reversed supplies DBV Pinout DBV, DCK Packages, SOT-23-5, SC-70-5 Top View Package, SOT-23-5 Top View SOT-23-5, SC-70-5 Top View
OUT 1 5 IN+ 3 VEE V 2 4 ± IN CC Not to scale
Figure 4-4. TLV70x1 5-Pin X2SON Top View Pin Functions Table 4-1. Pin Functions: TLV70x1, TLV70x1L, and TLV70x1S TLV7031, TLV7041 TLV7031L, TLV7041L TLV7031S, TLV7041S NAME PINS PINS PINS I/O DESCRIPTION SOT-23 SC-70 X2SON SOT-23 SOT-23 SC-70
OUT 1 1 1 1 4 4 O Output V- 2 2 3 5 2 2 - Negative Supply Voltage IN+ 3 3 5 3 1 1 I Non-Inverting (+) Input IN- 4 4 4 4 3 3 I Inverting (-) Input V+ 5 5 2 2 5 5 - Positive Supply Voltage Copyright © 2024 Texas Instruments Incorporated Submit Document Feedback 3 Product Folder Links: TLV7031 TLV7032 TLV7041 TLV7042 TLV7034 TLV7044 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Pin Configuration and Functions Pin Functions Pin Functions: TLV7032/42 Pin Functions: TLV7034/44 5 Specifications 5.1 Absolute Maximum Ratings 5.2 ESD Ratings 5.3 Recommended Operating Conditions 5.4 Thermal Information (Single) 5.5 Thermal Information (Dual) 5.6 Thermal Information (Quad) 5.7 Electrical Characteristics (Single) 5.8 Switching Characteristics (Single) 5.9 Electrical Characteristics (Dual) 5.10 Switching Characteristics (Dual) 5.11 Electrical Characteristics (Quad) 5.12 Switching Characteristics (Quad) 5.13 Timing Diagrams 5.14 Typical Characteristics 6 Detailed Description 6.1 Overview 6.2 Functional Block Diagram 6.3 Feature Description 6.4 Device Functional Modes 6.4.1 Inputs 6.4.2 Internal Hysteresis 6.4.3 Output 7 Application and Implementation 7.1 Application Information 7.1.1 Inverting Comparator With Hysteresis for TLV703x 7.1.2 Noninverting Comparator With Hysteresis for TLV703x 7.2 Typical Applications 7.2.1 Window Comparator 7.2.1.1 Design Requirements 7.2.1.2 Detailed Design Procedure 7.2.1.3 Application Curve 7.2.2 IR Receiver Analog Front End 7.2.2.1 Design Requirements 7.2.2.2 Detailed Design Procedure 7.2.2.3 Application Curve 7.2.3 Square-Wave Oscillator 7.2.3.1 Design Requirements 7.2.3.2 Detailed Design Procedure 7.2.3.3 Application Curve 7.2.4 Quadrature Rotary Encoder 7.2.4.1 Design Requirements 7.2.4.2 Detailed Design Procedure 7.2.4.3 Application Curve 7.3 Power Supply Recommendations 7.4 Layout 7.4.1 Layout Guidelines 7.4.2 Layout Example 8 Device and Documentation Support 8.1 Device Support 8.1.1 Development Support 8.1.1.1 Evaluation Module 8.2 Documentation Support 8.2.1 Related Documentation 8.3 Receiving Notification of Documentation Updates 8.4 Support Resources 8.5 Trademarks 8.6 Electrostatic Discharge Caution 8.7 Glossary 9 Revision History 10 Mechanical, Packaging, and Orderable Information
