TLV7031, TL. V7032,. TLV7041,. TLV7042, TL. V7034, TL. V7044. www.ti.com. Figure 4-5. TLV7032/42 DGK, DDF Packages. 8-Pin VSSOP, SOT-23
Model Line for this Datasheet
Text Version of Document
TLV7031, TL V7032, TLV7041, TLV7042, TL V7034, TL V7044
SLVSE13I – SEPTEMBER 2017 – REVISED JUNE 2024
www.ti.com
OUTA 1 8 VCC INA- 2 7 OUTB INA+ 3 6 INB- VEE 4 5 INB+

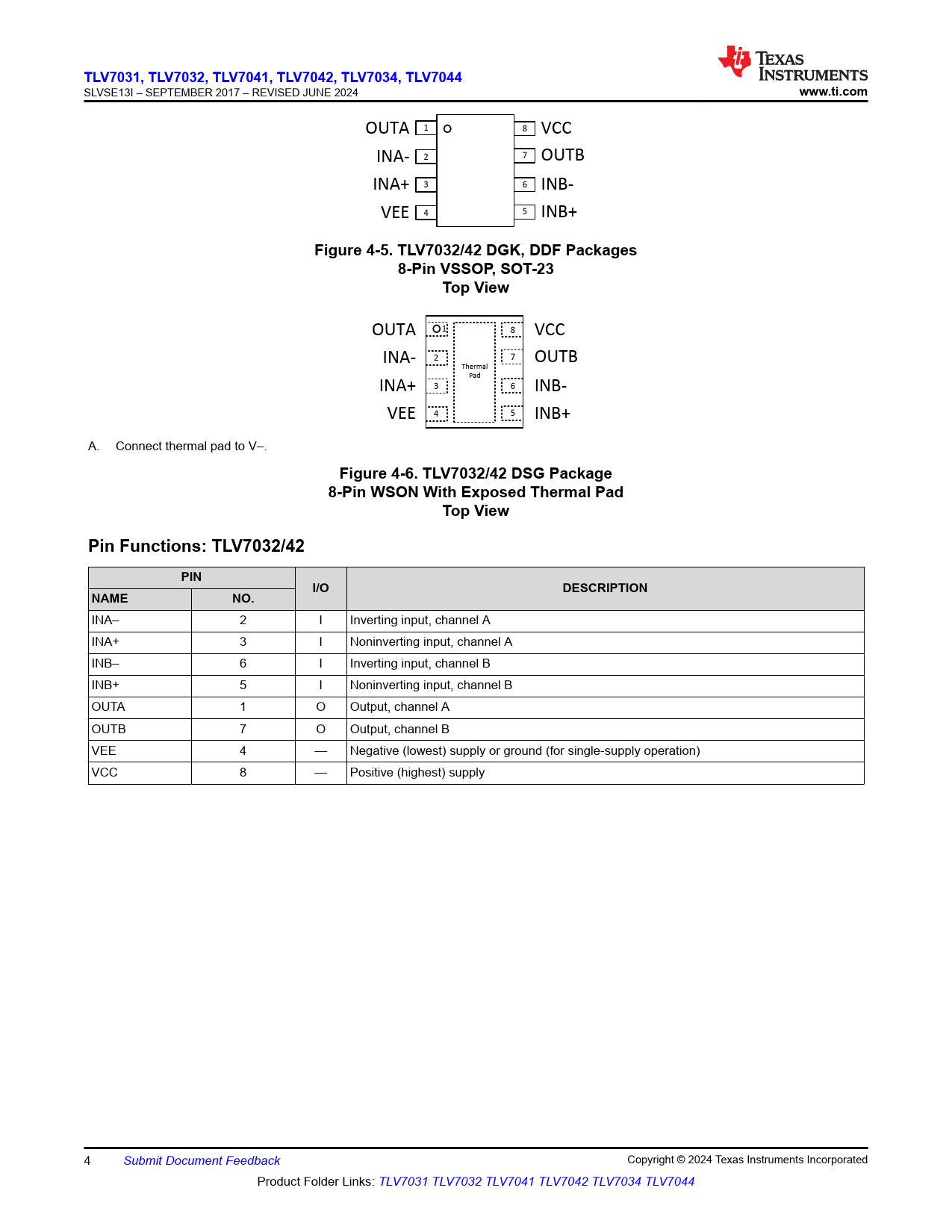

Figure 4-5. TLV7032/42 DGK, DDF Packages 8-Pin VSSOP, SOT-23 Top View
OUTA 1 8 VCC INA- 2 7 OUTB Thermal Pad INA+ 3 6 INB- VEE 4 5 INB+ A. Connect thermal pad to V–.
Figure 4-6. TLV7032/42 DSG Package 8-Pin WSON With Exposed Thermal Pad Top View Pin Functions: TLV7032/42 PIN I/O DESCRIPTION NAME NO.
INA– 2 I Inverting input, channel A INA+ 3 I Noninverting input, channel A INB– 6 I Inverting input, channel B INB+ 5 I Noninverting input, channel B OUTA 1 O Output, channel A OUTB 7 O Output, channel B VEE 4 — Negative (lowest) supply or ground (for single-supply operation) VCC 8 — Positive (highest) supply 4 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated Product Folder Links: TLV7031 TLV7032 TLV7041 TLV7042 TLV7034 TLV7044 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Pin Configuration and Functions Pin Functions Pin Functions: TLV7032/42 Pin Functions: TLV7034/44 5 Specifications 5.1 Absolute Maximum Ratings 5.2 ESD Ratings 5.3 Recommended Operating Conditions 5.4 Thermal Information (Single) 5.5 Thermal Information (Dual) 5.6 Thermal Information (Quad) 5.7 Electrical Characteristics (Single) 5.8 Switching Characteristics (Single) 5.9 Electrical Characteristics (Dual) 5.10 Switching Characteristics (Dual) 5.11 Electrical Characteristics (Quad) 5.12 Switching Characteristics (Quad) 5.13 Timing Diagrams 5.14 Typical Characteristics 6 Detailed Description 6.1 Overview 6.2 Functional Block Diagram 6.3 Feature Description 6.4 Device Functional Modes 6.4.1 Inputs 6.4.2 Internal Hysteresis 6.4.3 Output 7 Application and Implementation 7.1 Application Information 7.1.1 Inverting Comparator With Hysteresis for TLV703x 7.1.2 Noninverting Comparator With Hysteresis for TLV703x 7.2 Typical Applications 7.2.1 Window Comparator 7.2.1.1 Design Requirements 7.2.1.2 Detailed Design Procedure 7.2.1.3 Application Curve 7.2.2 IR Receiver Analog Front End 7.2.2.1 Design Requirements 7.2.2.2 Detailed Design Procedure 7.2.2.3 Application Curve 7.2.3 Square-Wave Oscillator 7.2.3.1 Design Requirements 7.2.3.2 Detailed Design Procedure 7.2.3.3 Application Curve 7.2.4 Quadrature Rotary Encoder 7.2.4.1 Design Requirements 7.2.4.2 Detailed Design Procedure 7.2.4.3 Application Curve 7.3 Power Supply Recommendations 7.4 Layout 7.4.1 Layout Guidelines 7.4.2 Layout Example 8 Device and Documentation Support 8.1 Device Support 8.1.1 Development Support 8.1.1.1 Evaluation Module 8.2 Documentation Support 8.2.1 Related Documentation 8.3 Receiving Notification of Documentation Updates 8.4 Support Resources 8.5 Trademarks 8.6 Electrostatic Discharge Caution 8.7 Glossary 9 Revision History 10 Mechanical, Packaging, and Orderable Information
