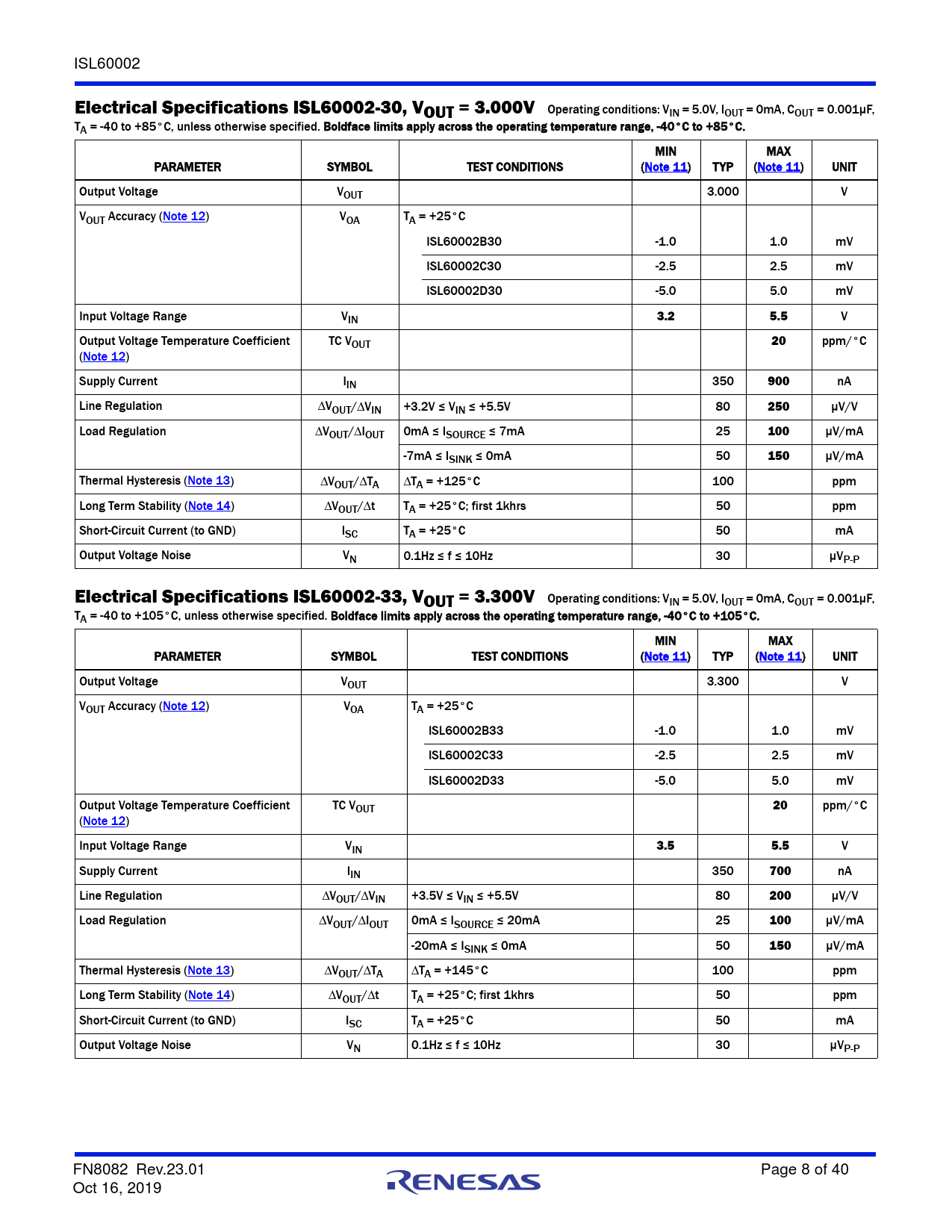

link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 ISL60002 Electrical Specifications ISL60002-30, VOUT = 3.000V Operating conditions: VIN = 5.0V, IOUT = 0mA, COUT = 0.001µF, TA = -40 to +85°C, unless otherwise specified. Boldface limits apply across the operating temperature range, -40°C to +85°C. MIN MAX PARAMETER SYMBOL TEST CONDITIONS (Note 11) TYP (Note 11) UNIT Output Voltage VOUT 3.000 V VOUT Accuracy (Note 12) VOA TA = +25°C ISL60002B30 -1.0 1.0 mV ISL60002C30 -2.5 2.5 mV ISL60002D30 -5.0 5.0 mV Input Voltage Range VIN 3.2 5.5 V Output Voltage Temperature Coefficient TC VOUT 20 ppm/°C (Note 12) Supply Current IIN 350 900 nA Line Regulation ΔVOUT/ΔVIN +3.2V ≤ VIN ≤ +5.5V 80 250 µV/V Load Regulation ΔVOUT/ΔIOUT 0mA ≤ ISOURCE ≤ 7mA 25 100 µV/mA -7mA ≤ ISINK ≤ 0mA 50 150 µV/mA Thermal Hysteresis (Note 13) ΔVOUT/ΔTA ΔTA = +125°C 100 ppm Long Term Stability (Note 14) ΔVOUT/Δt TA = +25°C; first 1khrs 50 ppm Short-Circuit Current (to GND) ISC TA = +25°C 50 mA Output Voltage Noise VN 0.1Hz ≤ f ≤ 10Hz 30 µVP-P Electrical Specifications ISL60002-33, VOUT = 3.300V Operating conditions: VIN = 5.0V, IOUT = 0mA, COUT = 0.001µF, TA = -40 to +105°C, unless otherwise specified. Boldface limits apply across the operating temperature range, -40°C to +105°C. MIN MAX PARAMETER SYMBOL TEST CONDITIONS (Note 11) TYP (Note 11) UNIT Output Voltage VOUT 3.300 V VOUT Accuracy (Note 12) VOA TA = +25°C ISL60002B33 -1.0 1.0 mV ISL60002C33 -2.5 2.5 mV ISL60002D33 -5.0 5.0 mV Output Voltage Temperature Coefficient TC VOUT 20 ppm/°C (Note 12) Input Voltage Range VIN 3.5 5.5 V Supply Current IIN 350 700 nA Line Regulation ΔVOUT/ΔVIN +3.5V ≤ VIN ≤ +5.5V 80 200 µV/V Load Regulation ΔVOUT/ΔIOUT 0mA ≤ ISOURCE ≤ 20mA 25 100 µV/mA -20mA ≤ ISINK ≤ 0mA 50 150 µV/mA Thermal Hysteresis (Note 13) ΔVOUT/ΔTA ΔTA = +145°C 100 ppm Long Term Stability (Note 14) ΔVOUT/Δt TA = +25°C; first 1khrs 50 ppm Short-Circuit Current (to GND) ISC TA = +25°C 50 mA Output Voltage Noise VN 0.1Hz ≤ f ≤ 10Hz 30 µVP-P FN8082 Rev.23.01 Page 8 of 40 Oct 16, 2019 Document Outline Applications Features Related Literature Table of Contents Pin Configuration Pin Descriptions Ordering Information Absolute Maximum Ratings Thermal Information Environmental Operating Conditions Recommended Operating Conditions Electrical Specifications ISL60002-10, VOUT = 1.024V Electrical Specifications ISL60002-11, VOUT = 1.200V Electrical Specifications ISL60002-12, VOUT = 1.250V Electrical Specifications ISL60002-18, VOUT = 1.800V Electrical Specifications ISL60002-20, VOUT = 2.048V Electrical Specifications ISL60002-25, VOUT = 2.500V Electrical Specifications ISL60002-26, VOUT = 2.600V Electrical Specifications ISL60002-30, VOUT = 3.000V Electrical Specifications ISL60002-33, VOUT = 3.300V Common Electrical Specifications ISL60002 -10, -11, -12, -18, -20, and -25 Typical Performance Characteristic Curves, VOUT = 1.024V Typical Performance Characteristic Curves, VOUT = 1.20V Typical Performance Characteristic Curves, VOUT = 1.25V Typical Performance Curves, VOUT = 1.8V Typical Performance Curves, VOUT = 2.048V Typical Performance Characteristic Curves, VOUT = 2.50V Typical Performance Characteristic Curves, VOUT = 3.0V Typical Performance Characteristic Curves, VOUT = 3.3V High Current Application Applications Information FGA Technology Nanopower Operation Board Mounting Considerations Board Assembly Considerations Special Applications Considerations Noise Performance and Reduction Turn-On Time Temperature Coefficient Typical Application Circuits Revision History Package Outline Drawing
