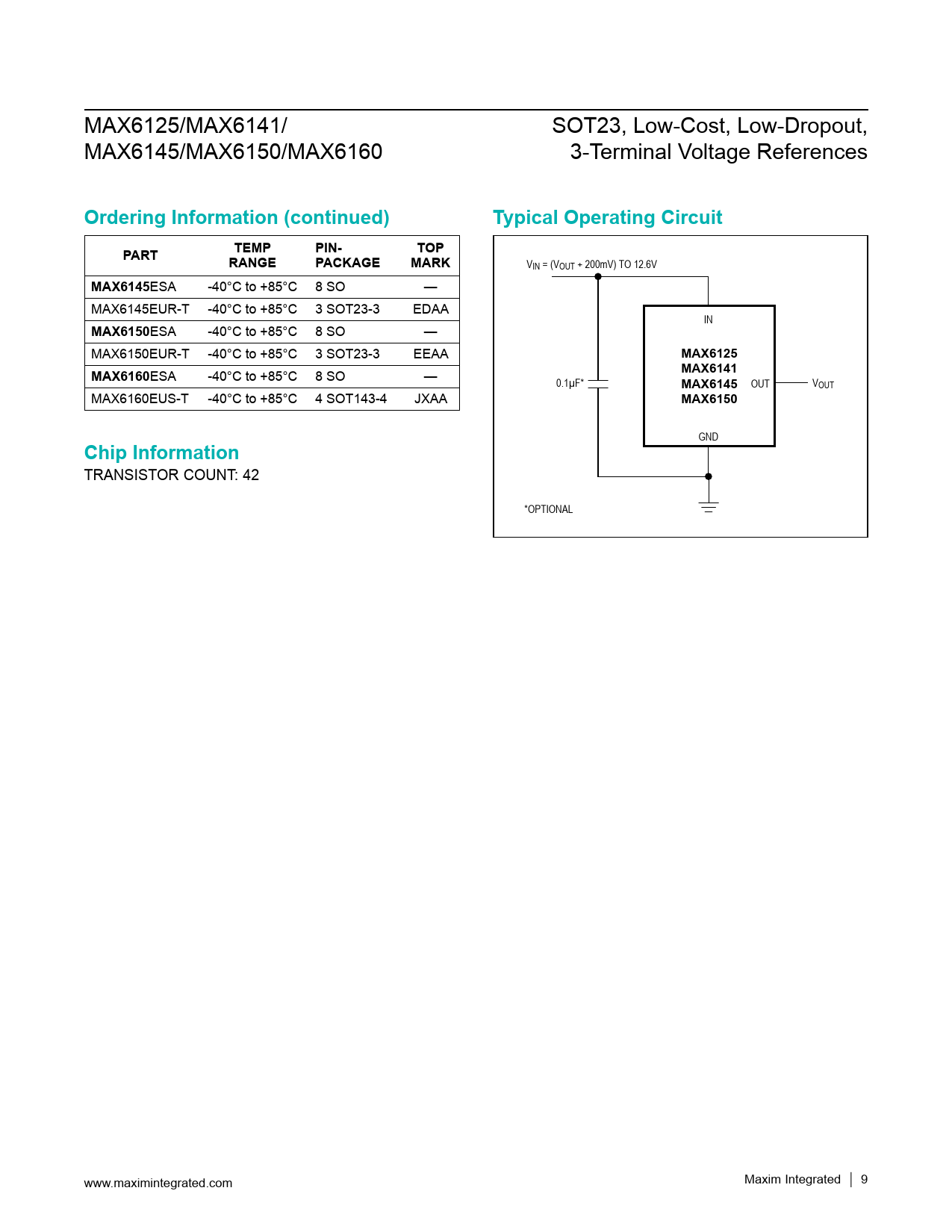

MAX6125/MAX6141/ SOT23, Low-Cost, Low-Dropout, MAX6145/MAX6150/MAX6160 3-Terminal Voltage References
Ordering Information (continued) Typical Operating Circuit PART TEMP PIN- TOP RANGE PACKAGE MARK
VIN = (VOUT + 200mV) TO 12.6V
MAX6145
ESA -40°C to +85°C 8 SO — MAX6145EUR-T -40°C to +85°C 3 SOT23-3 EDAA IN
MAX6150
ESA -40°C to +85°C 8 SO — MAX6150EUR-T -40°C to +85°C 3 SOT23-3 EEAA
MAX6125 MAX6160
ESA -40°C to +85°C 8 SO —
MAX6141
0.1µF*
MAX6145
OUT VOUT MAX6160EUS-T -40°C to +85°C 4 SOT143-4 JXAA
MAX6150
GND
Chip Information
TRANSISTOR COUNT: 42 *OPTIONAL www.maximintegrated.com Maxim Integrated │ 9
