Datasheet ADRF5010 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | Silicon SPST Switch, NonReflective, 100 MHz to 55 GHz |
| Pages / Page | 12 / 9 — ADRF5010. TYPICAL PERFORMANCE CHARACTERISTICS. INPUT POWER COMPRESSION … |
| File Format / Size | PDF / 665 Kb |
| Document Language | English |
ADRF5010. TYPICAL PERFORMANCE CHARACTERISTICS. INPUT POWER COMPRESSION AND THIRD-ORDER INTERCEPT
Model Line for this Datasheet
Text Version of Document
Data Sheet
ADRF5010 TYPICAL PERFORMANCE CHARACTERISTICS INPUT POWER COMPRESSION AND THIRD-ORDER INTERCEPT
VDD = 3.3 V, VSS = −3.3 V, VCTRL = 0 V or VDD, TCASE = 25°C, 50 Ω system, unless otherwise noted.

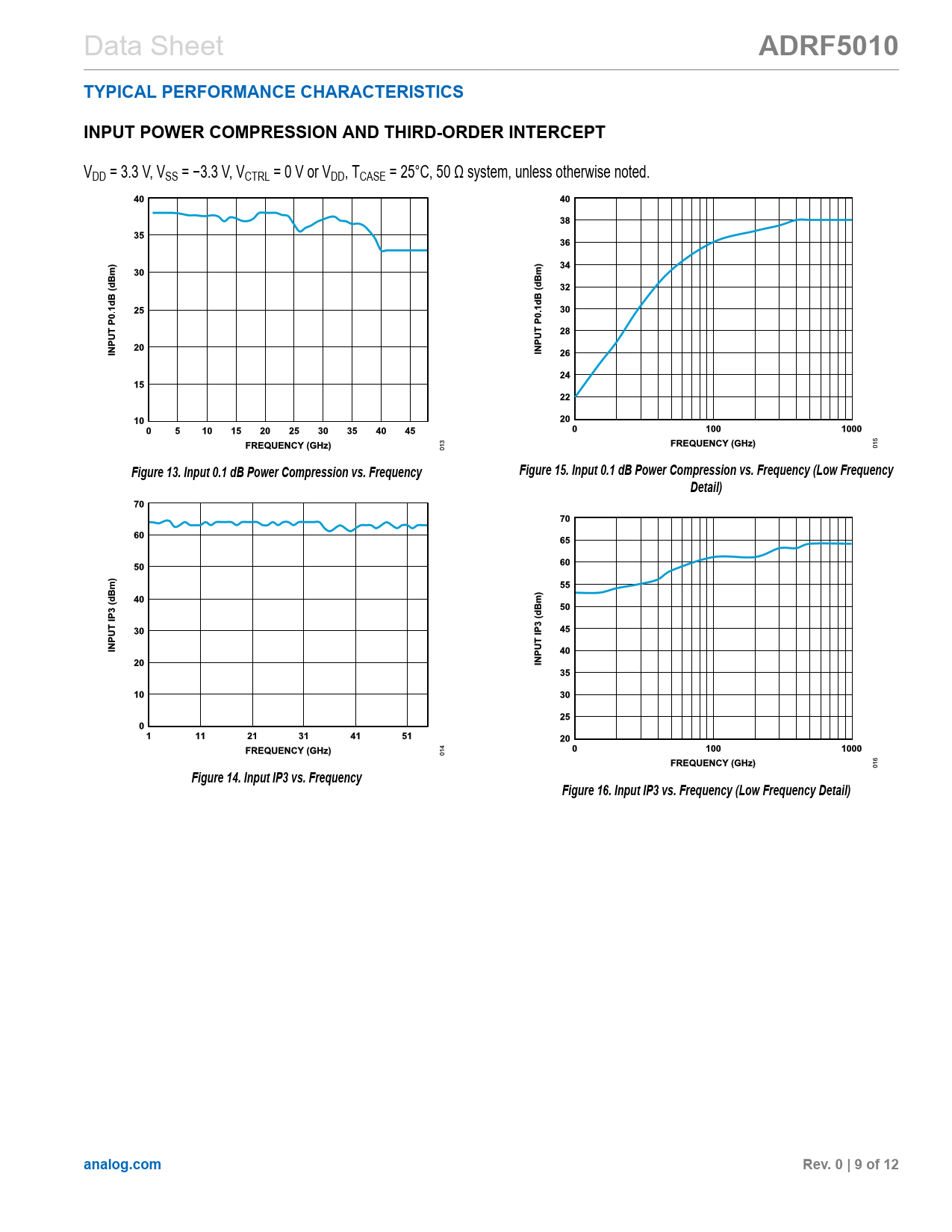

Figure 13. Input 0.1 dB Power Compression vs. Frequency Figure 15. Input 0.1 dB Power Compression vs. Frequency (Low Frequency Detail) Figure 14. Input IP3 vs. Frequency Figure 16. Input IP3 vs. Frequency (Low Frequency Detail) analog.com Rev. 0 | 9 of 12
