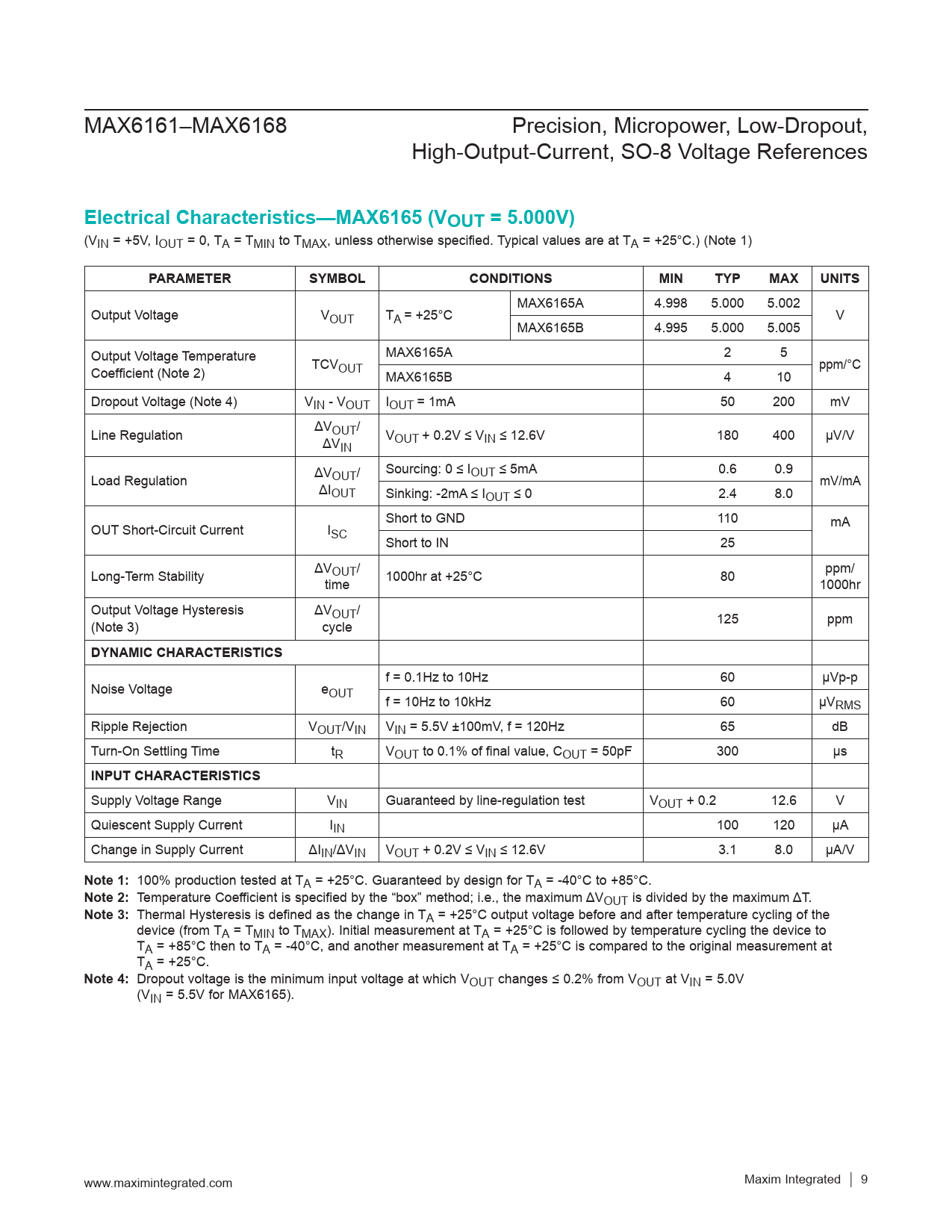

MAX6161–MAX6168 Precision, Micropower, Low-Dropout, High-Output-Current, SO-8 Voltage References
Electrical Characteristics—MAX6165 (VOUT = 5.000V)
(VIN = +5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise specified. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
MAX6165A 4.998 5.000 5.002 Output Voltage VOUT TA = +25°C V MAX6165B 4.995 5.000 5.005 Output Voltage Temperature MAX6165A 2 5 Coefficient (Note 2) TCVOUT ppm/°C MAX6165B 4 10 Dropout Voltage (Note 4) VIN - VOUT IOUT = 1mA 50 200 mV Line Regulation ΔVOUT/ ΔV VOUT + 0.2V ≤ VIN ≤ 12.6V 180 400 µV/V IN Sourcing: 0 ≤ I Load Regulation ΔVOUT/ OUT ≤ 5mA 0.6 0.9 ΔI mV/mA OUT Sinking: -2mA ≤ IOUT ≤ 0 2.4 8.0 Short to GND 110 OUT Short-Circuit Current I mA SC Short to IN 25 Long-Term Stability ΔVOUT/ time 1000hr at +25°C 80 ppm/ 1000hr Output Voltage Hysteresis ΔVOUT/ (Note 3) cycle 125 ppm
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 60 µVp-p Noise Voltage eOUT f = 10Hz to 10kHz 60 µVRMS Ripple Rejection VOUT/VIN VIN = 5.5V ±100mV, f = 120Hz 65 dB Turn-On Settling Time tR VOUT to 0.1% of final value, COUT = 50pF 300 µs
INPUT CHARACTERISTICS
Supply Voltage Range VIN Guaranteed by line-regulation test VOUT + 0.2 12.6 V Quiescent Supply Current IIN 100 120 µA Change in Supply Current ΔIIN/ΔVIN VOUT + 0.2V ≤ VIN ≤ 12.6V 3.1 8.0 µA/V
Note 1:
100% production tested at TA = +25°C. Guaranteed by design for TA = -40°C to +85°C.
Note 2:
Temperature Coefficient is specified by the “box” method; i.e., the maximum ΔVOUT is divided by the maximum ΔT.
Note 3:
Thermal Hysteresis is defined as the change in TA = +25°C output voltage before and after temperature cycling of the device (from TA = TMIN to TMAX). Initial measurement at TA = +25°C is followed by temperature cycling the device to TA = +85°C then to TA = -40°C, and another measurement at TA = +25°C is compared to the original measurement at TA = +25°C.
Note 4:
Dropout voltage is the minimum input voltage at which VOUT changes ≤ 0.2% from VOUT at VIN = 5.0V (VIN = 5.5V for MAX6165). www.maximintegrated.com Maxim Integrated │ 9
