Datasheet MAX6325 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | 1ppm/°C, Low-Noise, +2.5V/+4.096V/+5V Voltage References |
| Pages / Page | 11 / 9 — 1ppm/°C, Low-Noise, +2.5V/+4.096V/+5V. Voltage References. Ordering … |
| File Format / Size | PDF / 556 Kb |
| Document Language | English |
1ppm/°C, Low-Noise, +2.5V/+4.096V/+5V. Voltage References. Ordering Information (continued)
Model Line for this Datasheet
Text Version of Document
MAX6325/MAX6341/MAX6350 MAX6325/MAX6341/MAX6350
1ppm/°C, Low-Noise, +2.5V/+4.096V/+5V Voltage References

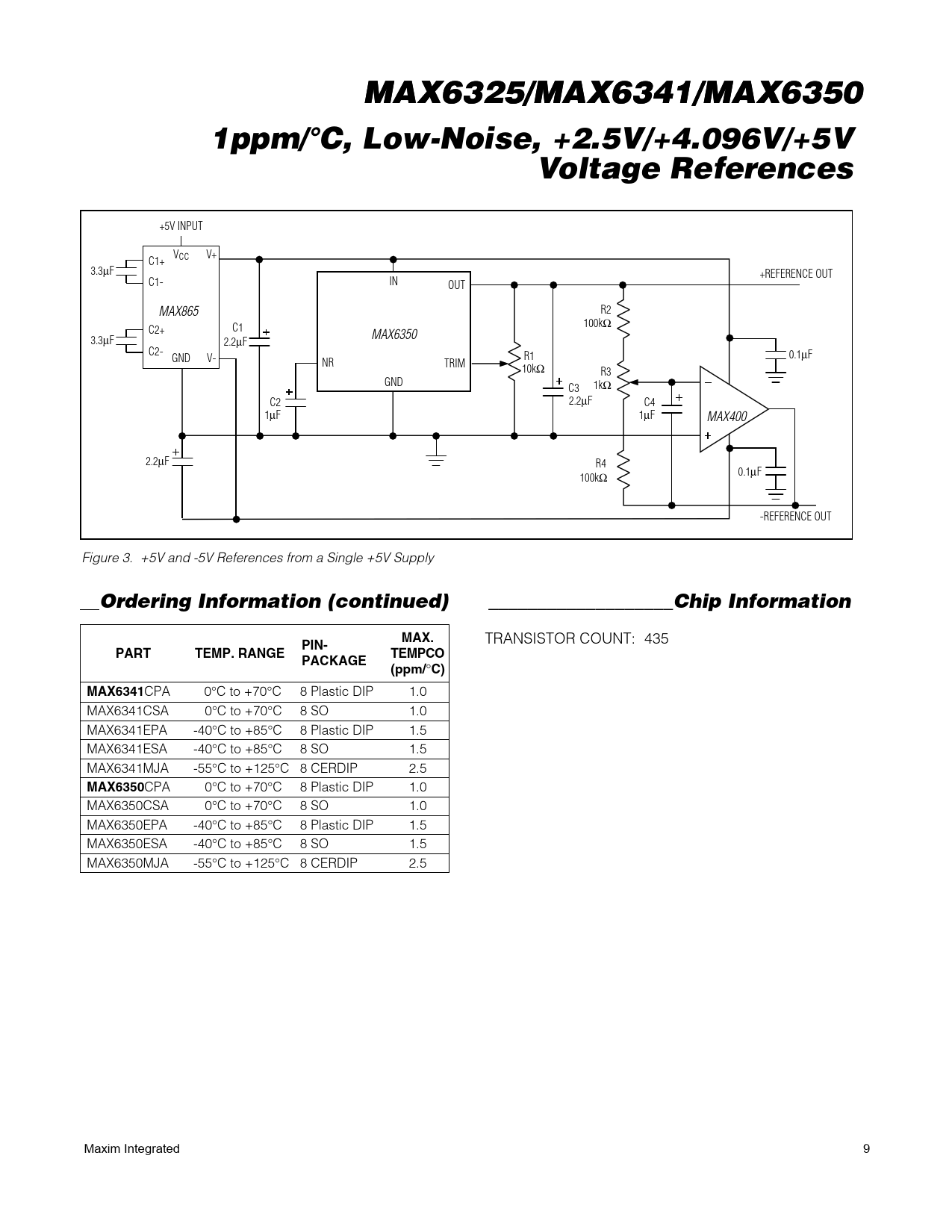

+5V INPUT VCC V+ C1+ 3.3µF +REFERENCE OUT C1- IN OUT MAX865 R2 100kΩ C2+ C1 MAX6350 3.3µF 2.2µF C2- GND V- R1 0.1µF NR TRIM 10kΩ R3 GND 1k C3 Ω C2 2.2µF C4 1µF 1µF MAX400 2.2µF R4 0.1µF 100kΩ -REFERENCE OUT Figure 3. +5V and -5V References from a Single +5V Supply
Ordering Information (continued) ___________________Chip Information MAX.
TRANSISTOR COUNT: 435
PIN- PART TEMP. RANGE TEMPCO PACKAGE (ppm/
°
C) MAX6341
CPA 0°C to +70°C 8 Plastic DIP 1.0 MAX6341CSA 0°C to +70°C 8 SO 1.0 MAX6341EPA -40°C to +85°C 8 Plastic DIP 1.5 MAX6341ESA -40°C to +85°C 8 SO 1.5 MAX6341MJA -55°C to +125°C 8 CERDIP 2.5
MAX6350
CPA 0°C to +70°C 8 Plastic DIP 1.0 MAX6350CSA 0°C to +70°C 8 SO 1.0 MAX6350EPA -40°C to +85°C 8 Plastic DIP 1.5 MAX6350ESA -40°C to +85°C 8 SO 1.5 MAX6350MJA -55°C to +125°C 8 CERDIP 2.5 Maxim Integrated 9
1ppm/°C, Low-Noise, +2.5V/+4.096V/+5V Voltage References
+5V INPUT VCC V+ C1+ 3.3µF +REFERENCE OUT C1- IN OUT MAX865 R2 100kΩ C2+ C1 MAX6350 3.3µF 2.2µF C2- GND V- R1 0.1µF NR TRIM 10kΩ R3 GND 1k C3 Ω C2 2.2µF C4 1µF 1µF MAX400 2.2µF R4 0.1µF 100kΩ -REFERENCE OUT Figure 3. +5V and -5V References from a Single +5V Supply
Ordering Information (continued) ___________________Chip Information MAX.
TRANSISTOR COUNT: 435
PIN- PART TEMP. RANGE TEMPCO PACKAGE (ppm/
°
C) MAX6341
CPA 0°C to +70°C 8 Plastic DIP 1.0 MAX6341CSA 0°C to +70°C 8 SO 1.0 MAX6341EPA -40°C to +85°C 8 Plastic DIP 1.5 MAX6341ESA -40°C to +85°C 8 SO 1.5 MAX6341MJA -55°C to +125°C 8 CERDIP 2.5
MAX6350
CPA 0°C to +70°C 8 Plastic DIP 1.0 MAX6350CSA 0°C to +70°C 8 SO 1.0 MAX6350EPA -40°C to +85°C 8 Plastic DIP 1.5 MAX6350ESA -40°C to +85°C 8 SO 1.5 MAX6350MJA -55°C to +125°C 8 CERDIP 2.5 Maxim Integrated 9
