Datasheet SY58608U (Microchip) - 8
| Manufacturer | Microchip |
| Description | 2.5V, high-speed, fully differential 1:2 LVDS fanout buffer optimized to provide two identical output copies with less than 20ps of skew and less than 10psPP total jitter |
| Pages / Page | 24 / 8 — SY58608U. 4.0. TYPICAL PERFORMANCE CURVES. Note:. NOTE:. FIGURE 4-1:. … |
| File Format / Size | PDF / 2.7 Mb |
| Document Language | English |

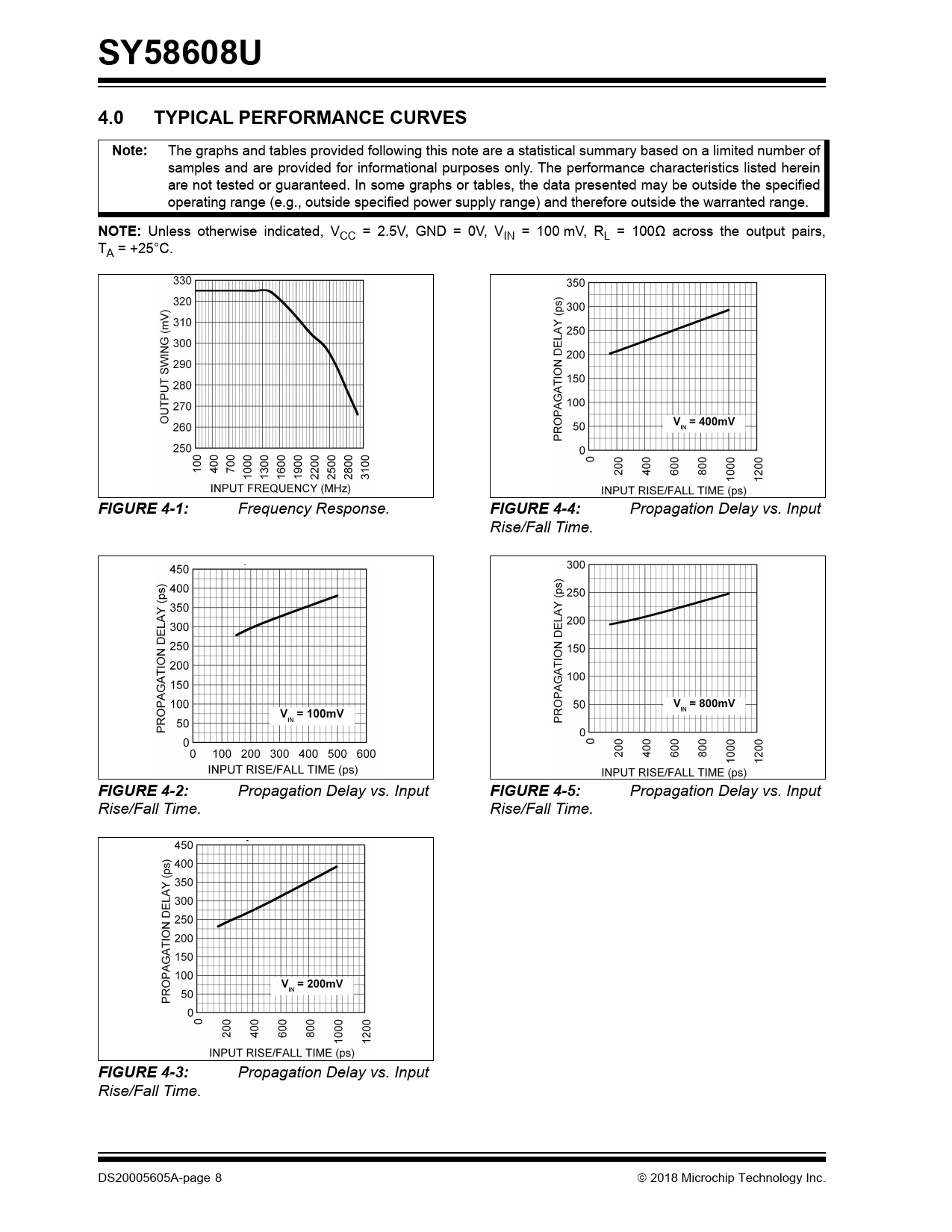

SY58608U. 4.0. TYPICAL PERFORMANCE CURVES. Note:. NOTE:. FIGURE 4-1:. FIGURE 4-4:. FIGURE 4-2:. FIGURE 4-5:. FIGURE 4-3:
Model Line for this Datasheet
Text Version of Document
SY58608U 4.0 TYPICAL PERFORMANCE CURVES Note:
The graphs and tables provided following this note are a statistical summary based on a limited number of samples and are provided for informational purposes only. The performance characteristics listed herein are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified operating range (e.g., outside specified power supply range) and therefore outside the warranted range.
NOTE:
Unless otherwise indicated, VCC = 2.5V, GND = 0V, VIN = 100 mV, RL = 100Ω across the output pairs, TA = +25°C.
FIGURE 4-1:
Frequency Response.
FIGURE 4-4:
Propagation Delay vs. Input Rise/Fall Time.
FIGURE 4-2:
Propagation Delay vs. Input
FIGURE 4-5:
Propagation Delay vs. Input Rise/Fall Time. Rise/Fall Time.
FIGURE 4-3:
Propagation Delay vs. Input Rise/Fall Time. DS20005605A-page 8 2018 Microchip Technology Inc. Document Outline 1.0 Electrical Characteristics 2.0 Functional Description 2.1 Fail-Safe Input (FSI) 2.2 Input Clock Failure Case 3.0 Timing Diagrams 4.0 Typical Performance Curves 5.0 Additive Phase Noise Plot 6.0 Input Stage 7.0 Input Interface Applications 8.0 Pin Descriptions 9.0 Packaging Information 9.1 Package Marking Information Appendix A: Revision History Product Identification System Worldwide Sales and Service
