Datasheet ADG801, ADG802 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | <0.4 Ω CMOS 1.8 V to 5.5 V SPST Switches |
| Pages / Page | 16 / 6 — ADG801/ADG802. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. … |
| File Format / Size | PDF / 299 Kb |
| Document Language | English |

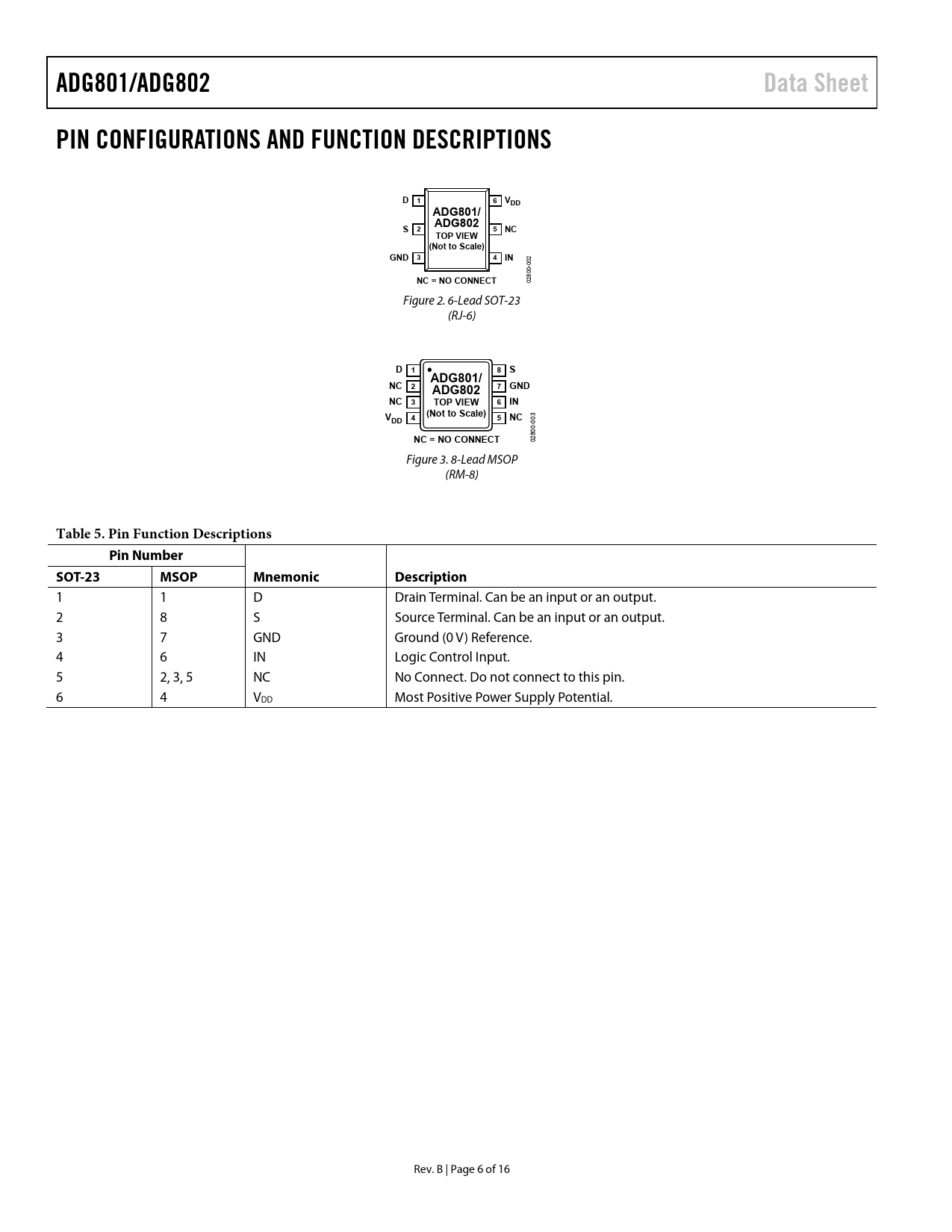

ADG801/ADG802. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. D 1. 6 VDD. ADG801/. ADG802. S 2. 5 NC. TOP VIEW. (Not to Scale)
Model Line for this Datasheet
Text Version of Document
ADG801/ADG802 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS D 1 6 VDD ADG801/ ADG802 S 2 5 NC TOP VIEW (Not to Scale) GND 3 4 IN
002
NC = NO CONNECT
02800- Figure 2. 6-Lead SOT-23 (RJ-6)
D 1 8 S ADG801/ NC 2 7 GND ADG802 NC 3 TOP VIEW 6 IN V (Not to Scale) DD 4 5 NC
003
NC = NO CONNECT
02800- Figure 3. 8-Lead MSOP (RM-8)
Table 5. Pin Function Descriptions Pin Number SOT-23 MSOP Mnemonic Description
1 1 D Drain Terminal. Can be an input or an output. 2 8 S Source Terminal. Can be an input or an output. 3 7 GND Ground (0 V) Reference. 4 6 IN Logic Control Input. 5 2, 3, 5 NC No Connect. Do not connect to this pin. 6 4 VDD Most Positive Power Supply Potential. Rev. B | Page 6 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
