Datasheet AD8428 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Low Noise, Low Gain Drift, G = 2000 Instrumentation Amplifier |
| Pages / Page | 20 / 6 — AD8428. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN 1. 8 … |
| Revision | A |
| File Format / Size | PDF / 363 Kb |
| Document Language | English |

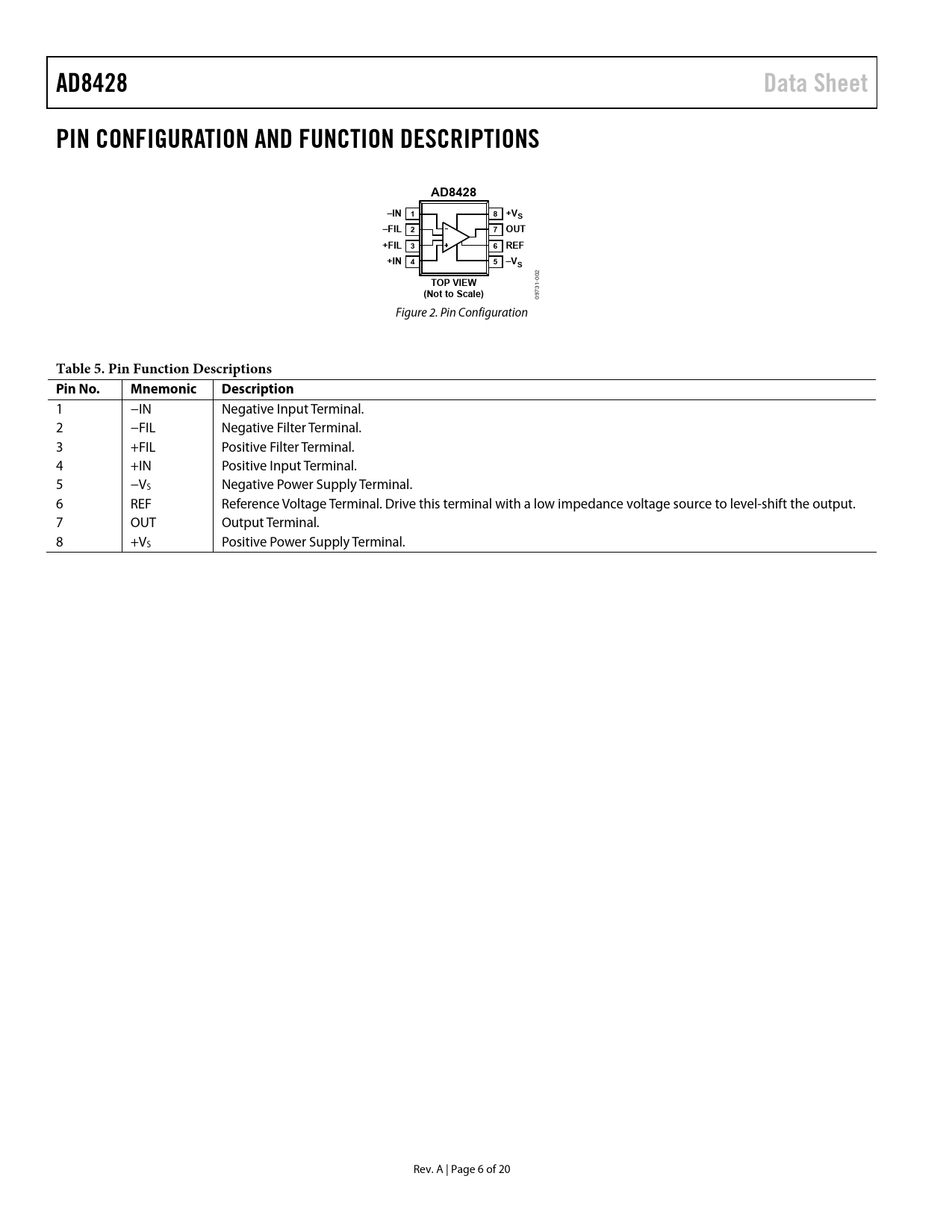

AD8428. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN 1. 8 +VS. –FIL 2. 7 OUT. +FIL 3. 6 REF. +IN 4. 5 –VS. TOP VIEW
Model Line for this Datasheet
Text Version of Document
AD8428 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS AD8428 –IN 1 8 +VS –FIL 2 7 OUT +FIL 3 6 REF +IN 4 5 –VS
2 0
TOP VIEW
0 1-
(Not to Scale)
73 09 Figure 2. Pin Configuration
Table 5. Pin Function Descriptions Pin No. Mnemonic Description
1 −IN Negative Input Terminal. 2 −FIL Negative Filter Terminal. 3 +FIL Positive Filter Terminal. 4 +IN Positive Input Terminal. 5 −VS Negative Power Supply Terminal. 6 REF Reference Voltage Terminal. Drive this terminal with a low impedance voltage source to level-shift the output. 7 OUT Output Terminal. 8 +VS Positive Power Supply Terminal. Rev. A | Page 6 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION ARCHITECTURE FILTER TERMINALS REFERENCE TERMINAL INPUT VOLTAGE RANGE LAYOUT Common-Mode Rejection Ratio over Frequency Power Supplies and Grounding Reference Pin INPUT BIAS CURRENT RETURN PATH INPUT PROTECTION IMAX Input Voltages Beyond the Rails Large Differential Input Voltage at High Gain RADIO FREQUENCY INTERFERENCE (RFI) CALCULATING THE NOISE OF THE INPUT STAGE Source Resistance Noise Voltage Noise of the Instrumentation Amplifier Current Noise of the Instrumentation Amplifier Total Noise Density Calculation APPLICATIONS INFORMATION EFFECT OF PASSIVE NETWORK ACROSS THE FILTER TERMINALS CIRCUITS USING THE FILTER TERMINALS Setting the Amplifier to Different Gains Low-Pass Filter Notch Filter Extracting the Common-Mode Voltage of the Input OUTLINE DIMENSIONS ORDERING GUIDE
