Datasheet AD8601, AD8602, AD8604 (Analog Devices) - 21
| Manufacturer | Analog Devices |
| Description | Precision CMOS, Single-Supply, Rail-to-Rail, Input/Output Wideband Operational Amplifiers |
| Pages / Page | 24 / 21 — AD8601/AD8602/AD8604. 5.10 5.00 4.90. 4.50 4.40. 6.40. BSC. 4.30. PIN 1. … |
| Revision | G |
| File Format / Size | PDF / 352 Kb |
| Document Language | English |
AD8601/AD8602/AD8604. 5.10 5.00 4.90. 4.50 4.40. 6.40. BSC. 4.30. PIN 1. 0.65 BSC. 1.05. 1.20. 1.00. MAX. 0.20. 0.80. 0.09. 0.75. 0.15. 0.60. SEATING. 0.05
Model Line for this Datasheet
- AD8601ARTZ-R2 AD8601ARTZ-REEL AD8601ARTZ-REEL7 AD8601WARTZ-R7 AD8601WARTZ-RL AD8601WDRTZ-REEL AD8601WDRTZ-REEL7
Text Version of Document
AD8601/AD8602/AD8604 5.10 5.00 4.90 14 8 4.50 4.40 6.40 BSC 4.30 1 7 PIN 1 0.65 BSC 1.05 1.20 1.00 MAX 0.20 0.80 0.09 0.75 0.15 8° 0.60 SEATING 0.05 0° 0.30 0.45 PLANE COPLANARITY 0.19 0.10 -A 08 19 COMPLIANT TO JEDEC STANDARDS MO-153-AB-1 06

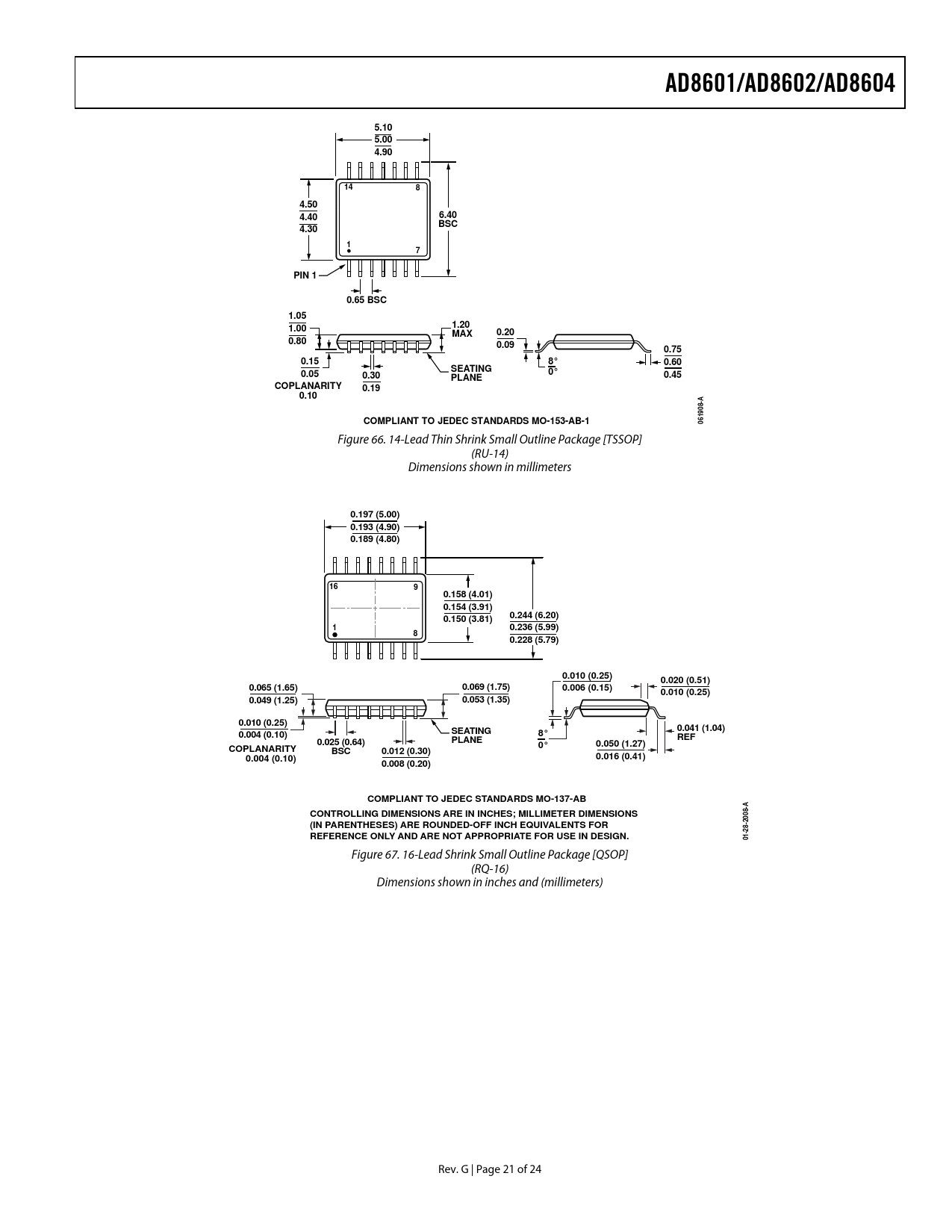

Figure 66. 14-Lead Thin Shrink Small Outline Package [TSSOP] (RU-14) Dimensions shown in millimeters
0.197 (5.00) 0.193 (4.90) 0.189 (4.80) 16 9 0.158 (4.01) 0.154 (3.91) 0.244 (6.20) 0.150 (3.81) 1 0.236 (5.99) 8 0.228 (5.79) 0.010 (0.25) 0.020 (0.51) 0.065 (1.65) 0.069 (1.75) 0.006 (0.15) 0.010 (0.25) 0.049 (1.25) 0.053 (1.35) 0.010 (0.25) SEATING 0.041 (1.04) 0.004 (0.10) 8° REF 0.025 (0.64) PLANE 0.050 (1.27) 0° COPLANARITY BSC 0.012 (0.30) 0.016 (0.41) 0.004 (0.10) 0.008 (0.20) COMPLIANT TO JEDEC STANDARDS MO-137-AB CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS 8-A (IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR -200 REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 01-28
Figure 67. 16-Lead Shrink Small Outline Package [QSOP] (RQ-16) Dimensions shown in inches and (millimeters) Rev. G | Page 21 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION RAIL-TO-RAIL INPUT STAGE INPUT OVERVOLTAGE PROTECTION OVERDRIVE RECOVERY POWER-ON TIME USING THE AD8602 IN HIGH SOURCE IMPEDANCE APPLICATIONS HIGH SIDE AND LOW SIDE, PRECISION CURRENT MONITORING USING THE AD8601 IN SINGLE-SUPPLY, MIXED SIGNAL APPLICATIONS PC100 COMPLIANCE FOR COMPUTER AUDIO APPLICATIONS SPICE MODEL OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
