Diodes Incorporated announced the 74LVC1G3157. This single-pole, double-throw analog switch is designed for multiplexing digital or analog signals. Its low on-state resistance ensures high integrity when routing audio signals, making this switching solution well-suited for a wide range of advanced consumer electronics from cell phones, tablets and e-readers to personal music players, hand-held games, satellite navigation and other audio equipment.
Featuring an on-state resistance of less than 6 Ω when operated with a 5 V supply, the 74LVC1G3157 enables the routing of input audio signals and can even support output routing in low-power applications. Its typical off-state leakage current of 20 nA provides a high degree of isolation, allowing components such as resistors and capacitors to be switched in or out of the signal path for programmable filters or different gain configurations.
 |

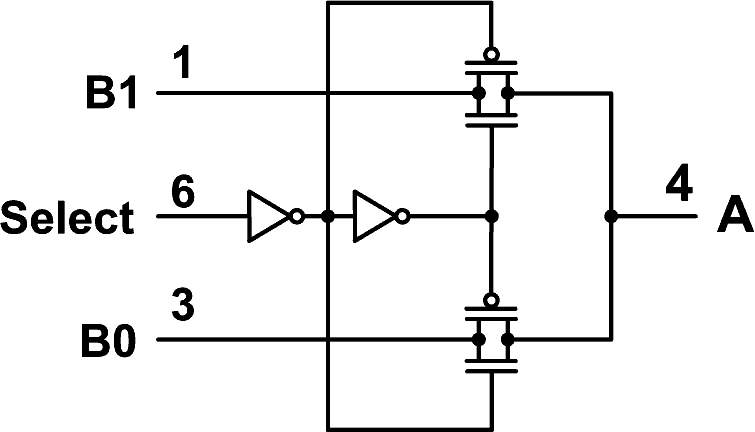

| The 74LVC1G3157 Simplified Schematic. |
The 74LVC1G3157 is designed for a 1.65 V to 5.5 V power supply range and can handle signal amplitudes between VCC and ground. The control input can be up to 5.5 V regardless of VCC and the control pin includes hysteresis to allow for slower input rise and fall times. The X2-DFN1410 package occupies just 1.4 mm2 of board space, allowing designers to use multiple parts to route multiple signals while the 0.5 mm lead pitch eases board assembly. This device is also available in SOT363 package.
