Prototype board Olimex LPC-P2129

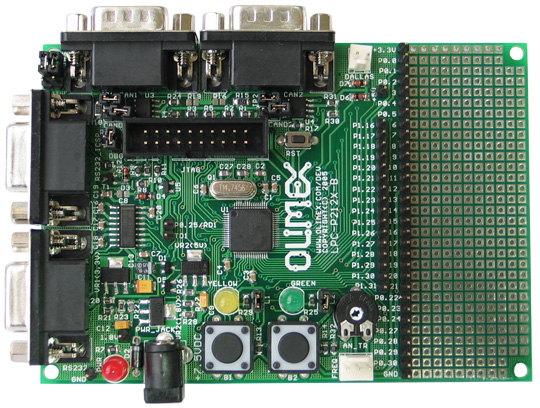

LPC-P2129 - Prototype board for LPC2129 ARM microcontroller.
Detailed Description
FEATURES:
- MCU: LPC2129 16/32 bit ARM7TDMI-S with 256K Bytes Program Flash, 16K Bytes RAM, RTC,4×10 bit ADC 2.44 uS, 2×CAN, 2×UARTs, I2C, SPI, 2×32bit TIMERS, 7×CCR, 6×PWM, WDT, 5V tolerant I/O, up to 60MHz operation
- standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
- three on board voltage regulators 1.8V, 3.3V and 5V with up to 800mA current
- single power supply: +7-9VDC required
- power supply status LED
- power supply filtering capacitor
- two channel RS232 interface with two RS232 SUB-D 9 pin connectors
- two channel CAN interface with drivers and two SUB-D 9 pin connectors
- iButton interface circuit
- Frequency input connector
- two buttons
- two status LEDs
- Potentiometer connected to AIN
- RESET circuit with exterman control of Philips ISP utility via RS232
- RESET button
- DBG jumper for JTAG enable
- BSL jumper for bootloader enable
- JRST jumper for enable/disable external RESET vontrol by RS232
- 10 Mhz crystal
- extension headers for all uC ports
- PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
- Dimensions: 115×80 mm (4.5×3.2")

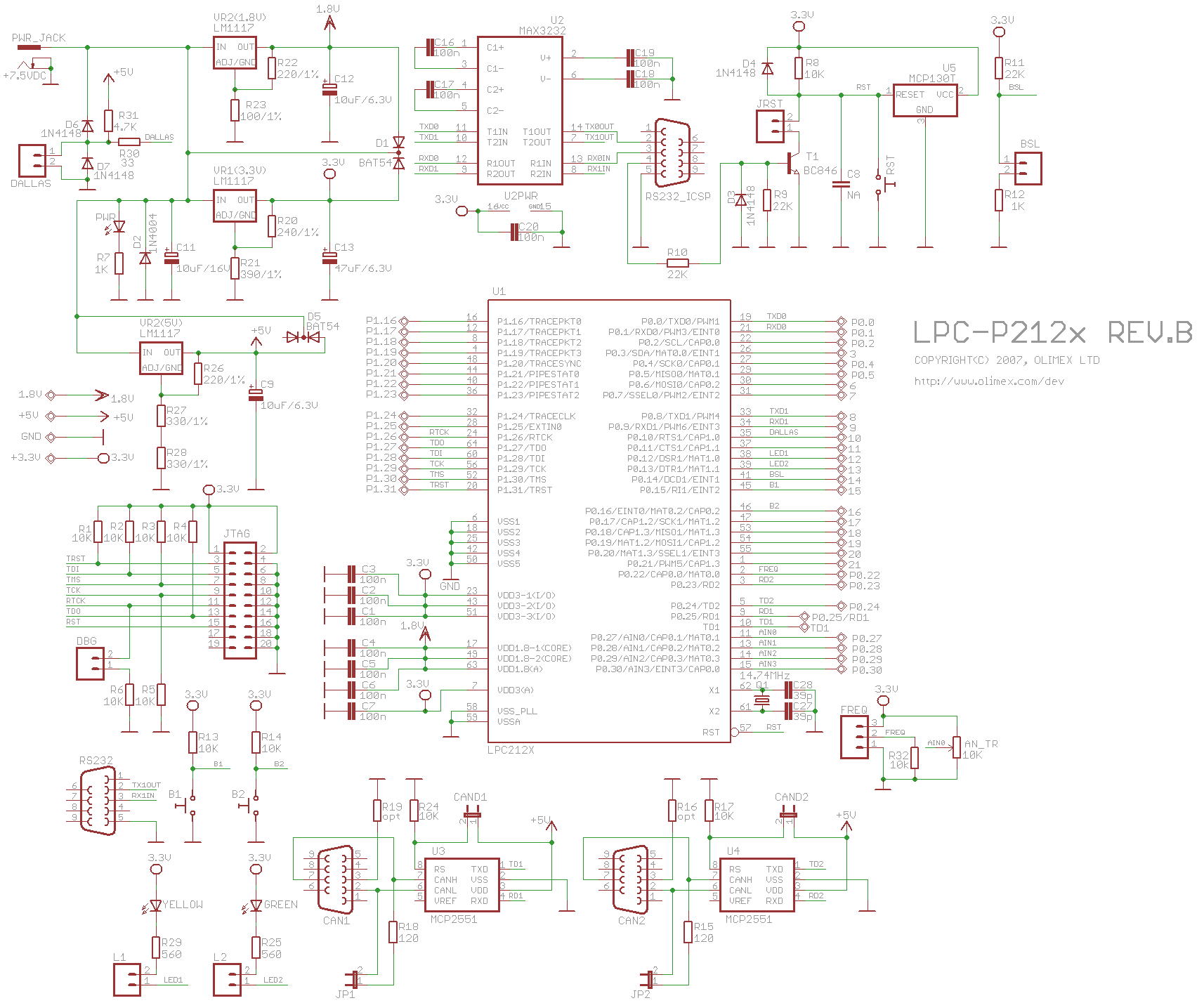

Schematic diagram LPC-P2129
