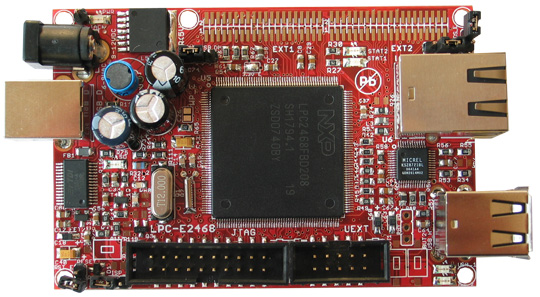

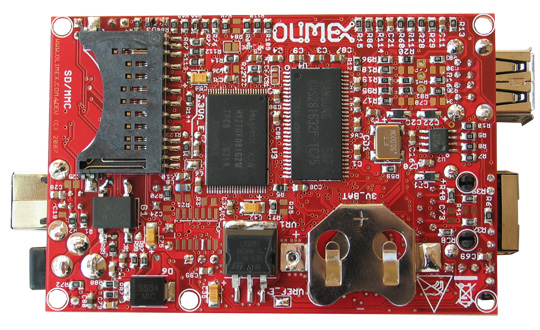

Development prototype board Olimex LPC-E2468
LPC-E2468 - uC LINUX development prototype board with LPC2468 USB, Ethernet, SD/MMC in credit card format.
Detailed Description
FEATURES:
- MCU: LPC2468
- 16MB SDRAM
- 128 MB NAN Flash
- standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
- Ethernet 100MBit
- 2×USB hosts
- USB-to-RS232 converter device connected to LPC2468 UART
- SD/MMC card connector
- UEXT connector with I2C, SPI, RS232 and power supply for connecting add-on modules like RF link, MP3, etc available from Olimex
- trimpot connected to ADC
- RESET circuit with external control of Philips ISP utility via RS232 port
- two USER button
- RESET Button
- two on board voltage regulators 3V and 5V with up to 800mA current
- Extension port connector for many of microcontrollers pins
- single power supply: External power supply, USB or JTAG connector
- Battery holder and connector for the RTC
- power supply led
- FR-4, 1.5 mm, red soldermask, component print
- Dimensions: 90×60mm (3.54 × 2.36")

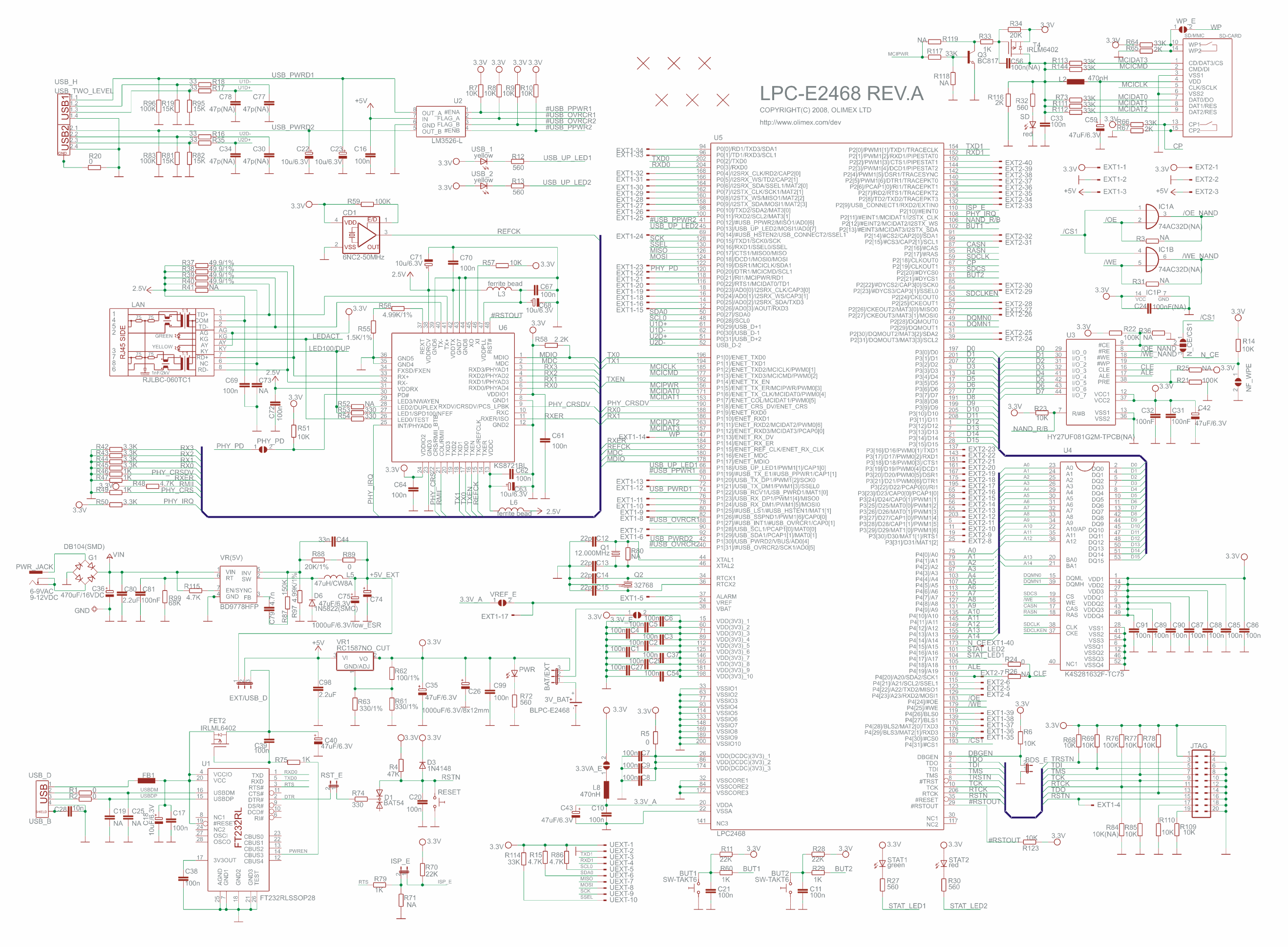

Schematic diagram LPC-E2468 development board
Other Names:
LPCE2468, LPC E2468
