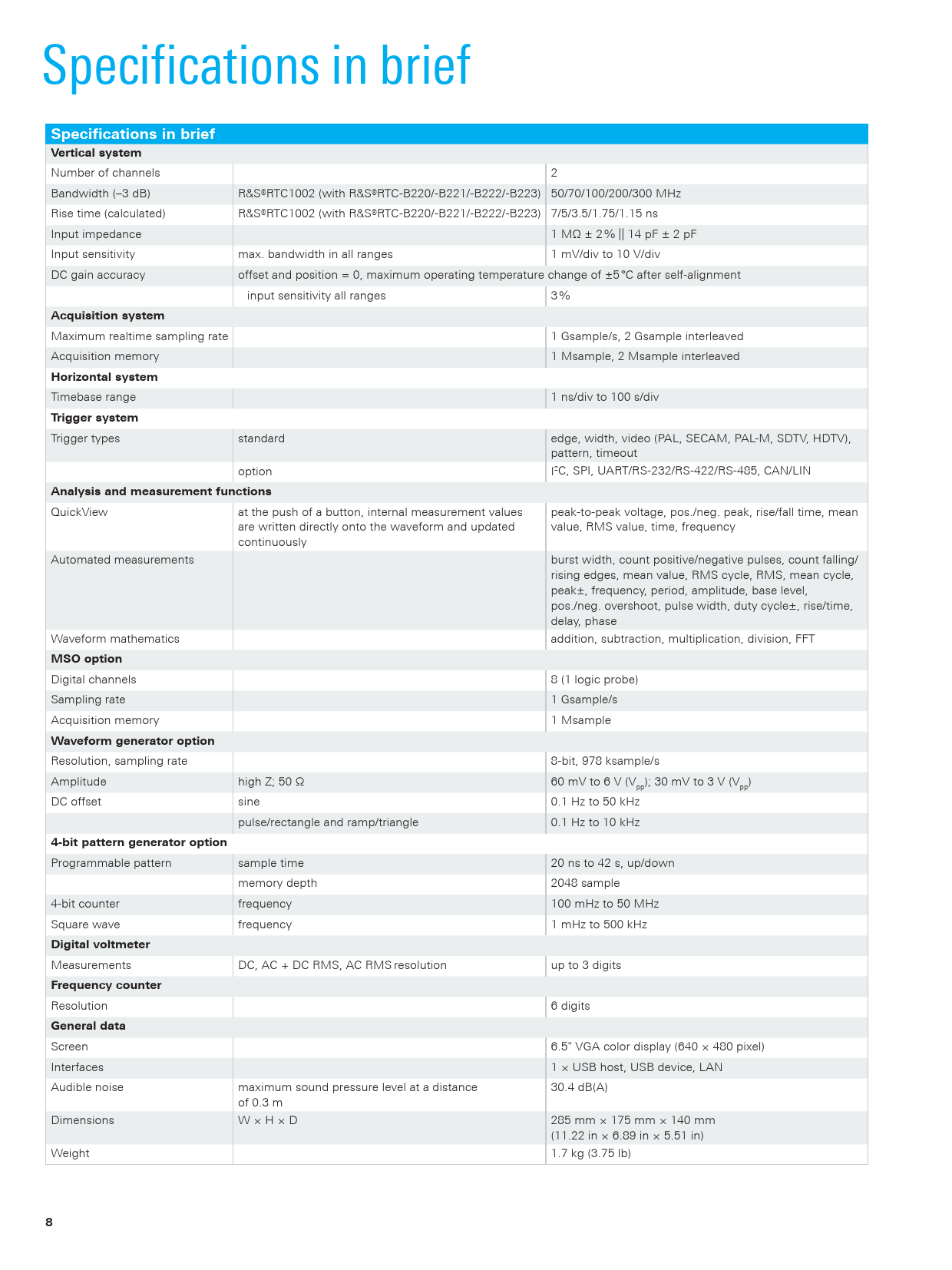

Specifications in brief Vertical system. Acquisition system. Horizontal system. Trigger system
Text Version of Document
Specifications in brief
Specifications in brief Vertical system
Number of channels 2 Bandwidth (–3 dB) R&S®RTC1002 (with R&S®RTC-B220/-B221/-B222/-B223) 50/70/100/200/300 MHz Rise time (calculated) R&S®RTC1002 (with R&S®RTC-B220/-B221/-B222/-B223) 7/5/3.5/1.75/1.15 ns Input impedance 1 MΩ ± 2 % || 14 pF ± 2 pF Input sensitivity max. bandwidth in all ranges 1 mV/div to 10 V/div DC gain accuracy offset and position = 0, maximum operating temperature change of ±5 °C after self-alignment input sensitivity all ranges 3 %
Acquisition system
Maximum realtime sampling rate 1 Gsample/s, 2 Gsample interleaved Acquisition memory 1 Msample, 2 Msample interleaved
Horizontal system
Timebase range 1 ns/div to 100 s/div
Trigger system
Trigger types standard edge, width, video (PAL, SECAM, PAL-M, SDTV, HDTV), pattern, timeout option I2C, SPI, UART/RS-232/RS-422/RS-485, CAN/LIN
Analysis and measurement functions
QuickView at the push of a button, internal measurement values peak-to-peak voltage, pos./neg. peak, rise/fall time, mean are written directly onto the waveform and updated value, RMS value, time, frequency continuously Automated measurements burst width, count positive/negative pulses, count falling/ rising edges, mean value, RMS cycle, RMS, mean cycle, peak±, frequency, period, amplitude, base level, pos./neg. overshoot, pulse width, duty cycle±, rise/time, delay, phase Waveform mathematics addition, subtraction, multiplication, division, FFT
MSO option
Digital channels 8 (1 logic probe) Sampling rate 1 Gsample/s Acquisition memory 1 Msample
Waveform generator option
Resolution, sampling rate 8-bit, 978 ksample/s Amplitude high Z; 50 Ω 60 mV to 6 V (V ); 30 mV to 3 V (V ) pp pp DC offset sine 0.1 Hz to 50 kHz pulse/rectangle and ramp/triangle 0.1 Hz to 10 kHz
4-bit pattern generator option
Programmable pattern sample time 20 ns to 42 s, up/down memory depth 2048 sample 4-bit counter frequency 100 mHz to 50 MHz Square wave frequency 1 mHz to 500 kHz
Digital voltmeter
Measurements DC, AC + DC RMS, AC RMS resolution up to 3 digits
Frequency counter
Resolution 6 digits
General data
Screen 6.5" VGA color display (640 × 480 pixel) Interfaces 1 × USB host, USB device, LAN Audible noise maximum sound pressure level at a distance 30.4 dB(A) of 0.3 m Dimensions W × H × D 285 mm × 175 mm × 140 mm (11.22 in × 6.89 in × 5.51 in) Weight 1.7 kg (3.75 lb)
