Digital voltmeter. Component tester. Frequency analysis mode. Mask test mode. Rohde & Schwarz
Text Version of Document

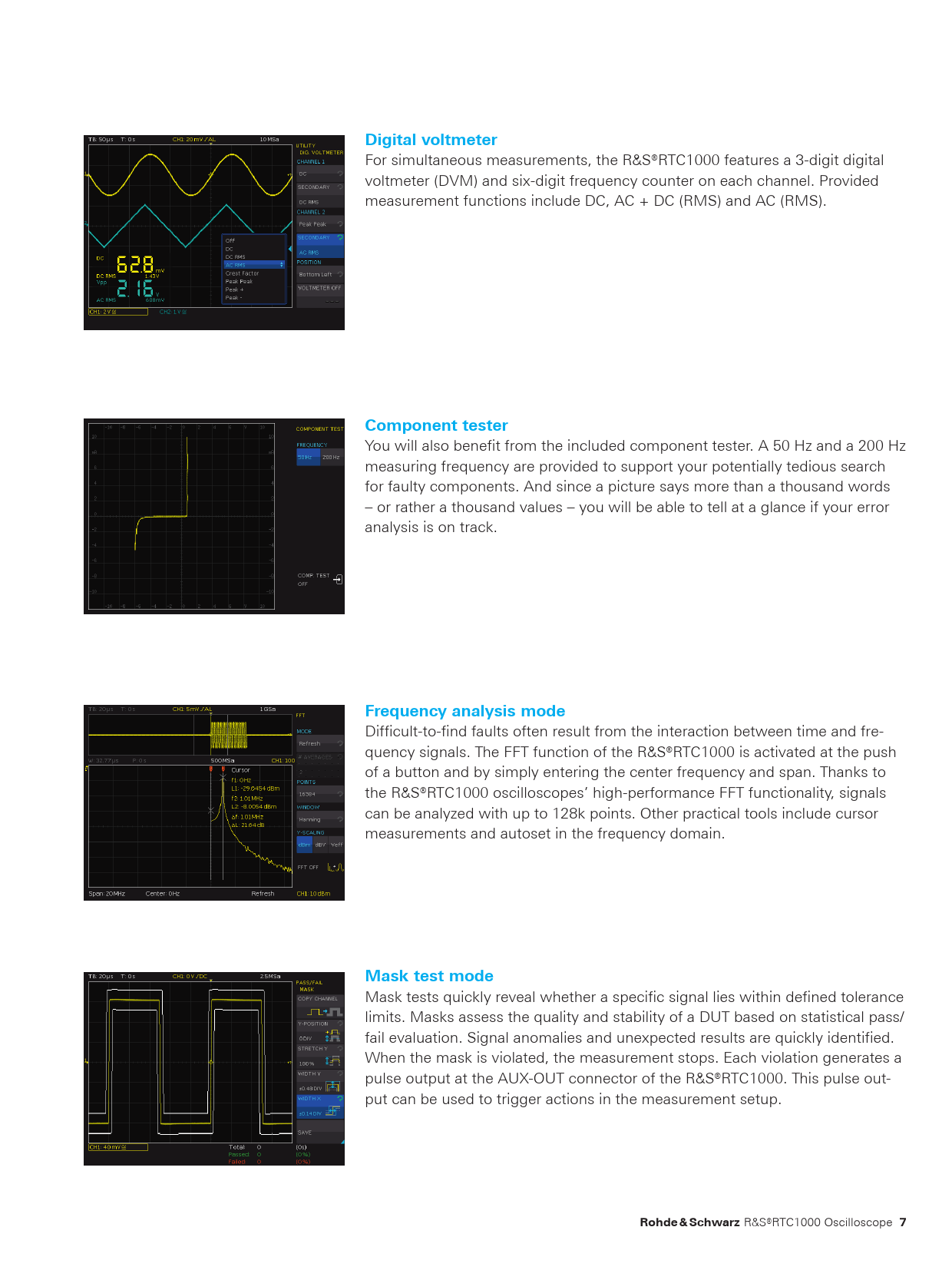

Digital voltmeter
For simultaneous measurements, the R&S®RTC1000 features a 3-digit digital voltmeter (DVM) and six-digit frequency counter on each channel. Provided measurement functions include DC, AC + DC (RMS) and AC (RMS).
Component tester
You will also benefit from the included component tester. A 50 Hz and a 200 Hz measuring frequency are provided to support your potentially tedious search for faulty components. And since a picture says more than a thousand words – or rather a thousand values – you will be able to tell at a glance if your error analysis is on track.
Frequency analysis mode
Difficult-to-find faults often result from the interaction between time and fre- quency signals. The FFT function of the R&S®RTC1000 is activated at the push of a button and by simply entering the center frequency and span. Thanks to the R&S®RTC1000 oscilloscopes’ high-performance FFT functionality, signals can be analyzed with up to 128k points. Other practical tools include cursor measurements and autoset in the frequency domain.
Mask test mode
Mask tests quickly reveal whether a specific signal lies within defined tolerance limits. Masks assess the quality and stability of a DUT based on statistical pass/ fail evaluation. Signal anomalies and unexpected results are quickly identified. When the mask is violated, the measurement stops. Each violation generates a pulse output at the AUX-OUT connector of the R&S®RTC1000. This pulse out- put can be used to trigger actions in the measurement setup.
Rohde & Schwarz
R&S®RTC1000 Oscilloscope
7
RTC1000_bro_en_3607-4287-12_v0400.indd 7 10.01.2018 12:25:18
