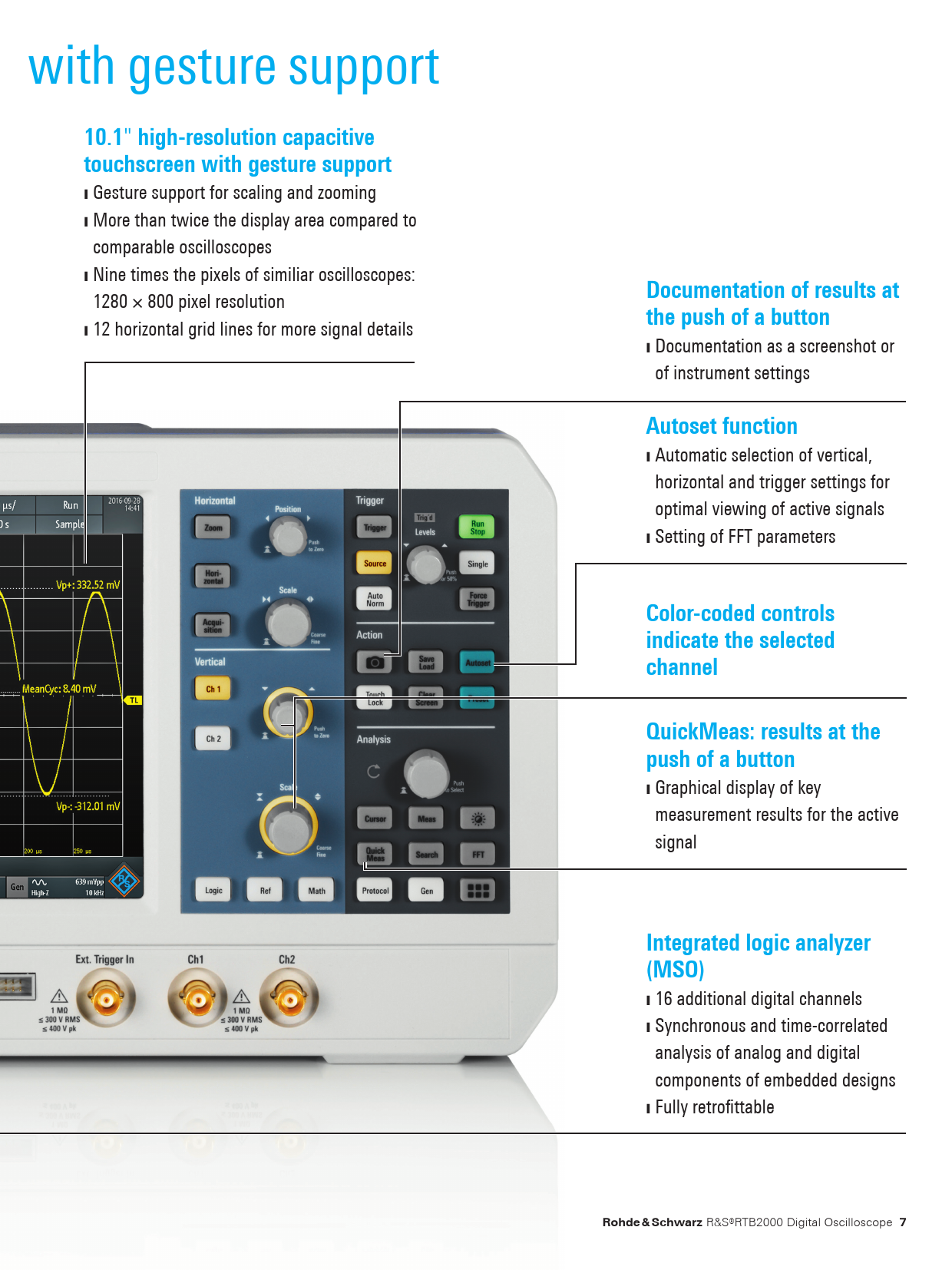

10.1. high-resolution capacitive. touchscreen with gesture support. Documentation of results at. the push of a button
Text Version of Document
10.1" high-resolution capacitive touchscreen with gesture support
10.1
"
high-resolution capacitive touchscreen with gesture support
❙Gesture support for scaling and zooming ❙More than twice the display area compared to comparable oscilloscopes ❙Nine times the pixels of similiar oscilloscopes:
Documentation of results at
1280 × 800 pixel resolution
the push of a button
❙12 horizontal grid lines for more signal details ❙Documentation as a screenshot or of instrument settings
Autoset function
❙Automatic selection of vertical, horizontal and trigger settings for optimal viewing of active signals ❙Setting of FFT parameters
Color-coded controls indicate the selected channel QuickMeas: results at the push of a button
❙Graphical display of key measurement results for the active signal
Integrated logic analyzer (MSO)
❙16 additional digital channels ❙Synchronous and time-correlated analysis of analog and digital components of embedded designs ❙Fully retrofittable
Rohde & Schwarz
R&S®RTB2000 Digital Oscilloscope
7
