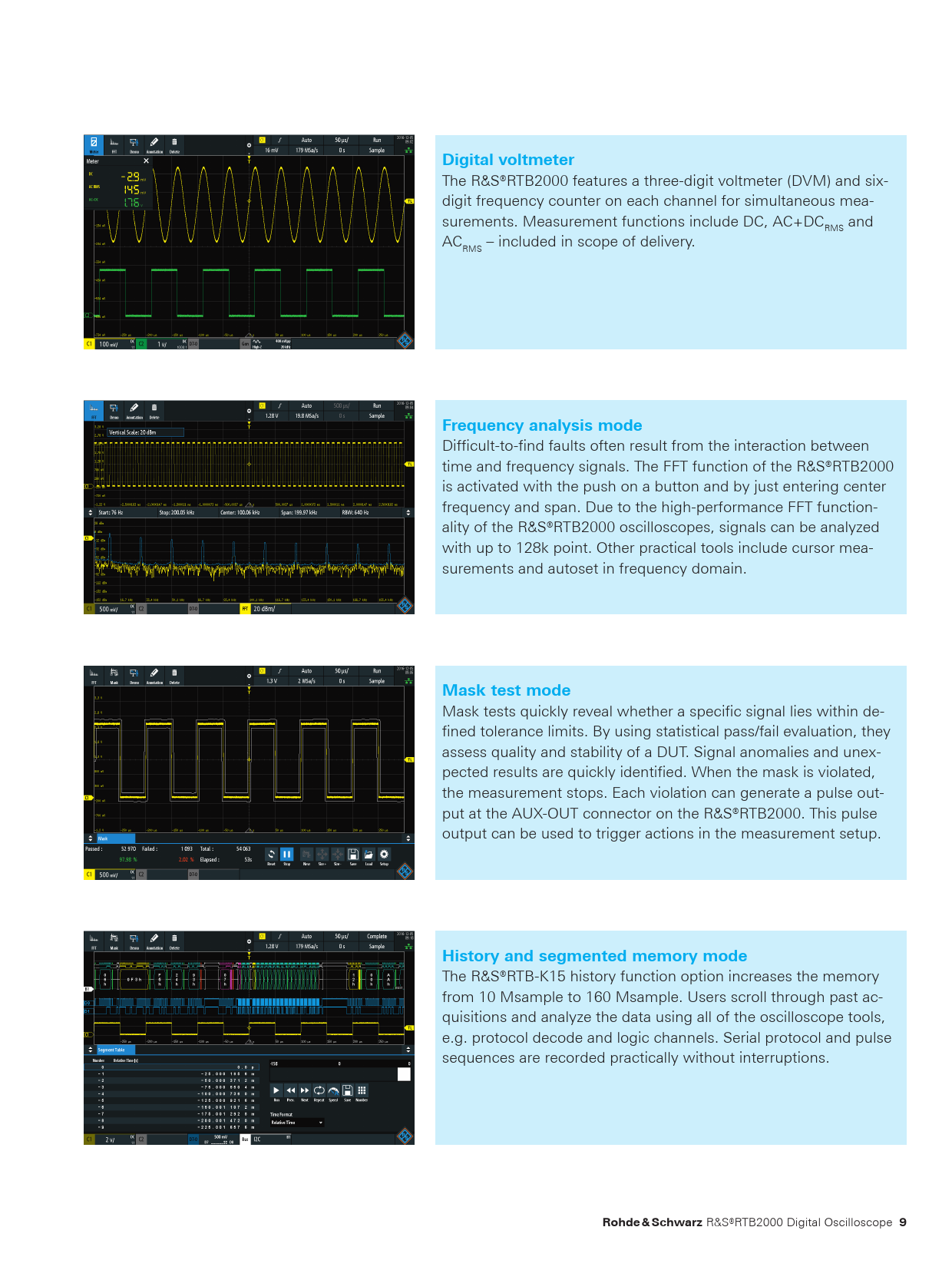

Digital voltmeter. Frequency analysis mode. Mask test mode. History and segmented memory mode. Rohde & Schwarz
Text Version of Document
Digital voltmeter
The R&S®RTB2000 features a three-digit voltmeter (DVM) and six- digit frequency counter on each channel for simultaneous mea- surements. Measurement functions include DC, AC+DC and RMS AC – included in scope of delivery. RMS
Frequency analysis mode
Difficult-to-find faults often result from the interaction between time and frequency signals. The FFT function of the R&S®RTB2000 is activated with the push on a button and by just entering center frequency and span. Due to the high-performance FFT function- ality of the R&S®RTB2000 oscilloscopes, signals can be analyzed with up to 128k point. Other practical tools include cursor mea- surements and autoset in frequency domain.
Mask test mode
Mask tests quickly reveal whether a specific signal lies within de- fined tolerance limits. By using statistical pass/fail evaluation, they assess quality and stability of a DUT. Signal anomalies and unex- pected results are quickly identified. When the mask is violated, the measurement stops. Each violation can generate a pulse out- put at the AUX-OUT connector on the R&S®RTB2000. This pulse output can be used to trigger actions in the measurement setup.
History and segmented memory mode
The R&S®RTB-K15 history function option increases the memory from 10 Msample to 160 Msample. Users scroll through past ac- quisitions and analyze the data using all of the oscilloscope tools, e.g. protocol decode and logic channels. Serial protocol and pulse sequences are recorded practically without interruptions.
