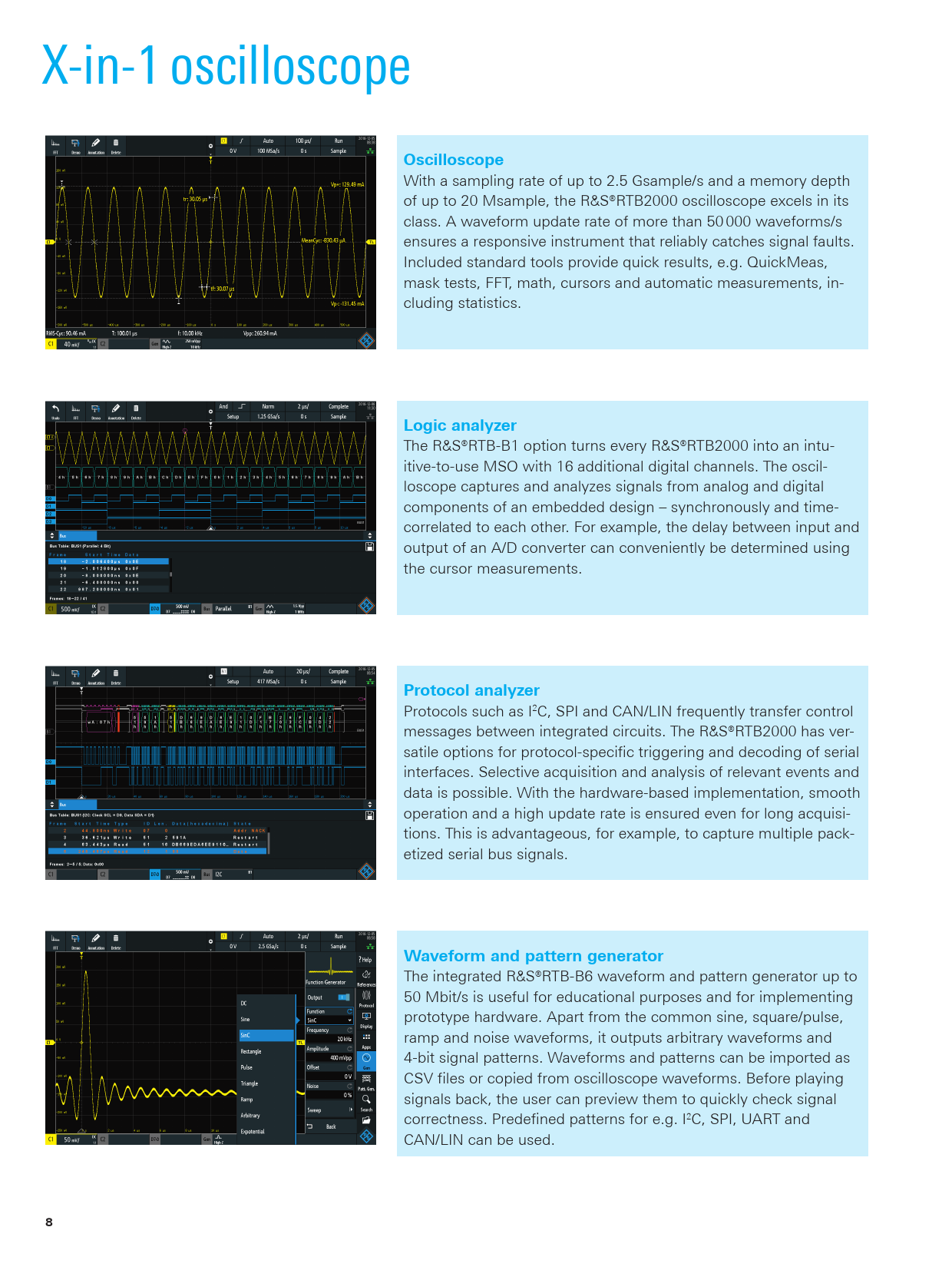

Oscilloscope. Logic analyzer. Protocol analyzer. Waveform and pattern generator
Text Version of Document
X-in-1 oscilloscope
Oscilloscope
With a sampling rate of up to 2.5 Gsample/s and a memory depth of up to 20 Msample, the R&S®RTB2000 oscilloscope excels in its class. A waveform update rate of more than 50 000 waveforms/s ensures a responsive instrument that reliably catches signal faults. Included standard tools provide quick results, e.g. QuickMeas, mask tests, FFT, math, cursors and automatic measurements, in- cluding statistics.
Logic analyzer
The R&S®RTB-B1 option turns every R&S®RTB2000 into an intu- itive-to-use MSO with 16 additional digital channels. The oscil- loscope captures and analyzes signals from analog and digital components of an embedded design – synchronously and time- correlated to each other. For example, the delay between input and output of an A/D converter can conveniently be determined using the cursor measurements.
Protocol analyzer
Protocols such as I2C, SPI and CAN/LIN frequently transfer control messages between integrated circuits. The R&S®RTB2000 has ver- satile options for protocol-specific triggering and decoding of serial interfaces. Selective acquisition and analysis of relevant events and data is possible. With the hardware-based implementation, smooth operation and a high update rate is ensured even for long acquisi- tions. This is advantageous, for example, to capture multiple pack- etized serial bus signals.
Waveform and pattern generator
The integrated R&S®RTB-B6 waveform and pattern generator up to 50 Mbit/s is useful for educational purposes and for implementing prototype hardware. Apart from the common sine, square/pulse, ramp and noise waveforms, it outputs arbitrary waveforms and 4-bit signal patterns. Waveforms and patterns can be imported as CSV files or copied from oscilloscope waveforms. Before playing signals back, the user can preview them to quickly check signal correctness. Predefined patterns for e.g. I2C, SPI, UART and CAN/LIN can be used.
