Version 03.02, March 2018

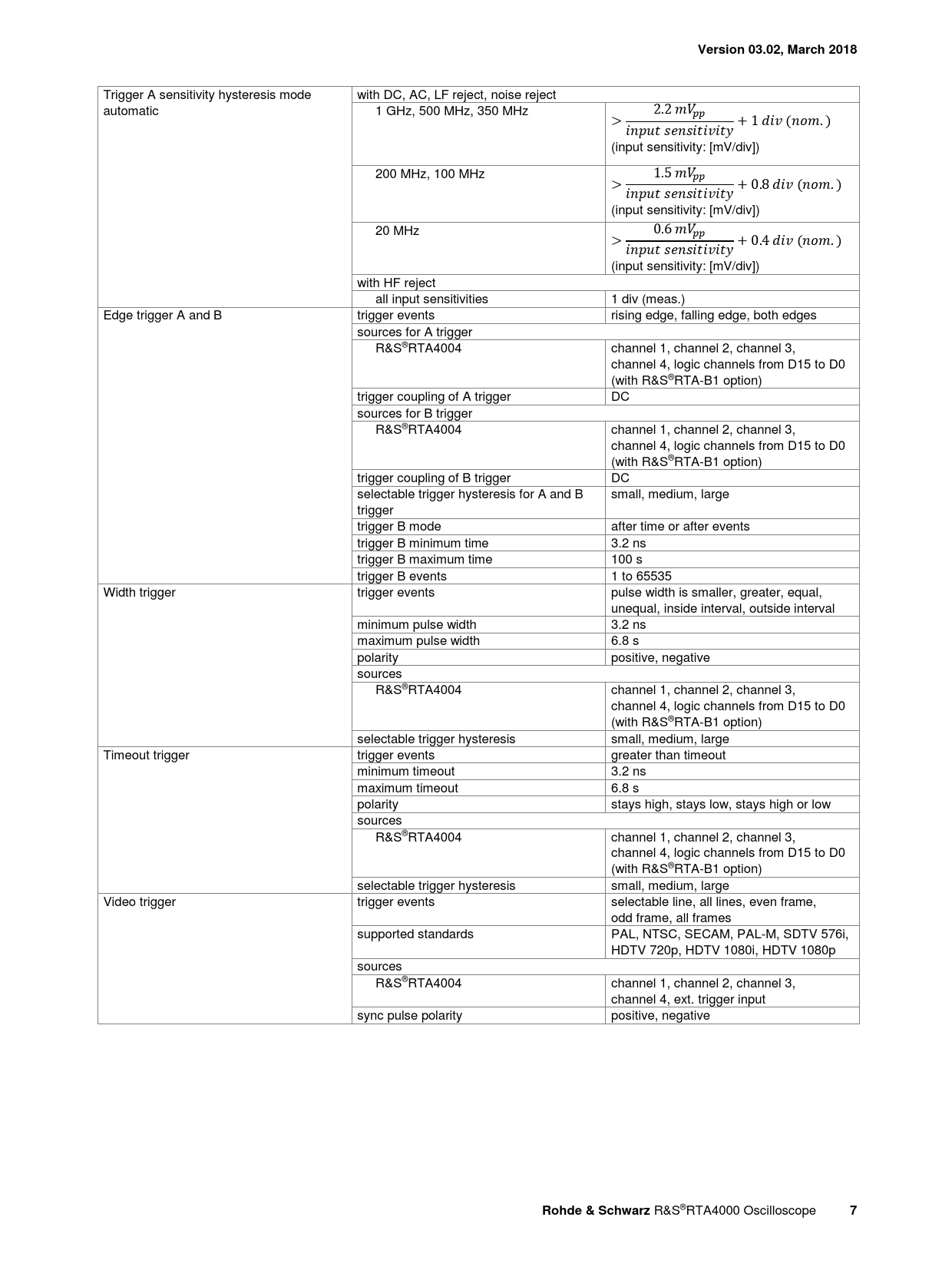

Trigger A sensitivity hysteresis mode with DC, AC, LF reject, noise reject automatic 1 GHz, 500 MHz, 350 MHz 2.2 𝑚𝑉𝑝𝑝 > + 1 𝑑𝑖𝑣 (𝑛𝑜𝑚. ) 𝑖𝑛𝑝𝑢𝑡 𝑠𝑒𝑛𝑠𝑖𝑡𝑖𝑣𝑖𝑡𝑦 (input sensitivity: [mV/div]) 200 MHz, 100 MHz 1.5 𝑚𝑉𝑝𝑝 > + 0.8 𝑑𝑖𝑣 (𝑛𝑜𝑚. ) 𝑖𝑛𝑝𝑢𝑡 𝑠𝑒𝑛𝑠𝑖𝑡𝑖𝑣𝑖𝑡𝑦 (input sensitivity: [mV/div]) 20 MHz 0.6 𝑚𝑉𝑝𝑝 > + 0.4 𝑑𝑖𝑣 (𝑛𝑜𝑚. ) 𝑖𝑛𝑝𝑢𝑡 𝑠𝑒𝑛𝑠𝑖𝑡𝑖𝑣𝑖𝑡𝑦 (input sensitivity: [mV/div]) with HF reject all input sensitivities 1 div (meas.) Edge trigger A and B trigger events rising edge, falling edge, both edges sources for A trigger R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, logic channels from D15 to D0 (with R&S®RTA-B1 option) trigger coupling of A trigger DC sources for B trigger R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, logic channels from D15 to D0 (with R&S®RTA-B1 option) trigger coupling of B trigger DC selectable trigger hysteresis for A and B small, medium, large trigger trigger B mode after time or after events trigger B minimum time 3.2 ns trigger B maximum time 100 s trigger B events 1 to 65535 Width trigger trigger events pulse width is smaller, greater, equal, unequal, inside interval, outside interval minimum pulse width 3.2 ns maximum pulse width 6.8 s polarity positive, negative sources R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, logic channels from D15 to D0 (with R&S®RTA-B1 option) selectable trigger hysteresis small, medium, large Timeout trigger trigger events greater than timeout minimum timeout 3.2 ns maximum timeout 6.8 s polarity stays high, stays low, stays high or low sources R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, logic channels from D15 to D0 (with R&S®RTA-B1 option) selectable trigger hysteresis small, medium, large Video trigger trigger events selectable line, all lines, even frame, odd frame, all frames supported standards PAL, NTSC, SECAM, PAL-M, SDTV 576i, HDTV 720p, HDTV 1080i, HDTV 1080p sources R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, ext. trigger input sync pulse polarity positive, negative
Rohde & Schwarz
R&S®RTA4000 Oscilloscope
7
Trigger A sensitivity hysteresis mode with DC, AC, LF reject, noise reject automatic 1 GHz, 500 MHz, 350 MHz 2.2 𝑚𝑉𝑝𝑝 > + 1 𝑑𝑖𝑣 (𝑛𝑜𝑚. ) 𝑖𝑛𝑝𝑢𝑡 𝑠𝑒𝑛𝑠𝑖𝑡𝑖𝑣𝑖𝑡𝑦 (input sensitivity: [mV/div]) 200 MHz, 100 MHz 1.5 𝑚𝑉𝑝𝑝 > + 0.8 𝑑𝑖𝑣 (𝑛𝑜𝑚. ) 𝑖𝑛𝑝𝑢𝑡 𝑠𝑒𝑛𝑠𝑖𝑡𝑖𝑣𝑖𝑡𝑦 (input sensitivity: [mV/div]) 20 MHz 0.6 𝑚𝑉𝑝𝑝 > + 0.4 𝑑𝑖𝑣 (𝑛𝑜𝑚. ) 𝑖𝑛𝑝𝑢𝑡 𝑠𝑒𝑛𝑠𝑖𝑡𝑖𝑣𝑖𝑡𝑦 (input sensitivity: [mV/div]) with HF reject all input sensitivities 1 div (meas.) Edge trigger A and B trigger events rising edge, falling edge, both edges sources for A trigger R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, logic channels from D15 to D0 (with R&S®RTA-B1 option) trigger coupling of A trigger DC sources for B trigger R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, logic channels from D15 to D0 (with R&S®RTA-B1 option) trigger coupling of B trigger DC selectable trigger hysteresis for A and B small, medium, large trigger trigger B mode after time or after events trigger B minimum time 3.2 ns trigger B maximum time 100 s trigger B events 1 to 65535 Width trigger trigger events pulse width is smaller, greater, equal, unequal, inside interval, outside interval minimum pulse width 3.2 ns maximum pulse width 6.8 s polarity positive, negative sources R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, logic channels from D15 to D0 (with R&S®RTA-B1 option) selectable trigger hysteresis small, medium, large Timeout trigger trigger events greater than timeout minimum timeout 3.2 ns maximum timeout 6.8 s polarity stays high, stays low, stays high or low sources R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, logic channels from D15 to D0 (with R&S®RTA-B1 option) selectable trigger hysteresis small, medium, large Video trigger trigger events selectable line, all lines, even frame, odd frame, all frames supported standards PAL, NTSC, SECAM, PAL-M, SDTV 576i, HDTV 720p, HDTV 1080i, HDTV 1080p sources R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, ext. trigger input sync pulse polarity positive, negative
Rohde & Schwarz
R&S®RTA4000 Oscilloscope
7
