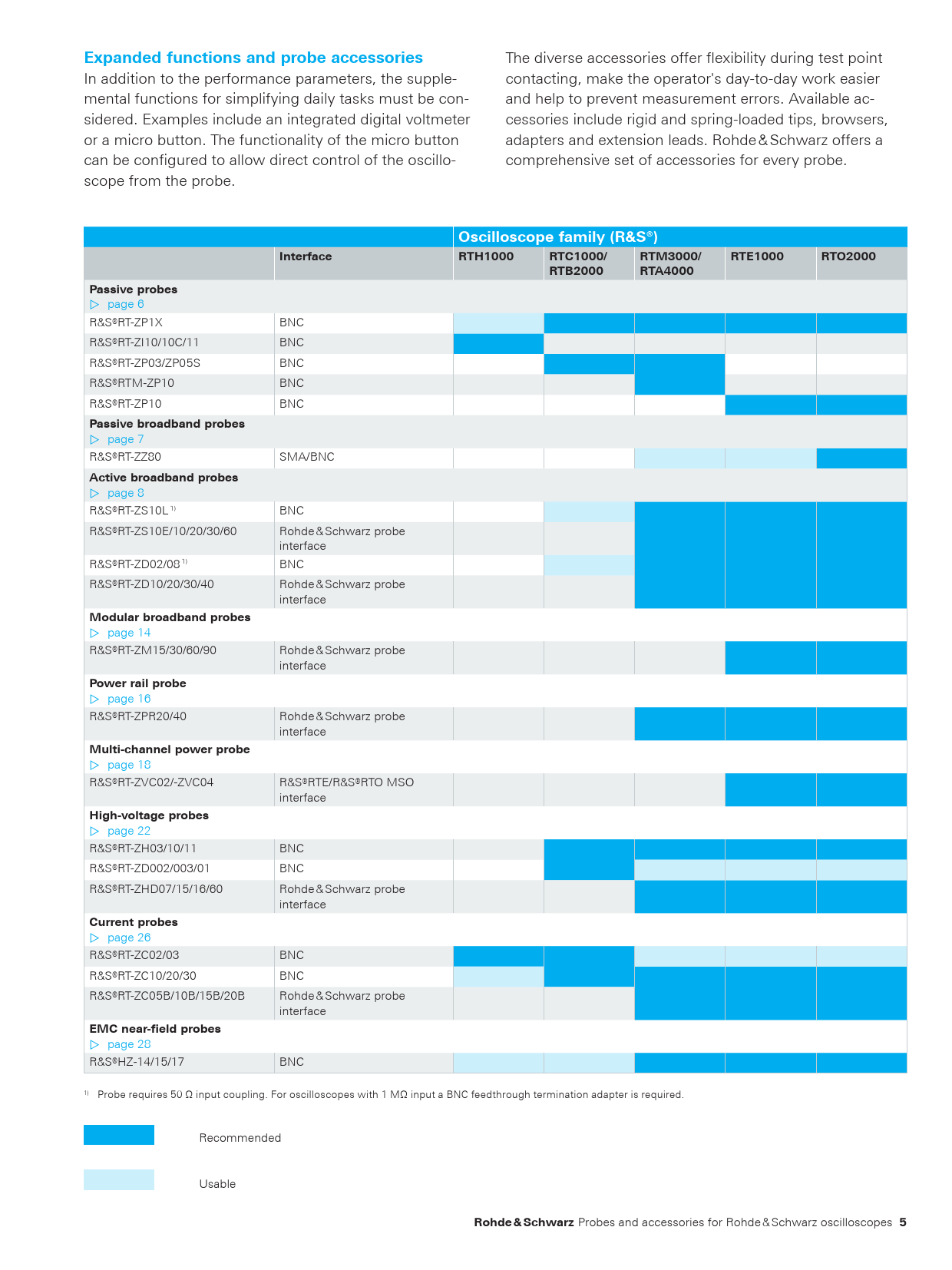

Expanded functions and probe accessories
The diverse accessories offer flexibility during test point In addition to the performance parameters, the supple- contacting, make the operator's day-to-day work easier mental functions for simplifying daily tasks must be con- and help to prevent measurement errors. Available ac- sidered. Examples include an integrated digital voltmeter cessories include rigid and spring-loaded tips, browsers, or a micro button. The functionality of the micro button adapters and extension leads. Rohde & Schwarz offers a can be configured to allow direct control of the oscillo- comprehensive set of accessories for every probe. scope from the probe.
Oscilloscope family (R&S®) Interface RTH1000 RTC1000/ RTM3000/ RTE1000 RTO2000 RTB2000 RTA4000 Passive probes
▷ page 6 R&S®RT-ZP1X BNC R&S®RT-ZI10/10C/11 BNC R&S®RT-ZP03/ZP05S BNC R&S®RTM-ZP10 BNC R&S®RT-ZP10 BNC
Passive broadband probes
▷ page 7 R&S®RT-ZZ80 SMA/BNC
Active broadband probes
▷ page 8 R&S®RT-ZS10L 1) BNC R&S®RT-ZS10E/10/20/30/60 Rohde & Schwarz probe interface R&S®RT-ZD02/08 1) BNC R&S®RT-ZD10/20/30/40 Rohde & Schwarz probe interface
Modular broadband probes
▷ page 14 R&S®RT-ZM15/30/60/90 Rohde & Schwarz probe interface
Power rail probe
▷ page 16 R&S®RT-ZPR20/40 Rohde & Schwarz probe interface
Multi-channel power probe
▷ page 18 R&S®RT-ZVC02/-ZVC04 R&S®RTE/R&S®RTO MSO interface
High-voltage probes
▷ page 22 R&S®RT-ZH03/10/11 BNC R&S®RT-ZD002/003/01 BNC R&S®RT-ZHD07/15/16/60 Rohde & Schwarz probe interface
Current probes
▷ page 26 R&S®RT-ZC02/03 BNC R&S®RT-ZC10/20/30 BNC R&S®RT-ZC05B/10B/15B/20B Rohde & Schwarz probe interface
EMC near-field probes
▷ page 28 R&S®HZ-14/15/17 BNC 1) Probe requires 50 Ω input coupling. For oscilloscopes with 1 MΩ input a BNC feedthrough termination adapter is required. Recommended Usable
Rohde & Schwarz
Probes and accessories for Rohde & Schwarz oscilloscopes
5
