High signal fidelity with active probes. Wide dynamic range with additional offset compensation
Text Version of Document

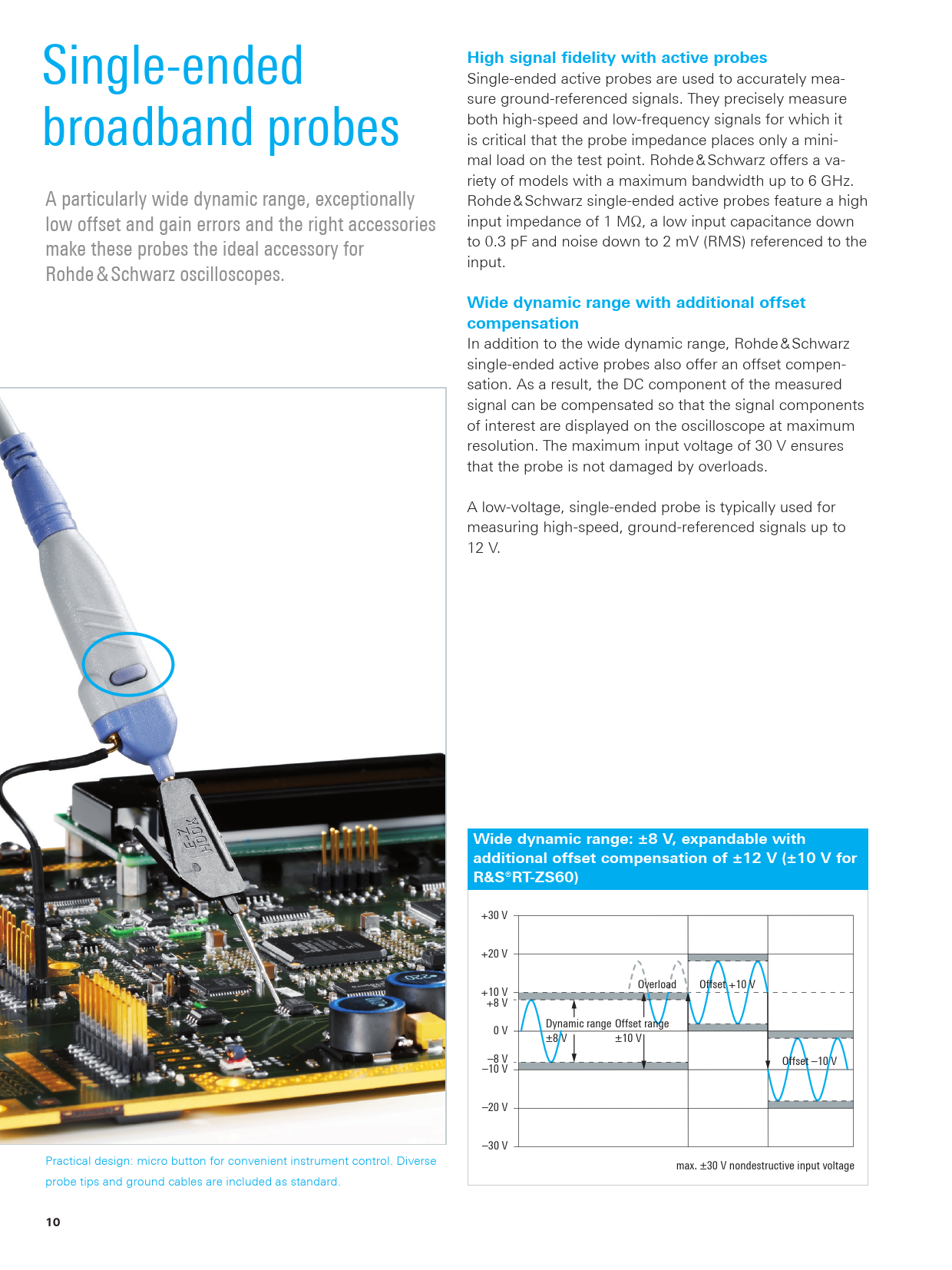

High signal fidelity with active probes
Single-ended Single-ended active probes are used to accurately mea- sure ground-referenced signals. They precisely measure both high-speed and low-frequency signals for which it broadband probes is critical that the probe impedance places only a mini- mal load on the test point. Rohde & Schwarz offers a va- riety of models with a maximum bandwidth up to 6 GHz. A particularly wide dynamic range, exceptionally Rohde & Schwarz single-ended active probes feature a high input impedance of 1 MΩ, a low input capacitance down low offset and gain errors and the right accessories to 0.3 pF and noise down to 2 mV (RMS) referenced to the make these probes the ideal accessory for input. Rohde & Schwarz oscilloscopes.
Wide dynamic range with additional offset compensation
In addition to the wide dynamic range, Rohde & Schwarz single-ended active probes also offer an offset compen- sation. As a result, the DC component of the measured signal can be compensated so that the signal components of interest are displayed on the oscilloscope at maximum resolution. The maximum input voltage of 30 V ensures that the probe is not damaged by overloads. A low-voltage, single-ended probe is typically used for measuring high-speed, ground-referenced signals up to 12 V.
Wide dynamic range: ±8 V, expandable with additional offset compensation of ±12 V (±10 V for R&S®RT-ZS60)
+30 V +20 V Overload Offset +10 V +10 V +8 V Dynamic range Offset range 0 V ±8 V ±10 V –8 V Offset –10 V –10 V –20 V –30 V Practical design: micro button for convenient instrument control. Diverse max. ±30 V nondestructive input voltage probe tips and ground cables are included as standard.
10
Probes_and_accessories_bro_en_3606-8866-12_v1301.indd 10 16.07.2018 16:25:55
