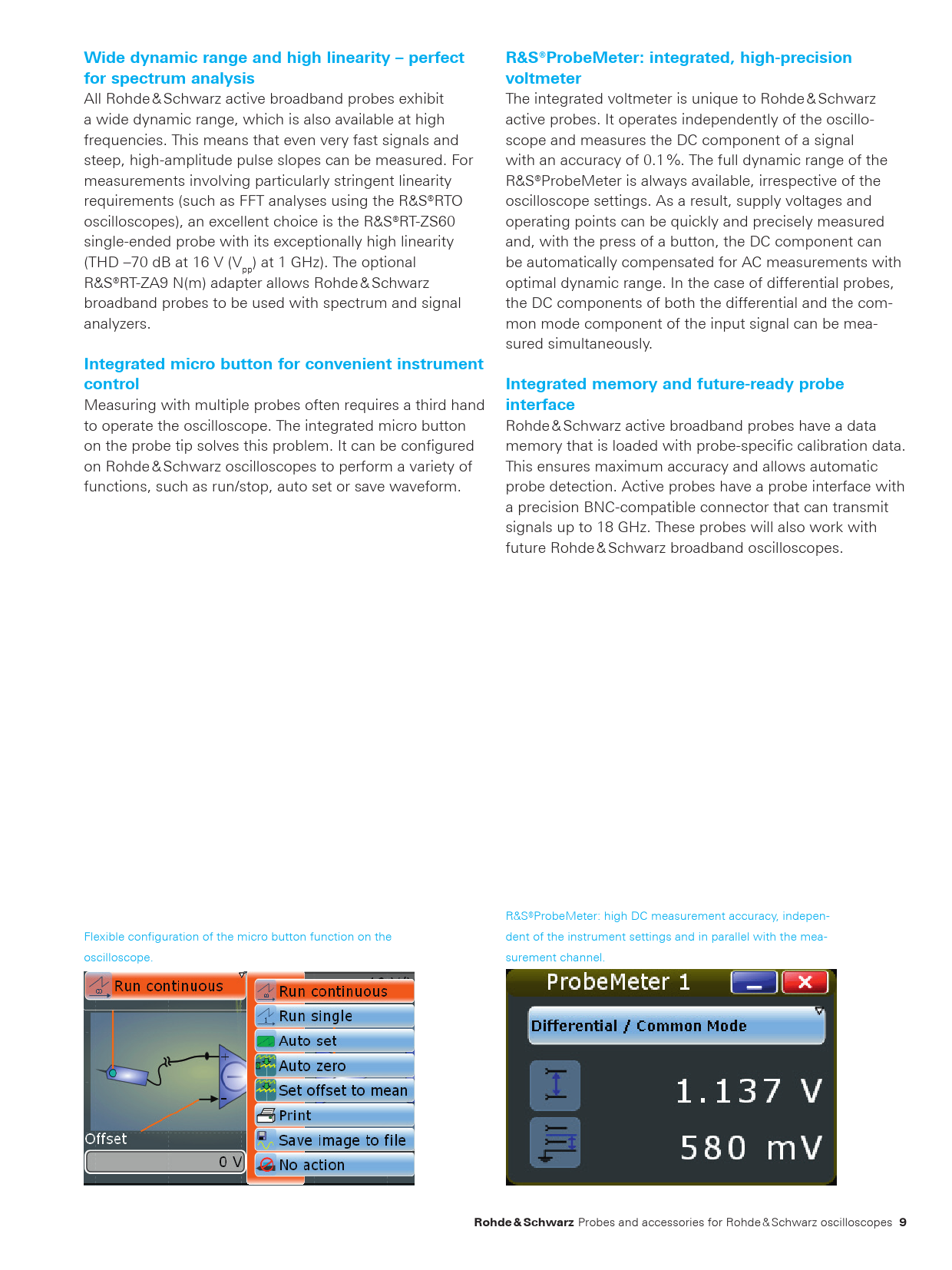

Wide dynamic range and high linearity – perfect. R&S®ProbeMeter: integrated, high-precision. for spectrum analysis
Text Version of Document
Wide dynamic range and high linearity – perfect R&S®ProbeMeter: integrated, high-precision for spectrum analysis voltmeter
All Rohde & Schwarz active broadband probes exhibit The integrated voltmeter is unique to Rohde & Schwarz a wide dynamic range, which is also available at high active probes. It operates independently of the oscillo- frequencies. This means that even very fast signals and scope and measures the DC component of a signal steep, high-amplitude pulse slopes can be measured. For with an accuracy of 0.1 %. The full dynamic range of the measurements involving particularly stringent linearity R&S®ProbeMeter is always available, irrespective of the requirements (such as FFT analyses using the R&S®RTO oscilloscope settings. As a result, supply voltages and oscilloscopes), an excellent choice is the R&S®RT-ZS60 operating points can be quickly and precisely measured single- ended probe with its exceptionally high linearity and, with the press of a button, the DC component can (THD –70 dB at 16 V (V ) at 1 GHz). The optional be auto matically compensated for AC measurements with pp R&S®RT-ZA9 N(m) adapter allows Rohde & Schwarz optimal dynamic range. In the case of differential probes, broadband probes to be used with spectrum and signal the DC components of both the differential and the com- analyzers. mon mode component of the input signal can be mea- sured simultaneously.
Integrated micro button for convenient instrument control Integrated memory and future-ready probe
Measuring with multiple probes often requires a third hand
interface
to operate the oscilloscope. The integrated micro button Rohde & Schwarz active broadband probes have a data on the probe tip solves this problem. It can be configured memory that is loaded with probe-specific calibration data. on Rohde & Schwarz oscilloscopes to perform a variety of This ensures maximum accuracy and allows automatic functions, such as run/stop, auto set or save waveform. probe detection. Active probes have a probe interface with a precision BNC-compatible connector that can transmit signals up to 18 GHz. These probes will also work with future Rohde & Schwarz broadband oscilloscopes. R&S®ProbeMeter: high DC measurement accuracy, indepen- Flexible configuration of the micro button function on the dent of the instrument settings and in parallel with the mea- oscilloscope. surement channel.
