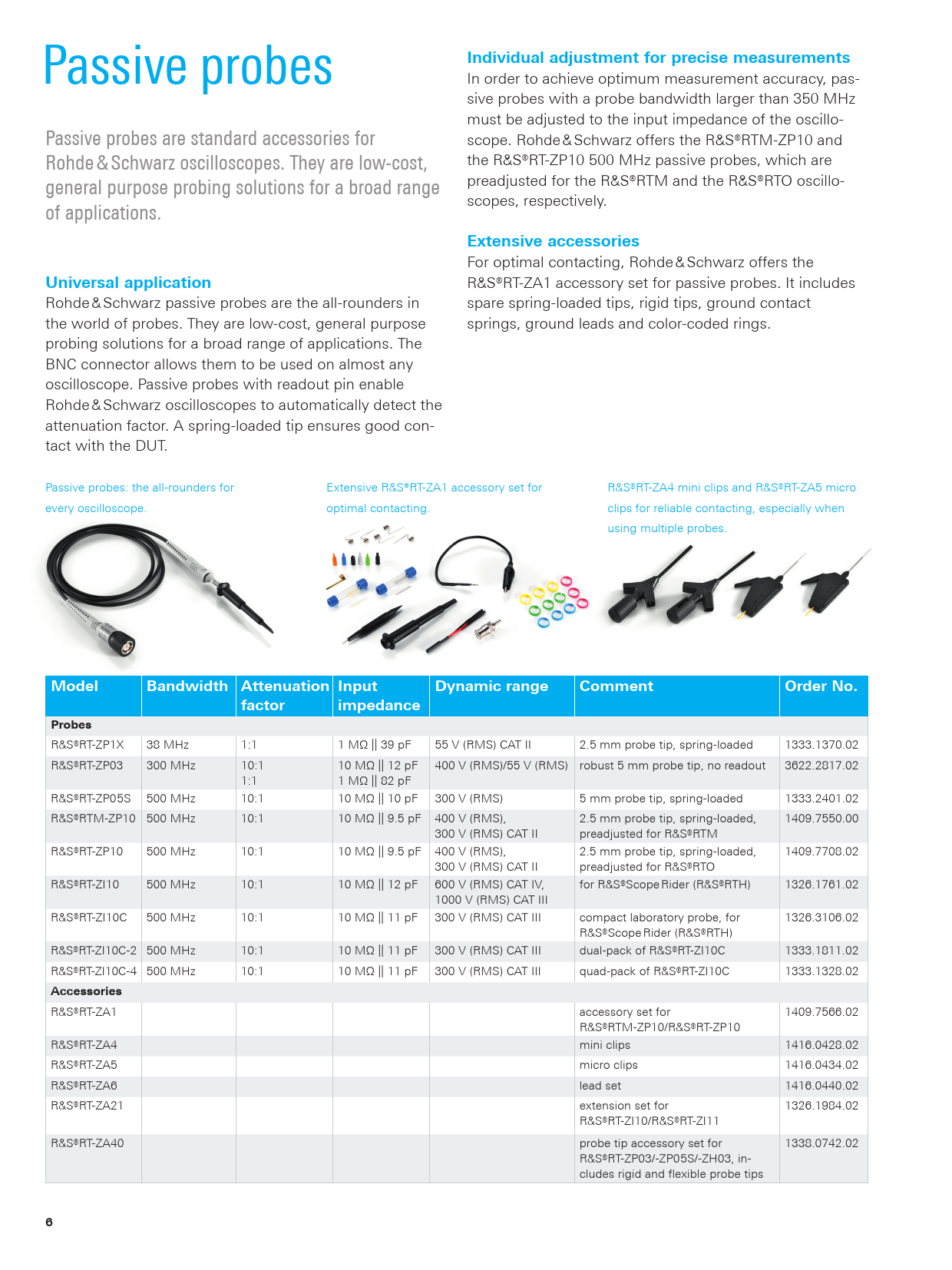

Individual adjustment for precise measurements. Extensive accessories. Universal application. Model
Text Version of Document
Individual adjustment for precise measurements
Passive probes In order to achieve optimum measurement accuracy, pas- sive probes with a probe bandwidth larger than 350 MHz must be adjusted to the input impedance of the oscillo- Passive probes are standard accessories for scope. Rohde & Schwarz offers the R&S®RTM-ZP10 and the R&S®RT-ZP10 500 MHz passive probes, which are Rohde & Schwarz oscilloscopes. They are low-cost, preadjusted for the R&S®RTM and the R&S®RTO oscillo- general purpose probing solutions for a broad range scopes, respectively. of applications.
Extensive accessories
For optimal contacting, Rohde & Schwarz offers the
Universal application
R&S®RT-ZA1 accessory set for passive probes. It includes Rohde & Schwarz passive probes are the all-rounders in spare spring-loaded tips, rigid tips, ground contact the world of probes. They are low-cost, general purpose springs, ground leads and color-coded rings. probing solutions for a broad range of applications. The BNC connector allows them to be used on almost any oscilloscope. Passive probes with readout pin enable Rohde & Schwarz oscilloscopes to automatically detect the attenuation factor. A spring-loaded tip ensures good con- tact with the DUT. Passive probes: the all-rounders for Extensive R&S
®
RT-ZA1 accessory set for R&S®RT-ZA4 mini clips and R&S®RT-ZA5 micro every oscilloscope. optimal contacting. clips for reliable contacting, especially when using multiple probes.
Model Bandwidth Attenuation Input Dynamic range Comment Order No. factor impedance Probes
R&S®RT-ZP1X 38 MHz 1:1 1 MΩ || 39 pF 55 V (RMS) CAT II 2.5 mm probe tip, spring-loaded 1333.1370.02 R&S®RT-ZP03 300 MHz 10:1 10 MΩ || 12 pF 400 V (RMS)/55 V (RMS) robust 5 mm probe tip, no readout 3622.2817.02 1:1 1 MΩ || 82 pF R&S®RT-ZP05S 500 MHz 10:1 10 MΩ || 10 pF 300 V (RMS) 5 mm probe tip, spring-loaded 1333.2401.02 R&S®RTM-ZP10 500 MHz 10:1 10 MΩ || 9.5 pF 400 V (RMS), 2.5 mm probe tip, spring- loaded, 1409.7550.00 300 V (RMS) CAT II pre adjusted for R&S®RTM R&S®RT-ZP10 500 MHz 10:1 10 MΩ || 9.5 pF 400 V (RMS), 2.5 mm probe tip, spring-loaded, 1409.7708.02 300 V (RMS) CAT II preadjusted for R&S®RTO R&S®RT-ZI10 500 MHz 10:1 10 MΩ || 12 pF 600 V (RMS) CAT IV, for R&S®Scope Rider (R&S®RTH) 1326.1761.02 1000 V (RMS) CAT III R&S®RT-ZI10C 500 MHz 10:1 10 MΩ || 11 pF 300 V (RMS) CAT III compact laboratory probe, for 1326.3106.02 R&S®Scope Rider (R&S®RTH) R&S®RT-ZI10C-2 500 MHz 10:1 10 MΩ || 11 pF 300 V (RMS) CAT III dual-pack of R&S®RT-ZI10C 1333.1811.02 R&S®RT-ZI10C-4 500 MHz 10:1 10 MΩ || 11 pF 300 V (RMS) CAT III quad-pack of R&S®RT-ZI10C 1333.1328.02
Accessories
R&S®RT-ZA1 accessory set for 1409.7566.02 R&S®RTM-ZP10/R&S®RT-ZP10 R&S®RT-ZA4 mini clips 1416.0428.02 R&S®RT-ZA5 micro clips 1416.0434.02 R&S®RT-ZA6 lead set 1416.0440.02 R&S®RT-ZA21 extension set for 1326.1984.02 R&S®RT-ZI10/R&S®RT-ZI11 R&S®RT-ZA40 probe tip accessory set for 1338.0742.02 R&S®RT-ZP03/-ZP05S/-ZH03, in- cludes rigid and flexible probe tips
