Economical alternative for measurements on. controlled impedance lines. Maximum bandwidth through customized. accessories
Text Version of Document

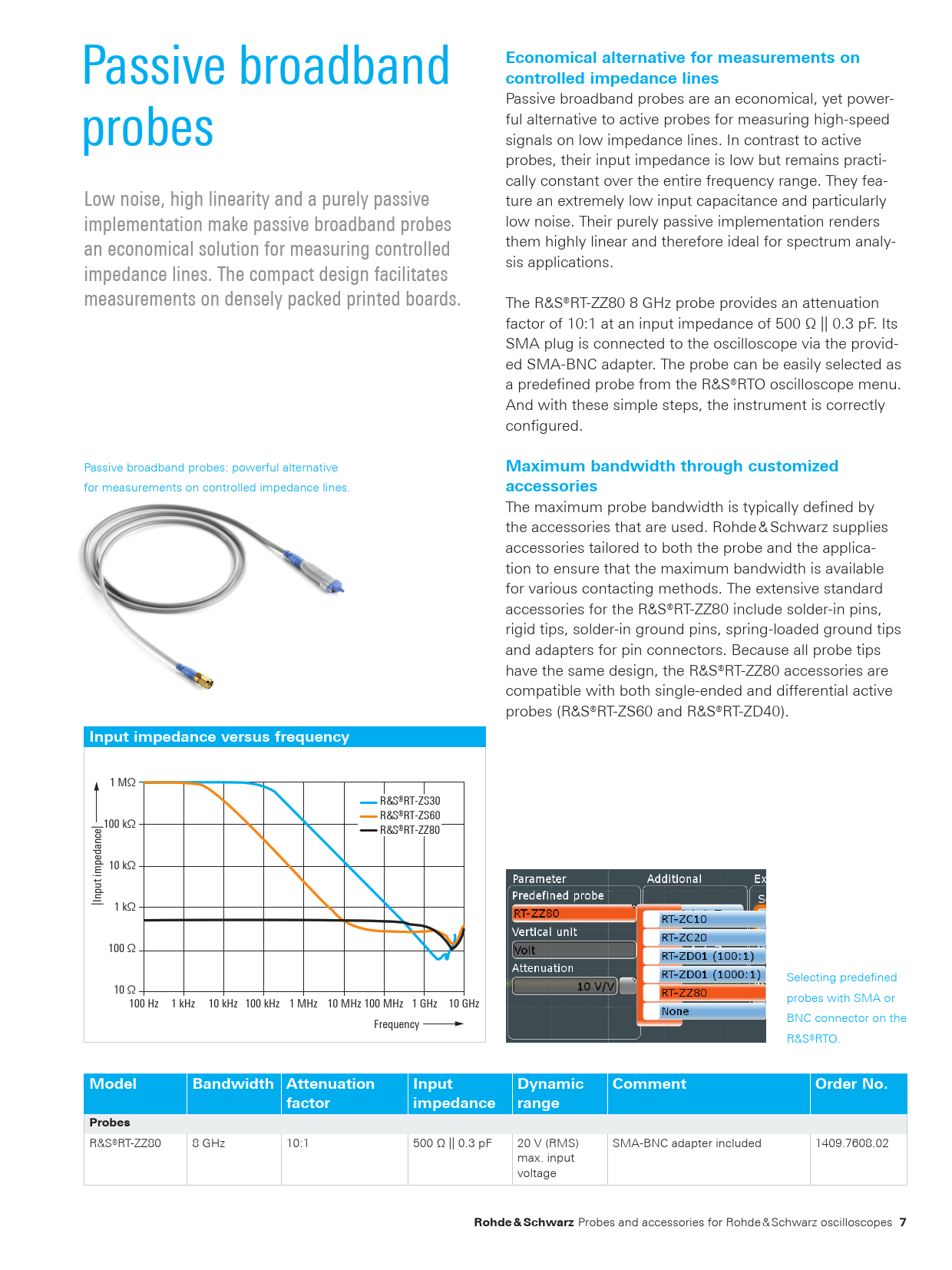

Economical alternative for measurements on
Passive broadband
controlled impedance lines
Passive broadband probes are an economical, yet power- ful alternative to active probes for measuring high-speed probes signals on low impedance lines. In contrast to active probes, their input impedance is low but remains practi- cally constant over the entire frequency range. They fea- Low noise, high linearity and a purely passive ture an extremely low input capacitance and particularly low noise. Their purely passive implementation renders implementation make passive broadband probes them highly linear and therefore ideal for spectrum analy- an economical solution for measuring controlled sis applications. impedance lines. The compact design facilitates measurements on densely packed printed boards. The R&S®RT-ZZ80 8 GHz probe provides an attenuation factor of 10:1 at an input impedance of 500 Ω || 0.3 pF. Its SMA plug is connected to the oscilloscope via the provid- ed SMA-BNC adapter. The probe can be easily selected as a predefined probe from the R&S®RTO oscilloscope menu. And with these simple steps, the instrument is correctly configured. Passive broadband probes: powerful alternative
Maximum bandwidth through customized
for measurements on controlled impedance lines.
accessories
The maximum probe bandwidth is typically defined by the accessories that are used. Rohde & Schwarz supplies accessories tailored to both the probe and the applica- tion to ensure that the maximum bandwidth is available for various contacting methods. The extensive standard accessories for the R&S®RT-ZZ80 include solder-in pins, rigid tips, solder-in ground pins, spring-loaded ground tips and adapters for pin connectors. Because all probe tips have the same design, the R&S®RT-ZZ80 accessories are compatible with both single-ended and differential active probes (R&S®RT-ZS60 and R&S®RT-ZD40).
Input impedance versus frequency
1 MΩ ¸RT-ZS30 ¸RT-ZS60 | 100 kΩ ¸RT-ZZ80 10 kΩ |Input impedance 1 kΩ 100 Ω Selecting predefined 10 Ω 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz 10 MHz 100 MHz 1 GHz 10 GHz probes with SMA or Frequency BNC connector on the R&S®RTO.
Model Bandwidth Attenuation Input Dynamic Comment Order No. factor impedance range Probes
R&S®RT-ZZ80 8 GHz 10:1 500 Ω || 0.3 pF 20 V (RMS) SMA-BNC adapter included 1409.7608.02 max. input voltage
Rohde & Schwarz
Probes and accessories for Rohde & Schwarz oscilloscopes
7
