Datasheet RT-ZFxx Oscilloscope Test Fixtures (Rohde&Schwarz) - 2
| Manufacturer | Rohde&Schwarz |
| Description | Oscilloscope Test Fixtures Specifications |
| Pages / Page | 4 / 2 — Version 07.00, April 2017. R&S®RT-ZF3 frequency converter … |
| Revision | 07.00 |
| File Format / Size | PDF / 334 Kb |
| Document Language | English |

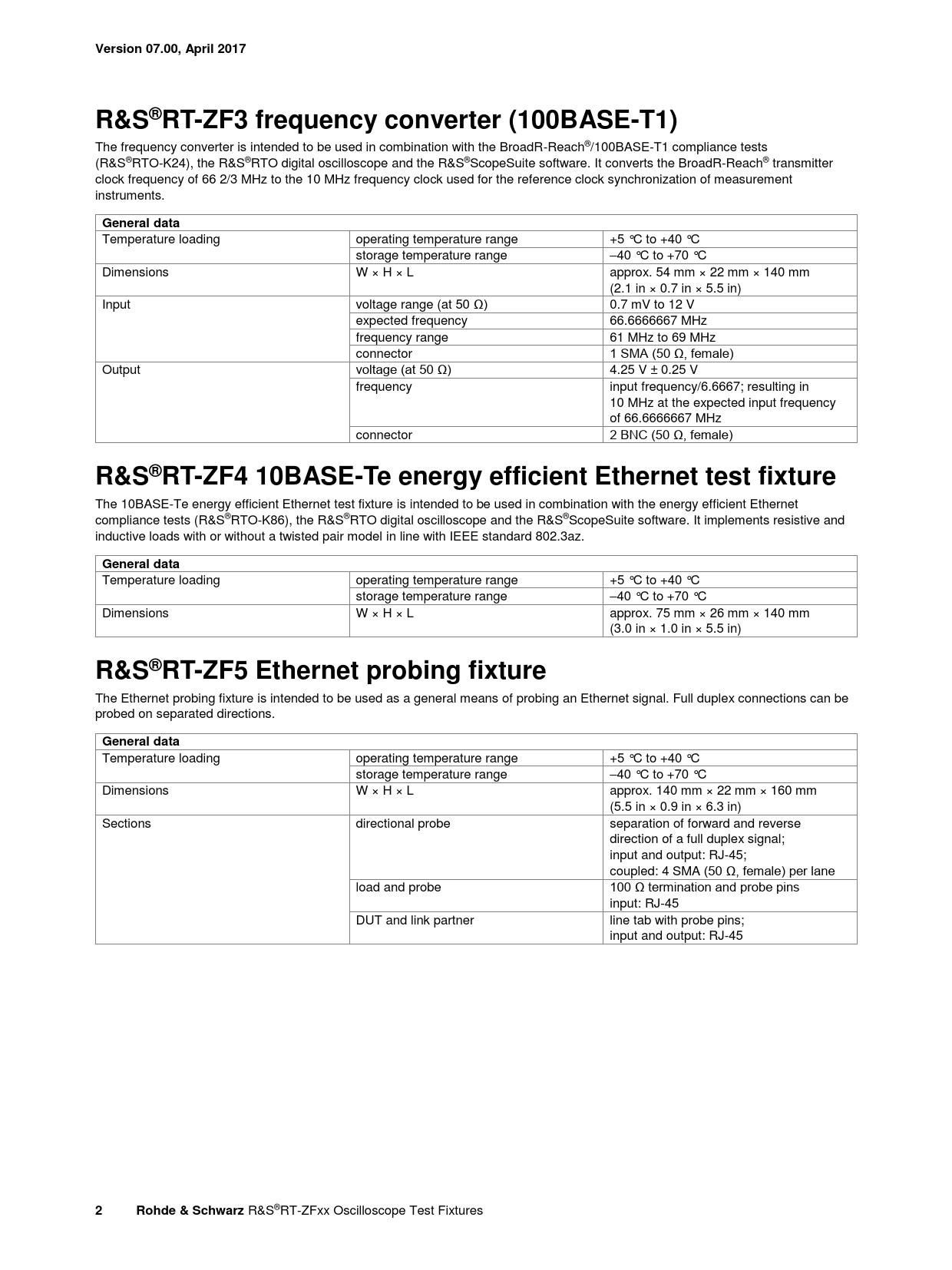

Version 07.00, April 2017. R&S®RT-ZF3 frequency converter (100BASE-T1). General data
Text Version of Document
Version 07.00, April 2017 R&S®RT-ZF3 frequency converter (100BASE-T1)
The frequency converter is intended to be used in combination with the BroadR-Reach®/100BASE-T1 compliance tests (R&S®RTO-K24), the R&S®RTO digital oscilloscope and the R&S®ScopeSuite software. It converts the BroadR-Reach® transmitter clock frequency of 66 2/3 MHz to the 10 MHz frequency clock used for the reference clock synchronization of measurement instruments.
General data
Temperature loading operating temperature range +5 °C to +40 °C storage temperature range –40 °C to +70 °C Dimensions W × H × L approx. 54 mm × 22 mm × 140 mm (2.1 in × 0.7 in × 5.5 in) Input voltage range (at 50 Ω) 0.7 mV to 12 V expected frequency 66.6666667 MHz frequency range 61 MHz to 69 MHz connector 1 SMA (50 Ω, female) Output voltage (at 50 Ω) 4.25 V ± 0.25 V frequency input frequency/6.6667; resulting in 10 MHz at the expected input frequency of 66.6666667 MHz connector 2 BNC (50 Ω, female)
R&S®RT-ZF4 10BASE-Te energy efficient Ethernet test fixture
The 10BASE-Te energy efficient Ethernet test fixture is intended to be used in combination with the energy efficient Ethernet compliance tests (R&S®RTO-K86), the R&S®RTO digital oscilloscope and the R&S®ScopeSuite software. It implements resistive and inductive loads with or without a twisted pair model in line with IEEE standard 802.3az.
General data
Temperature loading operating temperature range +5 °C to +40 °C storage temperature range –40 °C to +70 °C Dimensions W × H × L approx. 75 mm × 26 mm × 140 mm (3.0 in × 1.0 in × 5.5 in)
R&S®RT-ZF5 Ethernet probing fixture
The Ethernet probing fixture is intended to be used as a general means of probing an Ethernet signal. Full duplex connections can be probed on separated directions.
General data
Temperature loading operating temperature range +5 °C to +40 °C storage temperature range –40 °C to +70 °C Dimensions W × H × L approx. 140 mm × 22 mm × 160 mm (5.5 in × 0.9 in × 6.3 in) Sections directional probe separation of forward and reverse direction of a full duplex signal; input and output: RJ-45; coupled: 4 SMA (50 Ω, female) per lane load and probe 100 Ω termination and probe pins input: RJ-45 DUT and link partner line tab with probe pins; input and output: RJ-45
