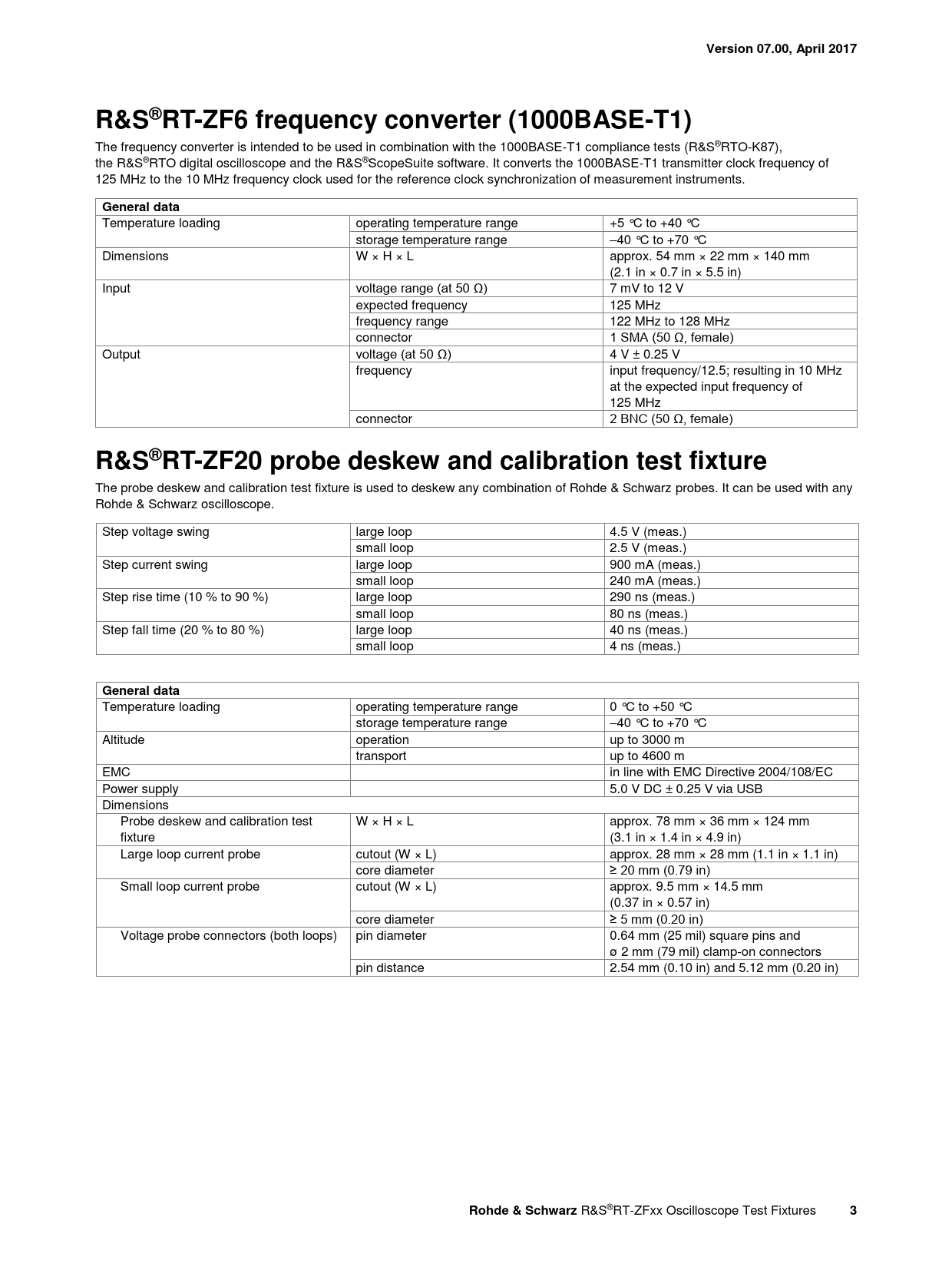

Version 07.00, April 2017. R&S®RT-ZF6 frequency converter (1000BASE-T1). General data
Text Version of Document
Version 07.00, April 2017 R&S®RT-ZF6 frequency converter (1000BASE-T1)
The frequency converter is intended to be used in combination with the 1000BASE-T1 compliance tests (R&S®RTO-K87), the R&S®RTO digital oscilloscope and the R&S®ScopeSuite software. It converts the 1000BASE-T1 transmitter clock frequency of 125 MHz to the 10 MHz frequency clock used for the reference clock synchronization of measurement instruments.
General data
Temperature loading operating temperature range +5 °C to +40 °C storage temperature range –40 °C to +70 °C Dimensions W × H × L approx. 54 mm × 22 mm × 140 mm (2.1 in × 0.7 in × 5.5 in) Input voltage range (at 50 Ω) 7 mV to 12 V expected frequency 125 MHz frequency range 122 MHz to 128 MHz connector 1 SMA (50 Ω, female) Output voltage (at 50 Ω) 4 V ± 0.25 V frequency input frequency/12.5; resulting in 10 MHz at the expected input frequency of 125 MHz connector 2 BNC (50 Ω, female)
R&S®RT-ZF20 probe deskew and calibration test fixture
The probe deskew and calibration test fixture is used to deskew any combination of Rohde & Schwarz probes. It can be used with any Rohde & Schwarz oscilloscope. Step voltage swing large loop 4.5 V (meas.) small loop 2.5 V (meas.) Step current swing large loop 900 mA (meas.) small loop 240 mA (meas.) Step rise time (10 % to 90 %) large loop 290 ns (meas.) small loop 80 ns (meas.) Step fall time (20 % to 80 %) large loop 40 ns (meas.) small loop 4 ns (meas.)
General data
Temperature loading operating temperature range 0 °C to +50 °C storage temperature range –40 °C to +70 °C Altitude operation up to 3000 m transport up to 4600 m EMC in line with EMC Directive 2004/108/EC Power supply 5.0 V DC ± 0.25 V via USB Dimensions Probe deskew and calibration test W × H × L approx. 78 mm × 36 mm × 124 mm fixture (3.1 in × 1.4 in × 4.9 in) Large loop current probe cutout (W × L) approx. 28 mm × 28 mm (1.1 in × 1.1 in) core diameter ≥ 20 mm (0.79 in) Small loop current probe cutout (W × L) approx. 9.5 mm × 14.5 mm (0.37 in × 0.57 in) core diameter ≥ 5 mm (0.20 in) Voltage probe connectors (both loops) pin diameter 0.64 mm (25 mil) square pins and ø 2 mm (79 mil) clamp-on connectors pin distance 2.54 mm (0.10 in) and 5.12 mm (0.20 in)
