Mixed Signal Digital Oscilloscope. *Do not include the 50 MHz bandwidth model
Text Version of Document

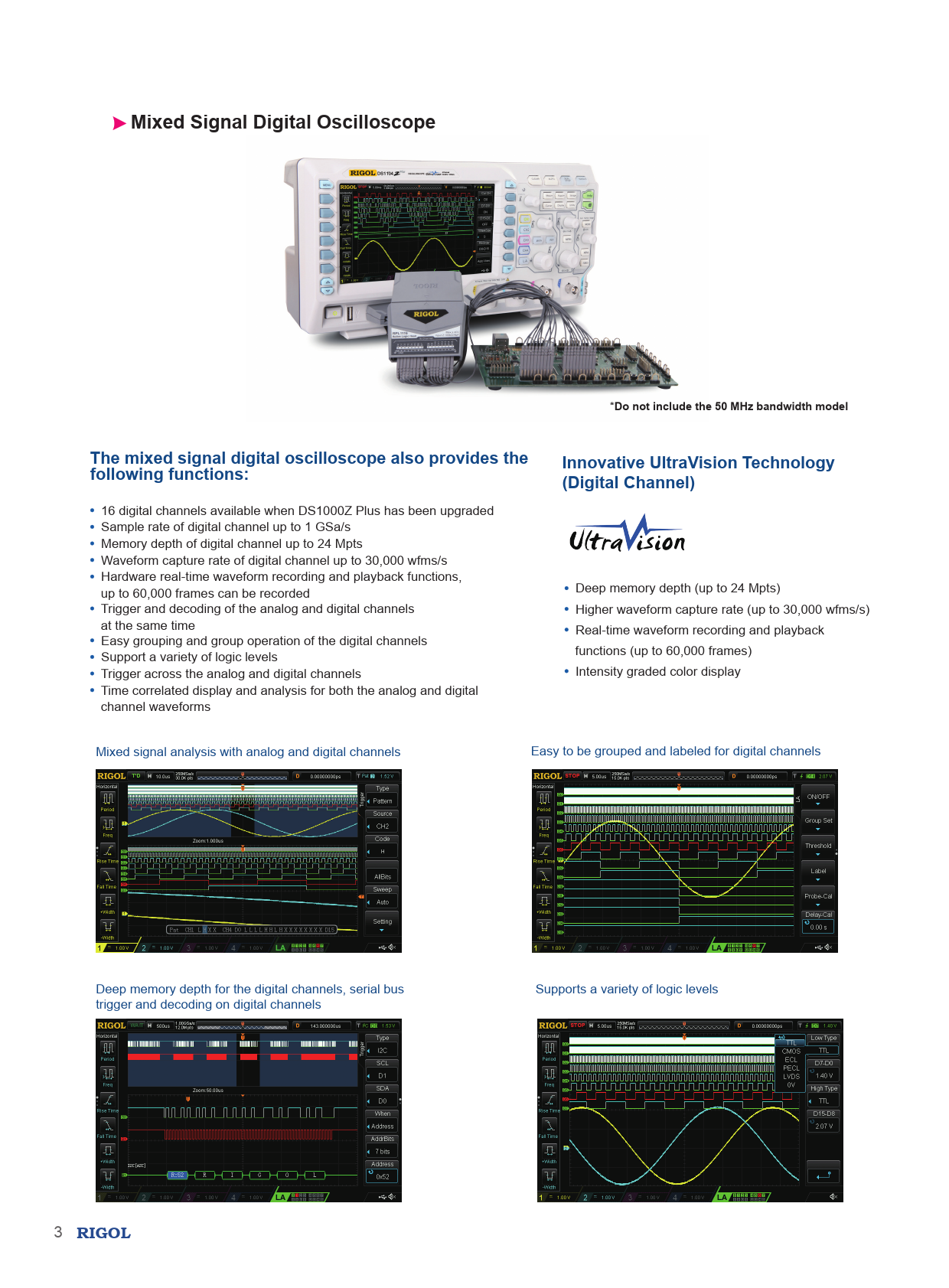

Mixed Signal Digital Oscilloscope *Do not include the 50 MHz bandwidth model The mixed signal digital oscilloscope also provides the Innovative UltraVision Technology following functions: (Digital Channel)
16 digital channels available when DS1000Z Plus has been upgraded Sample rate of digital channel up to 1 GSa/s Memory depth of digital channel up to 24 Mpts Waveform capture rate of digital channel up to 30,000 wfms/s Hardware real-time waveform recording and playback functions, up to 60,000 frames can be recorded Deep memory depth (up to 24 Mpts) Trigger and decoding of the analog and digital channels Higher waveform capture rate (up to 30,000 wfms/s) at the same time Real-time waveform recording and playback Easy grouping and group operation of the digital channels Support a variety of logic levels functions (up to 60,000 frames) Trigger across the analog and digital channels Intensity graded color display Time correlated display and analysis for both the analog and digital channel waveforms Mixed signal analysis with analog and digital channels Easy to be grouped and labeled for digital channels Deep memory depth for the digital channels, serial bus Supports a variety of logic levels trigger and decoding on digital channels 3
RIGOL
16 digital channels available when DS1000Z Plus has been upgraded Sample rate of digital channel up to 1 GSa/s Memory depth of digital channel up to 24 Mpts Waveform capture rate of digital channel up to 30,000 wfms/s Hardware real-time waveform recording and playback functions, up to 60,000 frames can be recorded Deep memory depth (up to 24 Mpts) Trigger and decoding of the analog and digital channels Higher waveform capture rate (up to 30,000 wfms/s) at the same time Real-time waveform recording and playback Easy grouping and group operation of the digital channels Support a variety of logic levels functions (up to 60,000 frames) Trigger across the analog and digital channels Intensity graded color display Time correlated display and analysis for both the analog and digital channel waveforms Mixed signal analysis with analog and digital channels Easy to be grouped and labeled for digital channels Deep memory depth for the digital channels, serial bus Supports a variety of logic levels trigger and decoding on digital channels 3
