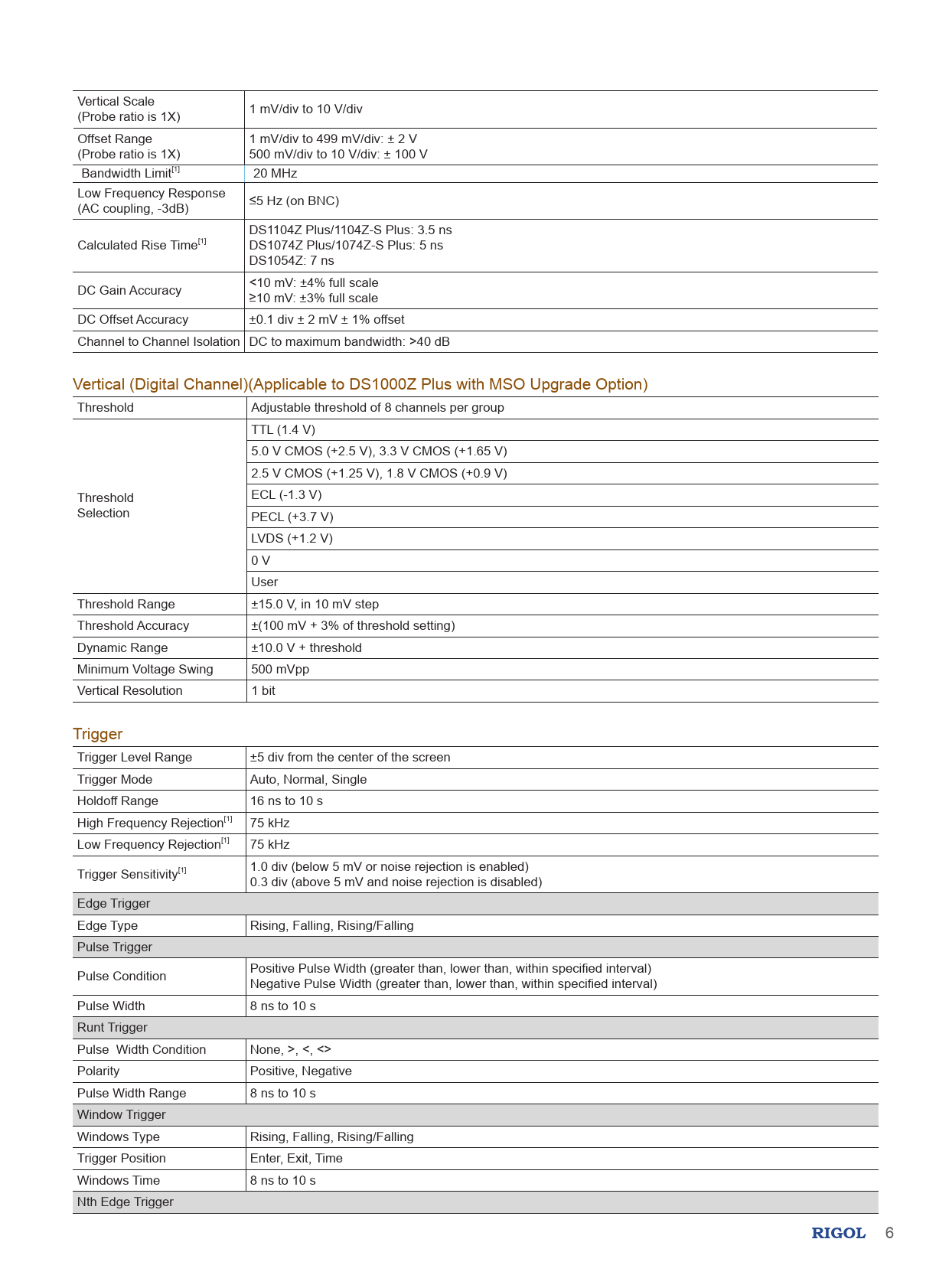

Vertical Scale (Probe ratio is 1X) 1 mV/div to 10 V/div Offset Range 1 mV/div to 499 mV/div: ± 2 V (Probe ratio is 1X) 500 mV/div to 10 V/div: ± 100 V Bandwidth Limit[1] 20 MHz Low Frequency Response (AC coupling, -3dB) ≤5 Hz (on BNC) DS1104Z Plus/1104Z-S Plus: 3.5 ns Calculated Rise Time[1] DS1074Z Plus/1074Z-S Plus: 5 ns DS1054Z: 7 ns DC Gain Accuracy <10 mV: ±4% full scale ≥10 mV: ±3% full scale DC Offset Accuracy ±0.1 div ± 2 mV ± 1% offset Channel to Channel Isolation DC to maximum bandwidth: >40 dB Vertical (Digital Channel)(Applicable to DS1000Z Plus with MSO Upgrade Option) Threshold Adjustable threshold of 8 channels per group TTL (1.4 V) 5.0 V CMOS (+2.5 V), 3.3 V CMOS (+1.65 V) 2.5 V CMOS (+1.25 V), 1.8 V CMOS (+0.9 V) Threshold ECL (-1.3 V) Selection PECL (+3.7 V) LVDS (+1.2 V) 0 V User Threshold Range ±15.0 V, in 10 mV step Threshold Accuracy ±(100 mV + 3% of threshold setting) Dynamic Range ±10.0 V + threshold Minimum Voltage Swing 500 mVpp Vertical Resolution 1 bit Trigger Trigger Level Range ±5 div from the center of the screen Trigger Mode Auto, Normal, Single Holdoff Range 16 ns to 10 s High Frequency Rejection[1] 75 kHz Low Frequency Rejection[1] 75 kHz Trigger Sensitivity[1] 1.0 div (below 5 mV or noise rejection is enabled) 0.3 div (above 5 mV and noise rejection is disabled) Edge Trigger Edge Type Rising, Falling, Rising/Falling Pulse Trigger Pulse Condition Positive Pulse Width (greater than, lower than, within specified interval) Negative Pulse Width (greater than, lower than, within specified interval) Pulse Width 8 ns to 10 s Runt Trigger Pulse Width Condition None, >, <, <> Polarity Positive, Negative Pulse Width Range 8 ns to 10 s Window Trigger Windows Type Rising, Falling, Rising/Falling Trigger Position Enter, Exit, Time Windows Time 8 ns to 10 s Nth Edge Trigger
