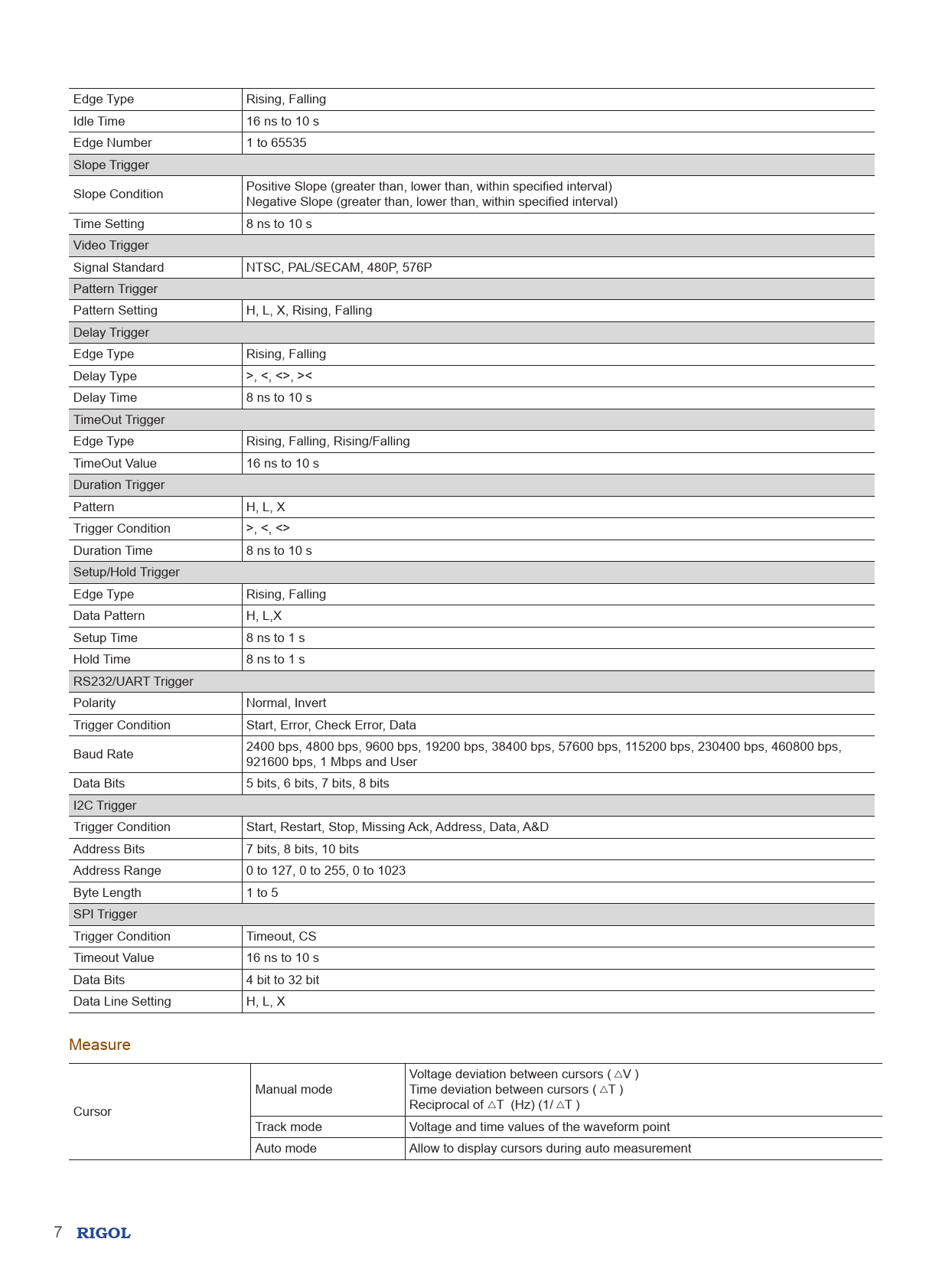

Edge Type Rising, Falling Idle Time 16 ns to 10 s Edge Number 1 to 65535 Slope Trigger Slope Condition Positive Slope (greater than, lower than, within specified interval) Negative Slope (greater than, lower than, within specified interval) Time Setting 8 ns to 10 s Video Trigger Signal Standard NTSC, PAL/SECAM, 480P, 576P Pattern Trigger Pattern Setting H, L, X, Rising, Falling Delay Trigger Edge Type Rising, Falling Delay Type >, <, <>, >< Delay Time 8 ns to 10 s TimeOut Trigger Edge Type Rising, Falling, Rising/Falling TimeOut Value 16 ns to 10 s Duration Trigger Pattern H, L, X Trigger Condition >, <, <> Duration Time 8 ns to 10 s Setup/Hold Trigger Edge Type Rising, Falling Data Pattern H, L,X Setup Time 8 ns to 1 s Hold Time 8 ns to 1 s RS232/UART Trigger Polarity Normal, Invert Trigger Condition Start, Error, Check Error, Data Baud Rate 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps, 230400 bps, 460800 bps, 921600 bps, 1 Mbps and User Data Bits 5 bits, 6 bits, 7 bits, 8 bits I2C Trigger Trigger Condition Start, Restart, Stop, Missing Ack, Address, Data, A&D Address Bits 7 bits, 8 bits, 10 bits Address Range 0 to 127, 0 to 255, 0 to 1023 Byte Length 1 to 5 SPI Trigger Trigger Condition Timeout, CS Timeout Value 16 ns to 10 s Data Bits 4 bit to 32 bit Data Line Setting H, L, X Measure Voltage deviation between cursors ( △V ) Manual mode Time deviation between cursors ( △T ) Cursor Reciprocal of △T (Hz) (1/ △T ) Track mode Voltage and time values of the waveform point Auto mode Allow to display cursors during auto measurement 7
