Datasheet ADA4805-2 (Analog Devices) - 4

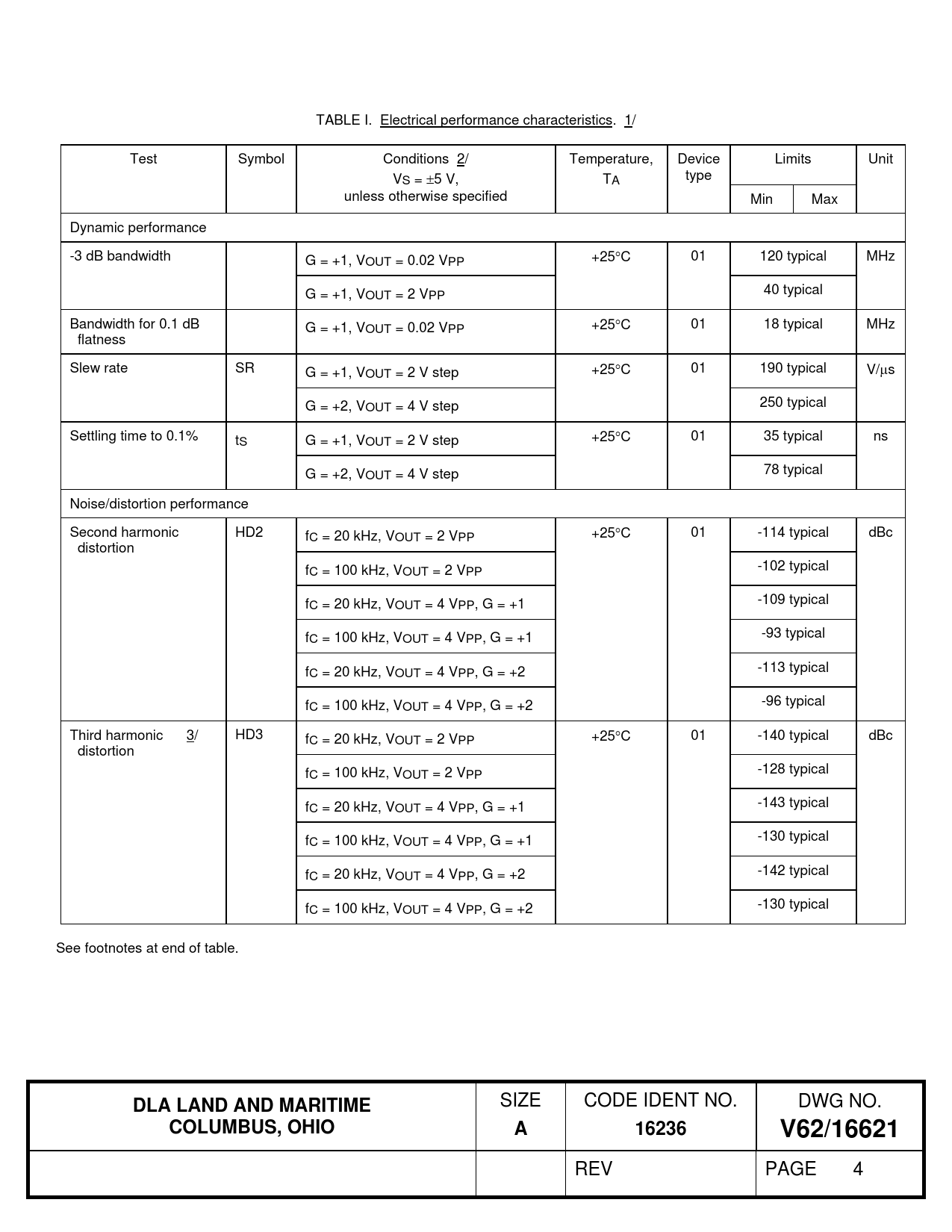

TABLE I. Electrical performance characteristics. 1/ Test Symbol Conditions 2/ Temperature, Device Limits Unit VS = 5 V, TA type unless otherwise specified Min Max Dynamic performance -3 dB bandwidth G = +1, VOUT = 0.02 VPP +25C 01 120 typical MHz G = +1, VOUT = 2 VPP 40 typical Bandwidth for 0.1 dB G = +1, VOUT = 0.02 VPP +25C 01 18 typical MHz flatness Slew rate SR G = +1, VOUT = 2 V step +25C 01 190 typical V/s G = +2, VOUT = 4 V step 250 typical Settling time to 0.1% tS G = +1, VOUT = 2 V step +25C 01 35 typical ns G = +2, VOUT = 4 V step 78 typical Noise/distortion performance Second harmonic HD2 fC = 20 kHz, VOUT = 2 VPP +25C 01 -114 typical dBc distortion fC = 100 kHz, VOUT = 2 VPP -102 typical fC = 20 kHz, VOUT = 4 VPP, G = +1 -109 typical fC = 100 kHz, VOUT = 4 VPP, G = +1 -93 typical fC = 20 kHz, VOUT = 4 VPP, G = +2 -113 typical fC = 100 kHz, VOUT = 4 VPP, G = +2 -96 typical Third harmonic 3/ HD3 fC = 20 kHz, VOUT = 2 VPP +25C 01 -140 typical dBc distortion fC = 100 kHz, VOUT = 2 VPP -128 typical fC = 20 kHz, VOUT = 4 VPP, G = +1 -143 typical fC = 100 kHz, VOUT = 4 VPP, G = +1 -130 typical fC = 20 kHz, VOUT = 4 VPP, G = +2 -142 typical fC = 100 kHz, VOUT = 4 VPP, G = +2 -130 typical See footnotes at end of table.
DLA LAND AND MARITIME
SIZE

CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/16621
REV PAGE 4
