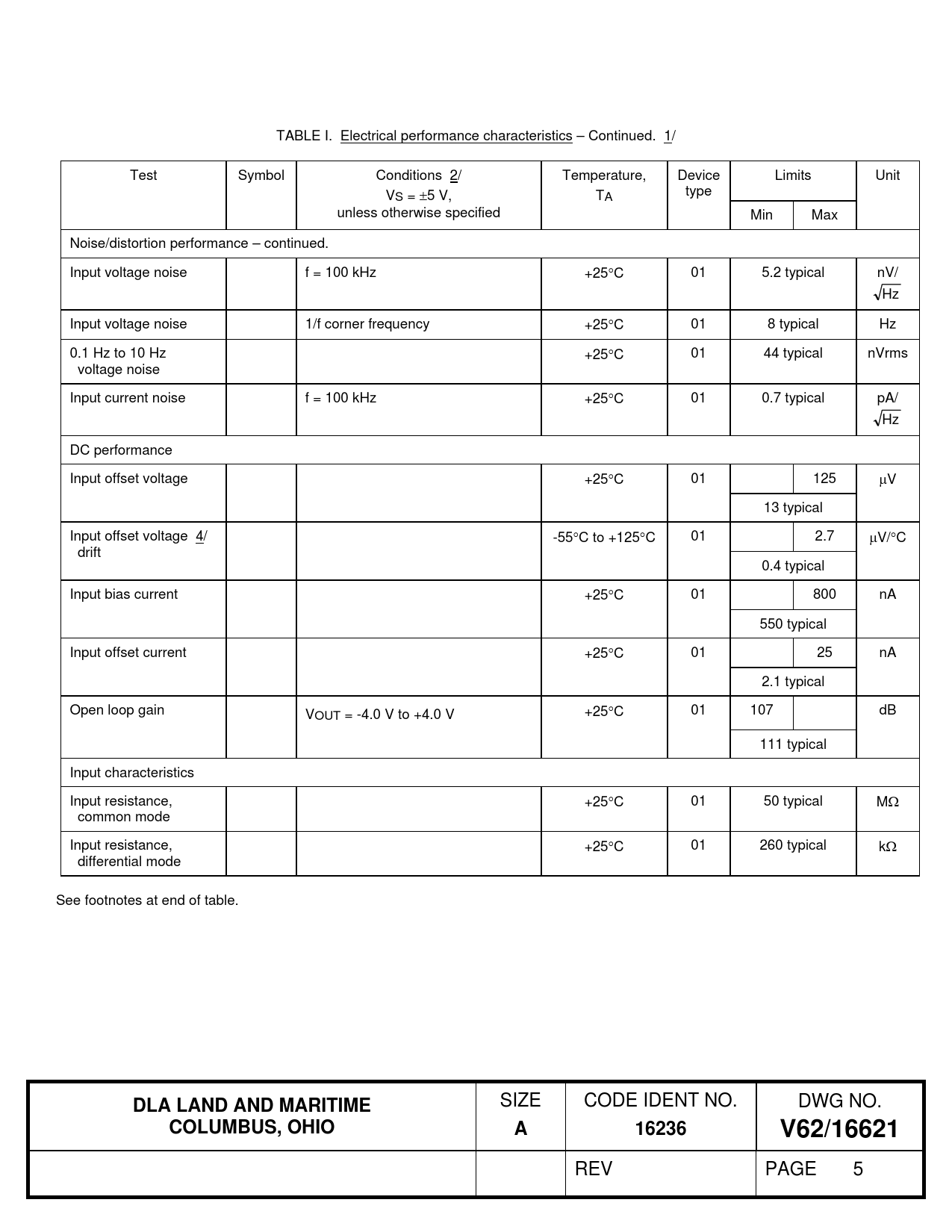

TABLE I. Electrical performance characteristics – Continued. 1/ Test Symbol Conditions 2/ Temperature, Device Limits Unit VS = 5 V, TA type unless otherwise specified Min Max Noise/distortion performance – continued. Input voltage noise f = 100 kHz +25C 01 5.2 typical nV/ Hz Input voltage noise 1/f corner frequency +25C 01 8 typical Hz 0.1 Hz to 10 Hz +25C 01 44 typical nVrms voltage noise Input current noise f = 100 kHz +25C 01 0.7 typical pA/ Hz DC performance Input offset voltage +25C 01 125 V 13 typical Input offset voltage 4/ -55C to +125C 01 2.7 V/C drift 0.4 typical Input bias current +25C 01 800 nA 550 typical Input offset current +25C 01 25 nA 2.1 typical Open loop gain VOUT = -4.0 V to +4.0 V +25C 01 107 dB 111 typical Input characteristics Input resistance, +25C 01 50 typical M common mode Input resistance, +25C 01 260 typical k differential mode See footnotes at end of table.
