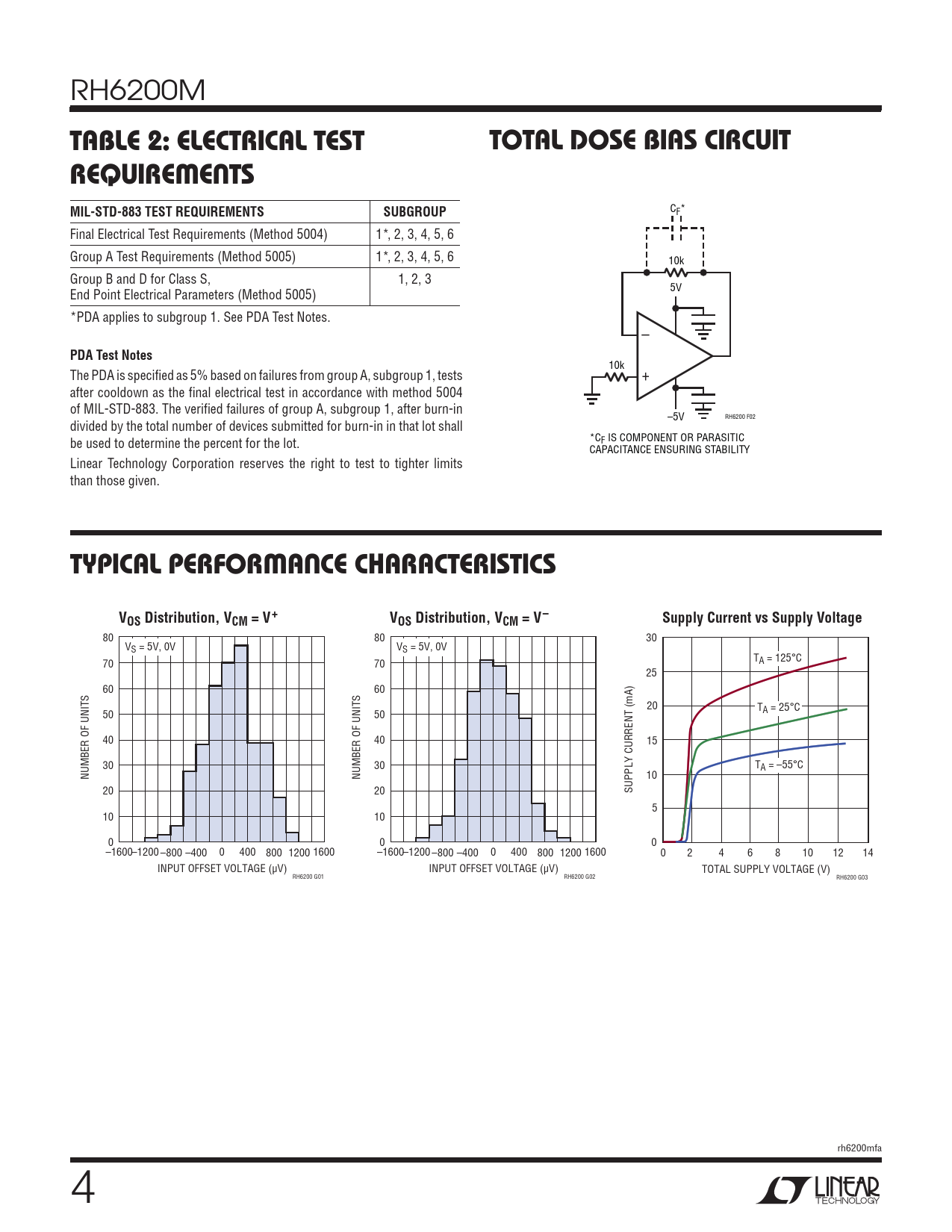

TABLE 2: ELECTRICAL TEST. TOTAL DOSE BIAS CIRCUIT. REQUIREMENTS. MIL-STD-883 TEST REQUIREMENTS. SUBGROUP. PDA Test Notes
Model Line for this Datasheet
Text Version of Document
RH6200M
TABLE 2: ELECTRICAL TEST TOTAL DOSE BIAS CIRCUIT REQUIREMENTS
C
MIL-STD-883 TEST REQUIREMENTS SUBGROUP
F* Final Electrical Test Requirements (Method 5004) 1*, 2, 3, 4, 5, 6 Group A Test Requirements (Method 5005) 1*, 2, 3, 4, 5, 6 10k Group B and D for Class S, 1, 2, 3 5V End Point Electrical Parameters (Method 5005) *PDA applies to subgroup 1. See PDA Test Notes. –
PDA Test Notes
10k + The PDA is specified as 5% based on failures from group A, subgroup 1, tests after cooldown as the final electrical test in accordance with method 5004 of MIL-STD-883. The verified failures of group A, subgroup 1, after burn-in –5V RH6200 F02 divided by the total number of devices submitted for burn-in in that lot shall *CF IS COMPONENT OR PARASITIC be used to determine the percent for the lot. CAPACITANCE ENSURING STABILITY Linear Technology Corporation reserves the right to test to tighter limits than those given.
