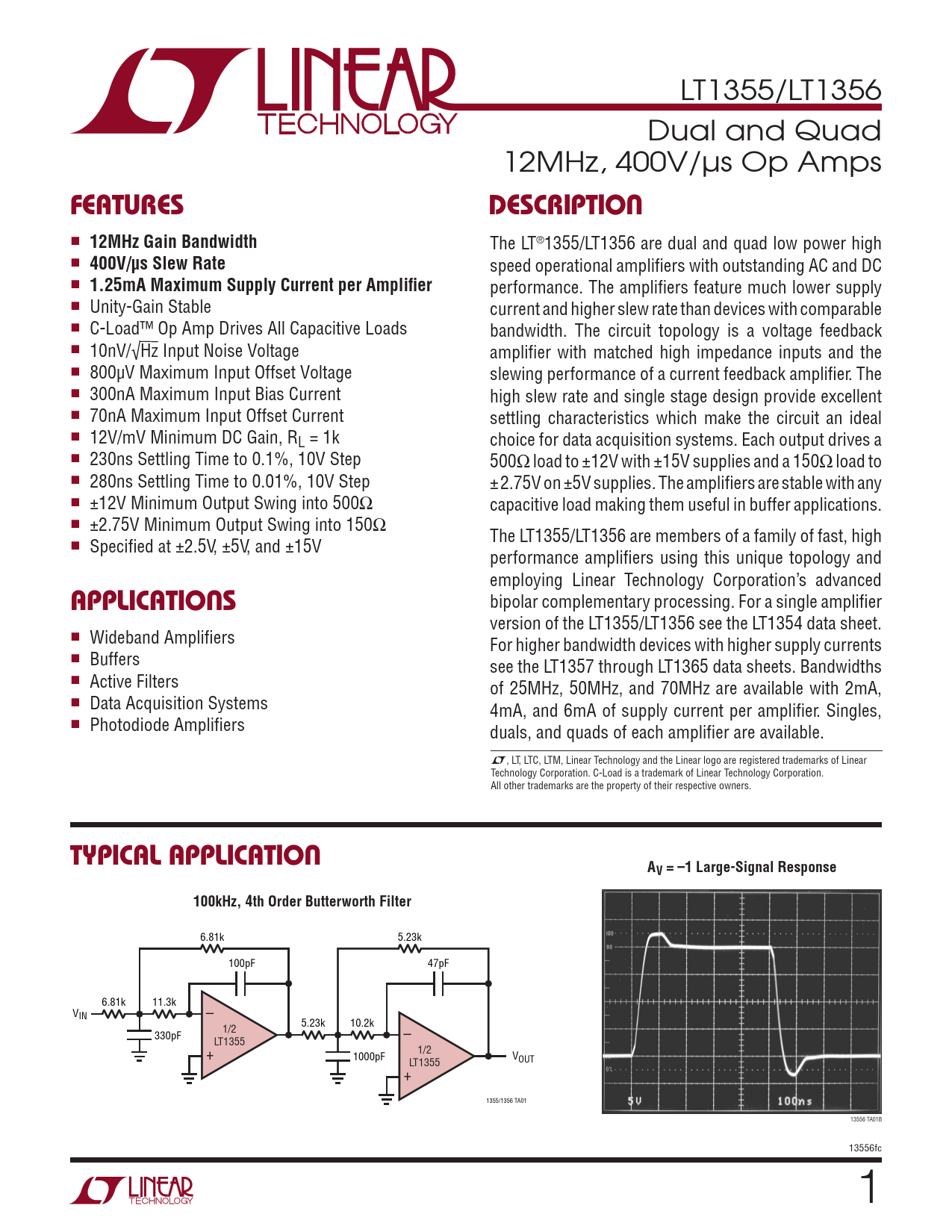

LT1355/LT1356 Dual and Quad 12MHz, 400V/µs Op Amps
FEATURES DESCRIPTION
n
12MHz Gain Bandwidth
The LT®1355/LT1356 are dual and quad low power high n
400V/µs Slew Rate
speed operational amplifiers with outstanding AC and DC n
1.25mA Maximum Supply Current per Amplifier
performance. The amplifiers feature much lower supply n Unity-Gain Stable current and higher slew rate than devices with comparable n C-Load™ Op Amp Drives All Capacitive Loads bandwidth. The circuit topology is a voltage feedback n 10nV/√Hz Input Noise Voltage amplifier with matched high impedance inputs and the n 800µV Maximum Input Offset Voltage slewing performance of a current feedback amplifier. The n 300nA Maximum Input Bias Current high slew rate and single stage design provide excellent n 70nA Maximum Input Offset Current settling characteristics which make the circuit an ideal n 12V/mV Minimum DC Gain, RL = 1k choice for data acquisition systems. Each output drives a n 230ns Settling Time to 0.1%, 10V Step 500Ω load to ±12V with ±15V supplies and a 150Ω load to n 280ns Settling Time to 0.01%, 10V Step ±2.75V on ±5V supplies. The amplifiers are stable with any n ±12V Minimum Output Swing into 500Ω capacitive load making them useful in buffer applications. n ±2.75V Minimum Output Swing into 150Ω The LT1355/LT1356 are members of a family of fast, high n Specified at ±2.5V, ±5V, and ±15V performance amplifiers using this unique topology and employing Linear Technology Corporation’s advanced
APPLICATIONS
bipolar complementary processing. For a single amplifier version of the LT1355/LT1356 see the LT1354 data sheet. n Wideband Amplifiers For higher bandwidth devices with higher supply currents n Buffers see the LT1357 through LT1365 data sheets. Bandwidths n Active Filters of 25MHz, 50MHz, and 70MHz are available with 2mA, n Data Acquisition Systems 4mA, and 6mA of supply current per amplifier. Singles, n Photodiode Amplifiers duals, and quads of each amplifier are available. L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. C-Load is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
TYPICAL APPLICATION A V = –1 Large-Signal Response 100kHz, 4th Order Butterworth Filter
6.81k 5.23k 100pF 47pF 6.81k 11.3k VIN – 5.23k 10.2k 330pF 1/2 – LT1355 + 1000pF 1/2 VOUT LT1355 + 1355/1356 TA01 13556 TA01B 13556fc 1 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Applications Related Parts
