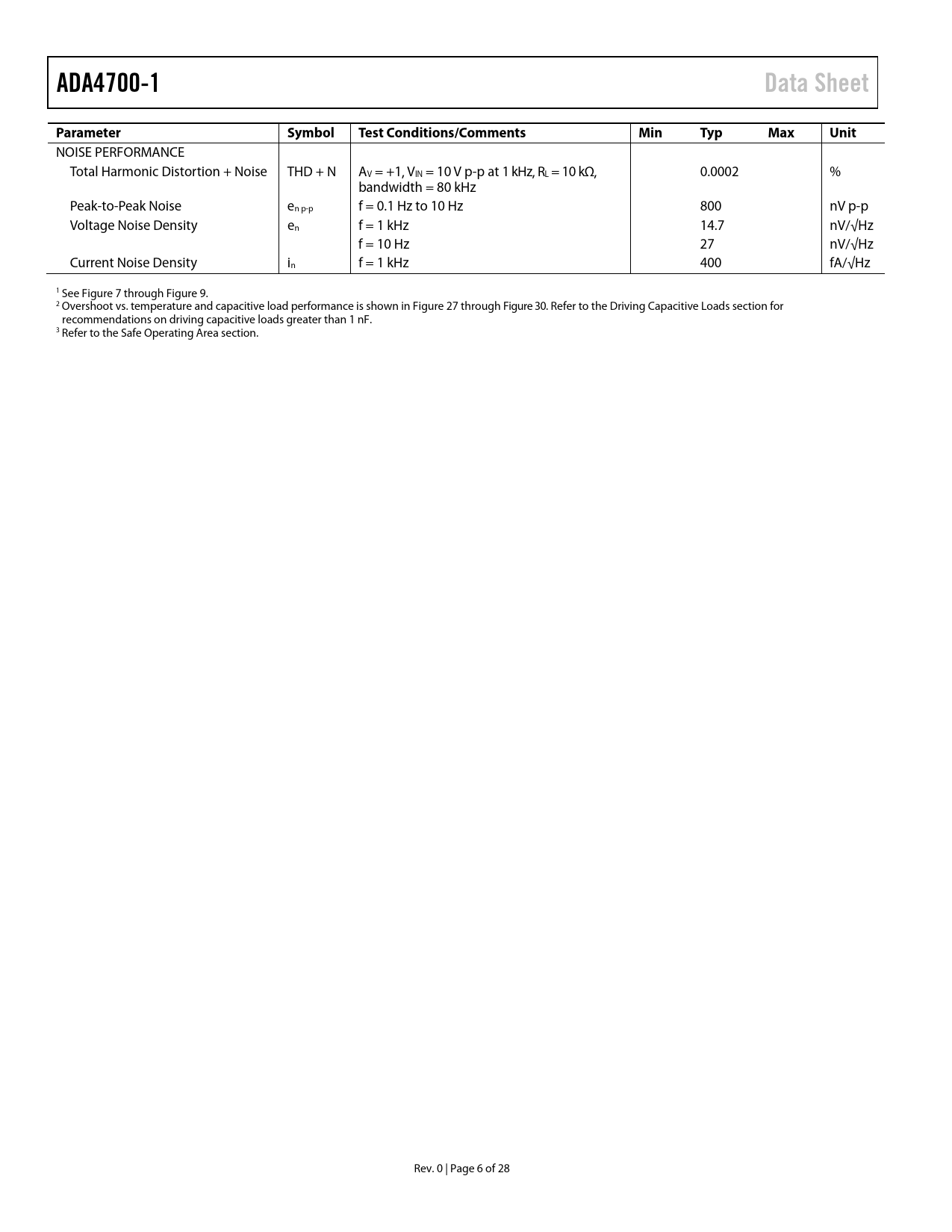

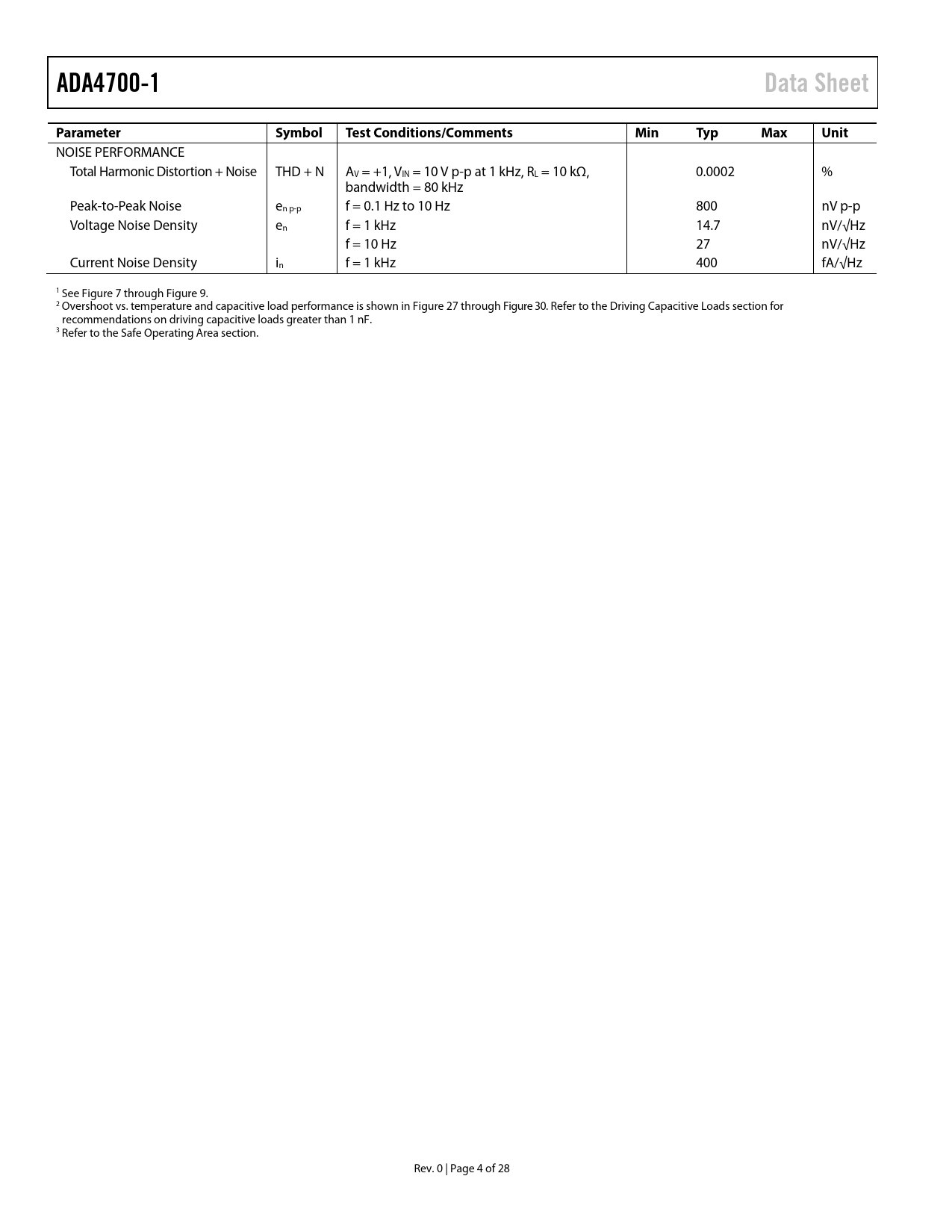

ADA4700-1 Data Sheet Parameter Symbol Test Conditions/Comments Min Typ Max Unit
NOISE PERFORMANCE Total Harmonic Distortion + Noise THD + N AV = +1, VIN = 10 V p-p at 1 kHz, RL = 10 kΩ, 0.0002 % bandwidth = 80 kHz Peak-to-Peak Noise en p-p f = 0.1 Hz to 10 Hz 800 nV p-p Voltage Noise Density en f = 1 kHz 14.7 nV/√Hz f = 10 Hz 27 nV/√Hz Current Noise Density in f = 1 kHz 400 fA/√Hz 1 See Figure 7 through Figure 9. 2 Overshoot vs. temperature and capacitive load performance is shown in Figure 27 through Figure 30. Refer to the Driving Capacitive Loads section for recommendations on driving capacitive loads greater than 1 nF. 3 Refer to the Safe Operating Area section. Rev. 0 | Page 6 of 28 Document Outline Features Applications General Description Pin Configuration Table of Contents Revision History Specifications VSY = ±50 V Electrical Characteristics VSY = ±24 V Electrical Characteristics VSY = ±5 V Electrical Charateristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Theory of Operation Thermal Regulation Applications Information Thermal Management Safe Operating Area Driving Capacitive Loads Increasing Current Drive Constant Current Applications Outline Dimensions Ordering Guide
