Datasheet LTC2380-24 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | 24-Bit, 1.5Msps/2Msps, Low Power SAR ADC with Integrated Digital Filter |
| Pages / Page | 32 / 2 — ABSOLUTE MAXIMUM RATINGS (Notes 1, 2). PIN CONFIGURATION. ORDER … |
| File Format / Size | PDF / 1.5 Mb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2). PIN CONFIGURATION. ORDER INFORMATION
Model Line for this Datasheet
- LTC2380CDE-24#PBF LTC2380CDE-24#PBF LTC2380CDE-24#TRPBF LTC2380CDE-24#TRPBF LTC2380CMS-24#PBF LTC2380CMS-24#PBF LTC2380CMS-24#TRPBF LTC2380CMS-24#TRPBF LTC2380IDE-24#PBF LTC2380IDE-24#PBF LTC2380IDE-24#TRPBF LTC2380IDE-24#TRPBF LTC2380IMS-24#PBF LTC2380IMS-24#PBF LTC2380IMS-24#TRPBF LTC2380IMS-24#TRPBF
Text Version of Document
LTC2380-24

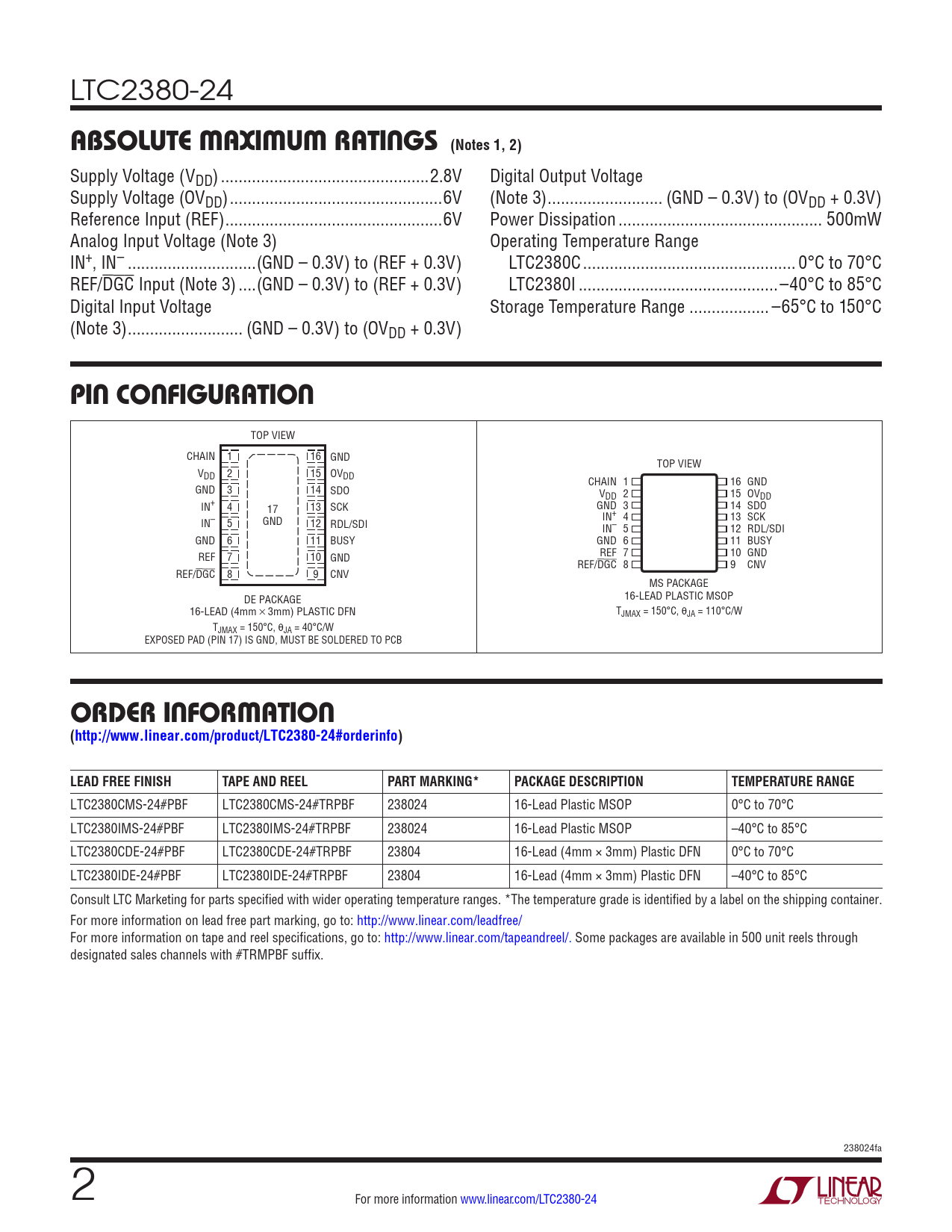

ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Supply Voltage (VDD) ...2.8V Digital Output Voltage Supply Voltage (OVDD) ..6V (Note 3) .. (GND – 0.3V) to (OVDD + 0.3V) Reference Input (REF) ...6V Power Dissipation .. 500mW Analog Input Voltage (Note 3) Operating Temperature Range IN+, IN– ...(GND – 0.3V) to (REF + 0.3V) LTC2380C .. 0°C to 70°C REF/DGC Input (Note 3) ..(GND – 0.3V) to (REF + 0.3V) LTC2380I ...–40°C to 85°C Digital Input Voltage Storage Temperature Range .. –65°C to 150°C (Note 3) .. (GND – 0.3V) to (OVDD + 0.3V)
PIN CONFIGURATION
TOP VIEW CHAIN 1 16 GND TOP VIEW VDD 2 15 OVDD CHAIN 1 16 GND GND 3 14 SDO VDD 2 15 OVDD IN+ 4 17 13 SCK GND 3 14 SDO IN– 5 GND 12 IN+ 4 13 SCK RDL/SDI IN– 5 12 RDL/SDI GND 6 11 BUSY GND 6 11 BUSY REF 7 10 GND REF 7 10 GND REF/DGC 8 9 CNV REF/DGC 8 9 CNV MS PACKAGE DE PACKAGE 16-LEAD PLASTIC MSOP 16-LEAD (4mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 110°C/W TJMAX = 150°C, θJA = 40°C/W EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION (http://www.linear.com/product/LTC2380-24#orderinfo) LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2380CMS-24#PBF LTC2380CMS-24#TRPBF 238024 16-Lead Plastic MSOP 0°C to 70°C LTC2380IMS-24#PBF LTC2380IMS-24#TRPBF 238024 16-Lead Plastic MSOP –40°C to 85°C LTC2380CDE-24#PBF LTC2380CDE-24#TRPBF 23804 16-Lead (4mm × 3mm) Plastic DFN 0°C to 70°C LTC2380IDE-24#PBF LTC2380IDE-24#TRPBF 23804 16-Lead (4mm × 3mm) Plastic DFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 238024fa 2 For more information www.linear.com/LTC2380-24 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Dynamic Accuracy Reference Input Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram Applications Information Package Description Revision History Typical Application Related Parts
