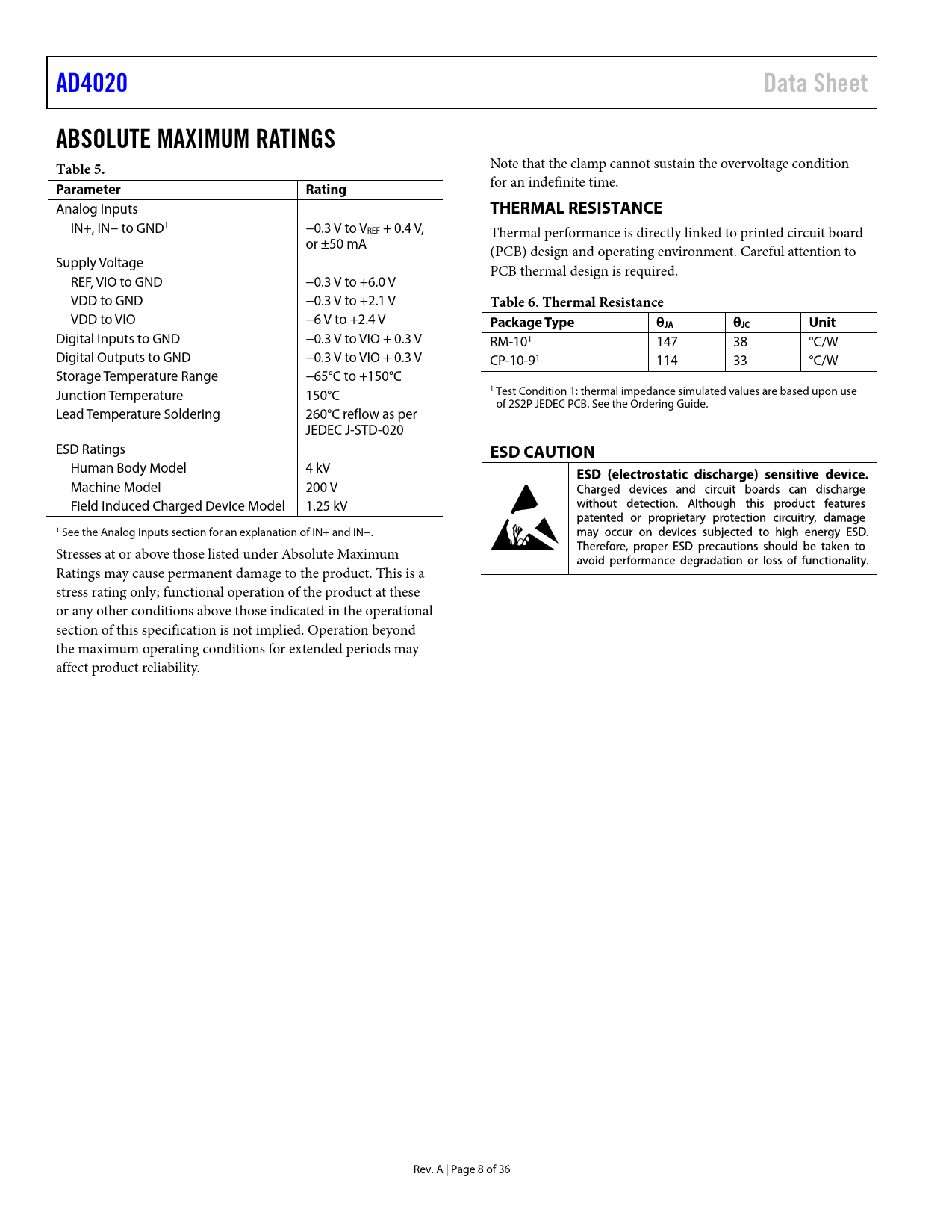

AD4020. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 5. Parameter. Rating. THERMAL RESISTANCE. Table 6. Thermal Resistance
Model Line for this Datasheet
Text Version of Document
link to page 20 link to page 37
AD4020 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 5.
Note that the clamp cannot sustain the overvoltage condition
Parameter Rating
for an indefinite time. Analog Inputs
THERMAL RESISTANCE
IN+, IN− to GND1 −0.3 V to VREF + 0.4 V, Thermal performance is directly linked to printed circuit board or ±50 mA (PCB) design and operating environment. Careful attention to Supply Voltage PCB thermal design is required. REF, VIO to GND −0.3 V to +6.0 V VDD to GND −0.3 V to +2.1 V
Table 6. Thermal Resistance
VDD to VIO −6 V to +2.4 V
Package Type θJA θJC Unit
Digital Inputs to GND −0.3 V to VIO + 0.3 V RM-101 147 38 °C/W Digital Outputs to GND −0.3 V to VIO + 0.3 V CP-10-91 114 33 °C/W Storage Temperature Range −65°C to +150°C Junction Temperature 150°C 1 Test Condition 1: thermal impedance simulated values are based upon use of 2S2P JEDEC PCB. See the Ordering Guide. Lead Temperature Soldering 260°C reflow as per JEDEC J-STD-020 ESD Ratings
