Datasheet ADL5566 (Analog Devices) - 5

ManufacturerAnalog Devices
Description4.5 GHz Ultrahigh Dynamic Range, Dual Differential Amplifier
Pages / Page25 / 5 — ADL5566. Data Sheet. Test Conditions/. 3.3 V. 5 V. Parameter. Comments. …
RevisionA
File Format / SizePDF / 838 Kb
Document LanguageEnglish

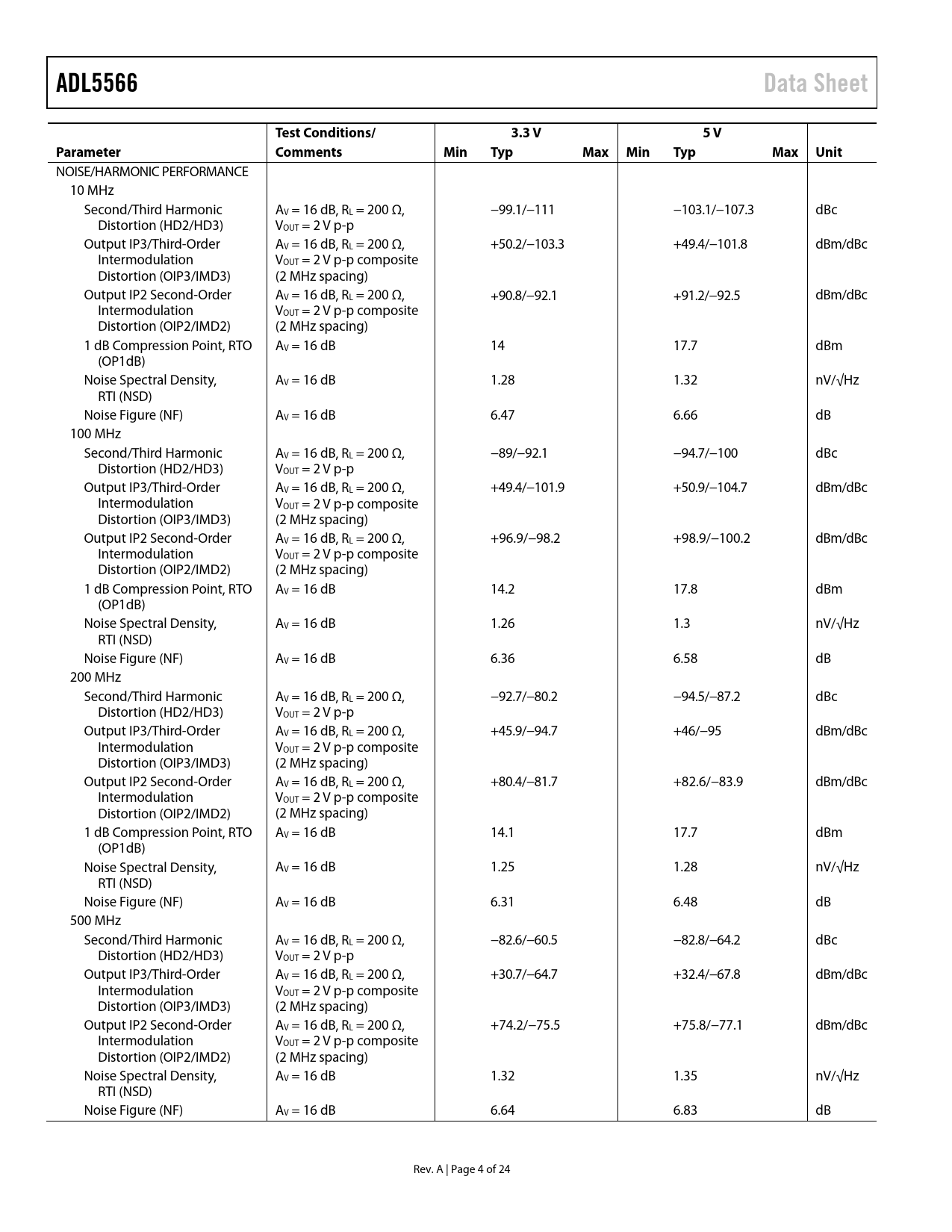

ADL5566. Data Sheet. Test Conditions/. 3.3 V. 5 V. Parameter. Comments. Min. Typ. Max Min. Max Unit

ADL5566 Data Sheet Test Conditions/ 3.3 V 5 V Parameter Comments Min Typ Max Min Max Unit

Model Line for this Datasheet

Text Version of Document

ADL5566 Data Sheet Test Conditions/ 3.3 V 5 V Parameter Comments Min Typ Max Min Typ Max Unit
NOISE/HARMONIC PERFORMANCE 10 MHz Second/Third Harmonic AV = 16 dB, RL = 200 Ω, −99.1/−111 −103.1/−107.3 dBc Distortion (HD2/HD3) VOUT = 2 V p-p Output IP3/Third-Order AV = 16 dB, RL = 200 Ω, +50.2/−103.3 +49.4/−101.8 dBm/dBc Intermodulation VOUT = 2 V p-p composite Distortion (OIP3/IMD3) (2 MHz spacing) Output IP2 Second-Order AV = 16 dB, RL = 200 Ω, +90.8/−92.1 +91.2/−92.5 dBm/dBc Intermodulation VOUT = 2 V p-p composite Distortion (OIP2/IMD2) (2 MHz spacing) 1 dB Compression Point, RTO AV = 16 dB 14 17.7 dBm (OP1dB) Noise Spectral Density, AV = 16 dB 1.28 1.32 nV/√Hz RTI (NSD) Noise Figure (NF) AV = 16 dB 6.47 6.66 dB 100 MHz Second/Third Harmonic AV = 16 dB, RL = 200 Ω, −89/−92.1 −94.7/−100 dBc Distortion (HD2/HD3) VOUT = 2 V p-p Output IP3/Third-Order AV = 16 dB, RL = 200 Ω, +49.4/−101.9 +50.9/−104.7 dBm/dBc Intermodulation VOUT = 2 V p-p composite Distortion (OIP3/IMD3) (2 MHz spacing) Output IP2 Second-Order AV = 16 dB, RL = 200 Ω, +96.9/−98.2 +98.9/−100.2 dBm/dBc Intermodulation VOUT = 2 V p-p composite Distortion (OIP2/IMD2) (2 MHz spacing) 1 dB Compression Point, RTO AV = 16 dB 14.2 17.8 dBm (OP1dB) Noise Spectral Density, AV = 16 dB 1.26 1.3 nV/√Hz RTI (NSD) Noise Figure (NF) AV = 16 dB 6.36 6.58 dB 200 MHz Second/Third Harmonic AV = 16 dB, RL = 200 Ω, −92.7/−80.2 −94.5/−87.2 dBc Distortion (HD2/HD3) VOUT = 2 V p-p Output IP3/Third-Order AV = 16 dB, RL = 200 Ω, +45.9/−94.7 +46/−95 dBm/dBc Intermodulation VOUT = 2 V p-p composite Distortion (OIP3/IMD3) (2 MHz spacing) Output IP2 Second-Order AV = 16 dB, RL = 200 Ω, +80.4/−81.7 +82.6/−83.9 dBm/dBc Intermodulation VOUT = 2 V p-p composite Distortion (OIP2/IMD2) (2 MHz spacing) 1 dB Compression Point, RTO AV = 16 dB 14.1 17.7 dBm (OP1dB) Noise Spectral Density, AV = 16 dB 1.25 1.28 nV/√Hz RTI (NSD) Noise Figure (NF) AV = 16 dB 6.31 6.48 dB 500 MHz Second/Third Harmonic AV = 16 dB, RL = 200 Ω, −82.6/−60.5 −82.8/−64.2 dBc Distortion (HD2/HD3) VOUT = 2 V p-p Output IP3/Third-Order AV = 16 dB, RL = 200 Ω, +30.7/−64.7 +32.4/−67.8 dBm/dBc Intermodulation VOUT = 2 V p-p composite Distortion (OIP3/IMD3) (2 MHz spacing) Output IP2 Second-Order AV = 16 dB, RL = 200 Ω, +74.2/−75.5 +75.8/−77.1 dBm/dBc Intermodulation VOUT = 2 V p-p composite Distortion (OIP2/IMD2) (2 MHz spacing) Noise Spectral Density, AV = 16 dB 1.32 1.35 nV/√Hz RTI (NSD) Noise Figure (NF) AV = 16 dB 6.64 6.83 dB Rev. A | Page 4 of 24 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Circuit Description Applications Information Basic Connections Input and Output Interfacing Single-Ended Input to Differential Output Gain Adjustment and Interfacing ADC Interfacing DC-Coupled Receiver Application Layout Considerations Soldering Information and Recommended Land Pattern Evaluation Board Outline Dimensions Ordering Guide
