| Manufacturer | Analog Devices |
| Description | 4.5 GHz Ultrahigh Dynamic Range, Dual Differential Amplifier |
| Pages / Page | 25 / 6 — Data Sheet. ADL5566. Test Conditions/. 3.3 V. 5 V. Parameter. Comments. … |
| Revision | A |
| File Format / Size | PDF / 838 Kb |
| Document Language | English |

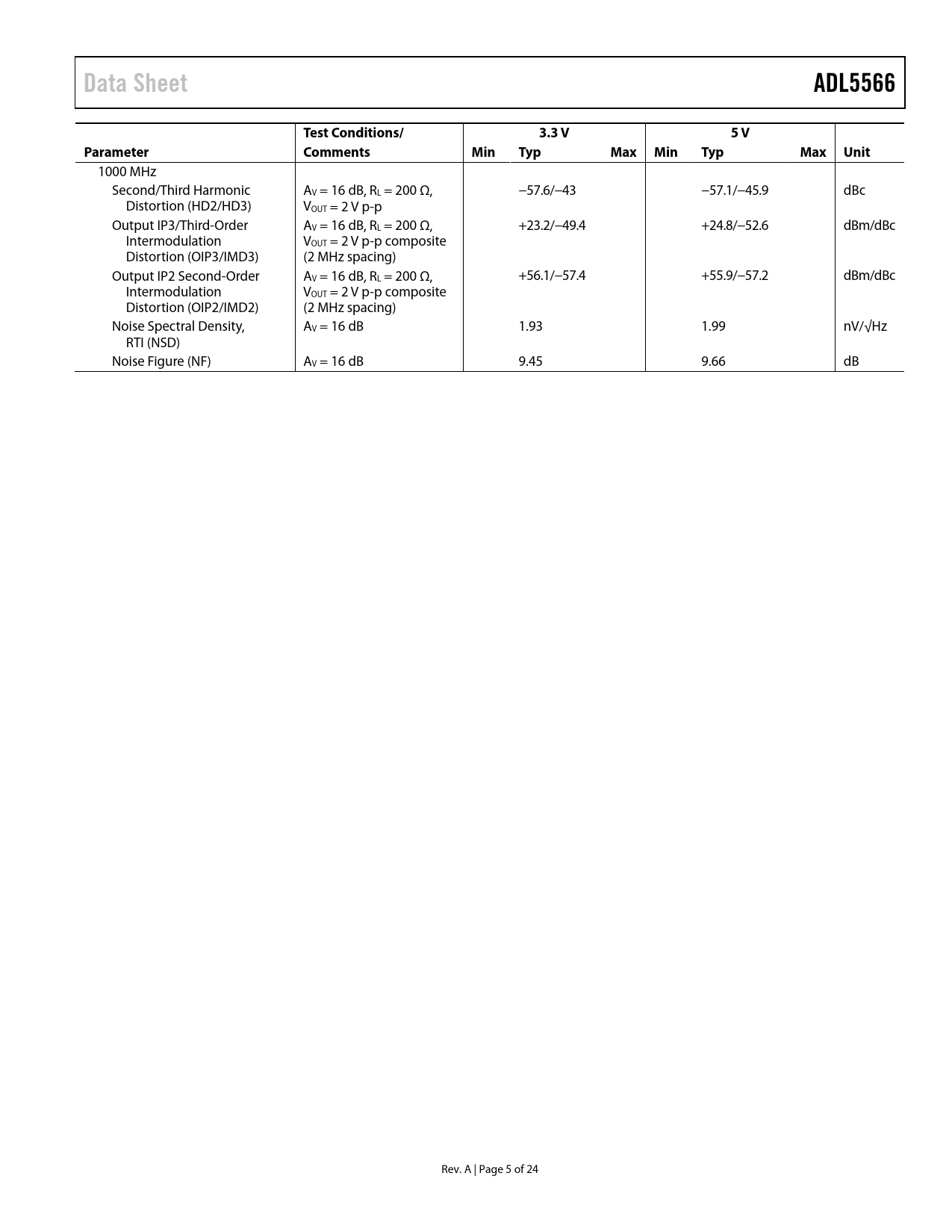

Data Sheet. ADL5566. Test Conditions/. 3.3 V. 5 V. Parameter. Comments. Min. Typ. Max Min. Max Unit
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL5566 Test Conditions/ 3.3 V 5 V Parameter Comments Min Typ Max Min Typ Max Unit
1000 MHz Second/Third Harmonic AV = 16 dB, RL = 200 Ω, −57.6/−43 −57.1/−45.9 dBc Distortion (HD2/HD3) VOUT = 2 V p-p Output IP3/Third-Order AV = 16 dB, RL = 200 Ω, +23.2/−49.4 +24.8/−52.6 dBm/dBc Intermodulation VOUT = 2 V p-p composite Distortion (OIP3/IMD3) (2 MHz spacing) Output IP2 Second-Order AV = 16 dB, RL = 200 Ω, +56.1/−57.4 +55.9/−57.2 dBm/dBc Intermodulation VOUT = 2 V p-p composite Distortion (OIP2/IMD2) (2 MHz spacing) Noise Spectral Density, AV = 16 dB 1.93 1.99 nV/√Hz RTI (NSD) Noise Figure (NF) AV = 16 dB 9.45 9.66 dB Rev. A | Page 5 of 24 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Circuit Description Applications Information Basic Connections Input and Output Interfacing Single-Ended Input to Differential Output Gain Adjustment and Interfacing ADC Interfacing DC-Coupled Receiver Application Layout Considerations Soldering Information and Recommended Land Pattern Evaluation Board Outline Dimensions Ordering Guide
