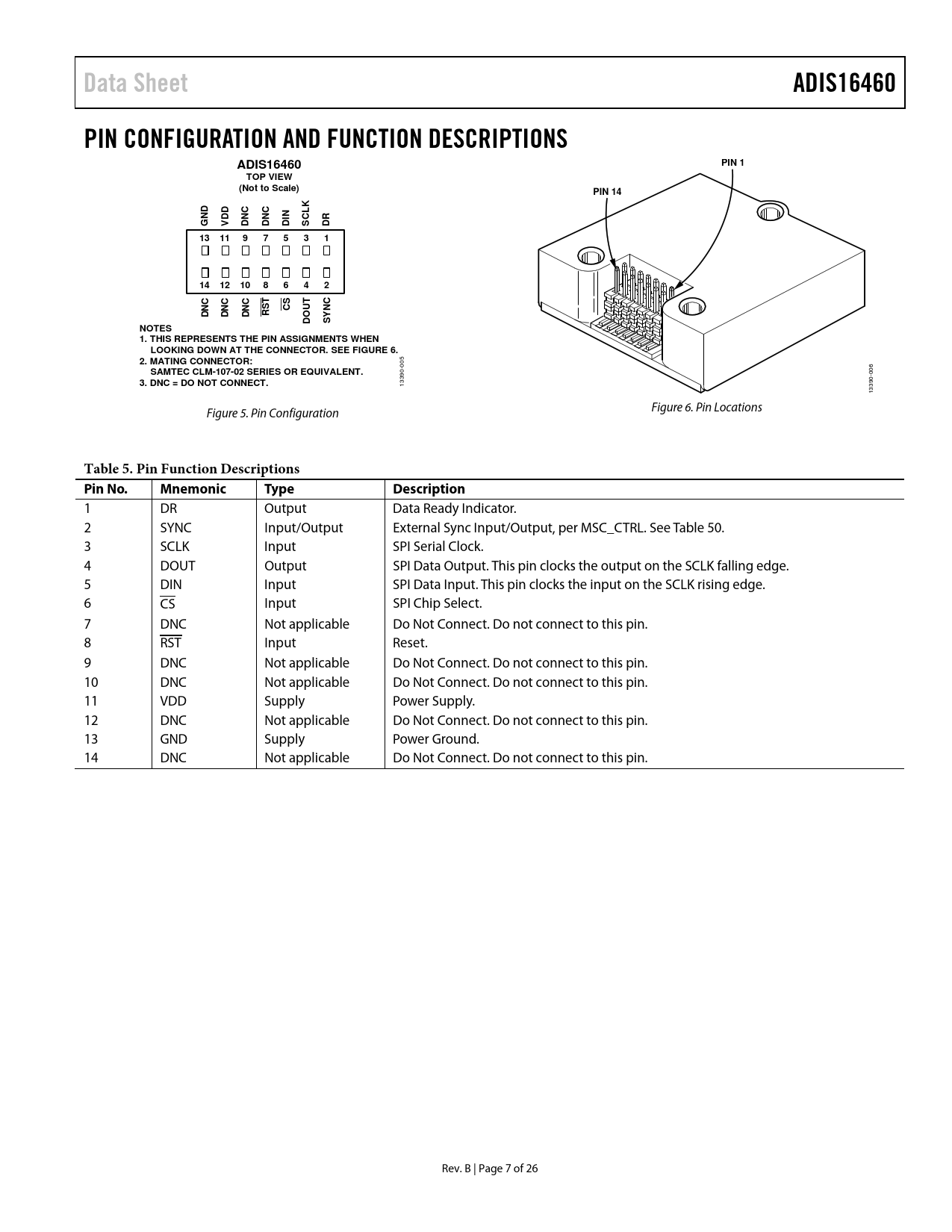

Data Sheet. ADIS16460. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. PIN 1. TOP VIEW. (Not to Scale). PIN 14. DNC. SYN
Model Line for this Datasheet
Text Version of Document
link to page 21
Data Sheet ADIS16460 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ADIS16460 PIN 1 TOP VIEW (Not to Scale) PIN 14 K N ND DD CL G V DNC DNC DI S DR 13 11 9 7 5 3 1 14 12 10 8 6 4 2 T C CS UT DNC DNC DNC RS DO SYN NOTES 1. THIS REPRESENTS THE PIN ASSIGNMENTS WHEN LOOKING DOWN AT THE CONNECTOR. SEE FIGURE 6. 2. MATING CONNECTOR:
005
SAMTEC CLM-107-02 SERIES OR EQUIVALENT.
006
3. DNC = DO NOT CONNECT.
13390- 13390- Figure 5. Pin Configuration Figure 6. Pin Locations
Table 5. Pin Function Descriptions Pin No. Mnemonic Type Description
1 DR Output Data Ready Indicator. 2 SYNC Input/Output External Sync Input/Output, per MSC_CTRL. See Table 50. 3 SCLK Input SPI Serial Clock. 4 DOUT Output SPI Data Output. This pin clocks the output on the SCLK falling edge. 5 DIN Input SPI Data Input. This pin clocks the input on the SCLK rising edge. 6 CS Input SPI Chip Select. 7 DNC Not applicable Do Not Connect. Do not connect to this pin. 8 RST Input Reset. 9 DNC Not applicable Do Not Connect. Do not connect to this pin. 10 DNC Not applicable Do Not Connect. Do not connect to this pin. 11 VDD Supply Power Supply. 12 DNC Not applicable Do Not Connect. Do not connect to this pin. 13 GND Supply Power Ground. 14 DNC Not applicable Do Not Connect. Do not connect to this pin. Rev. B | Page 7 of 26 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION READING SENSOR DATA Burst Read Function SPI Read Test Sequence DEVICE CONFIGURATION Dual Memory Structure USER REGISTERS OUTPUT DATA REGISTERS ROTATION Angular Rate Data Delta Angle Data ACCELEROMETERS Linear Acceleration Delta Velocity Data INTERNAL TEMPERATURE PRODUCT IDENTIFICATION STATUS/ERROR FLAGS Manual Flash Update SPI Communication Failure Sensor Overrange Self Test Failure Flash Test Failure Input Clock Sync Failure SYSTEM FUNCTIONS GLOBAL COMMANDS SOFTWARE RESET FLASH MEMORY TEST MANUAL FLASH UPDATE AUTOMATED SELF TEST INPUT/OUTPUT CONFIGURATION DATA READY (DR) PIN CONFIGURATION SYNC PIN CONFIGURATION Sample Time Indicator Precision Input Sync with Data Counter Direct Sample Control DIGITAL PROCESSING CONFIGURATION GYROSCOPES/ACCELEROMETERS Digital Filtering CALIBRATION GYROSCOPES Gyroscope Bias Error Estimation Gyroscope Bias Correction Factors Single Command Bias Correction ACCELEROMETERS Accelerometer Bias Error Estimation Accelerometer Bias Correction Factors Point of Percussion Alignment RESTORING FACTORY CALIBRATION APPLICATIONS INFORMATION MOUNTING TIPS POWER SUPPLY CONSIDERATIONS BREAKOUT BOARD PC-BASED EVALUATION TOOLS Estimating the Number of Relevant Bits OUTLINE DIMENSIONS ORDERING GUIDE
