Datasheet ADL5602 (Analog Devices) - 6

ManufacturerAnalog Devices
Description50 MHz TO 4.0 GHz RF/IF Gain Block
Pages / Page16 / 6 — ADL5602. Data Sheet. Frequency. S11. S21. S12. S22. (MHz)
RevisionA
File Format / SizePDF / 310 Kb
Document LanguageEnglish

ADL5602. Data Sheet. Frequency. S11. S21. S12. S22. (MHz)

ADL5602 Data Sheet Frequency S11 S21 S12 S22 (MHz)

Model Line for this Datasheet

Text Version of Document

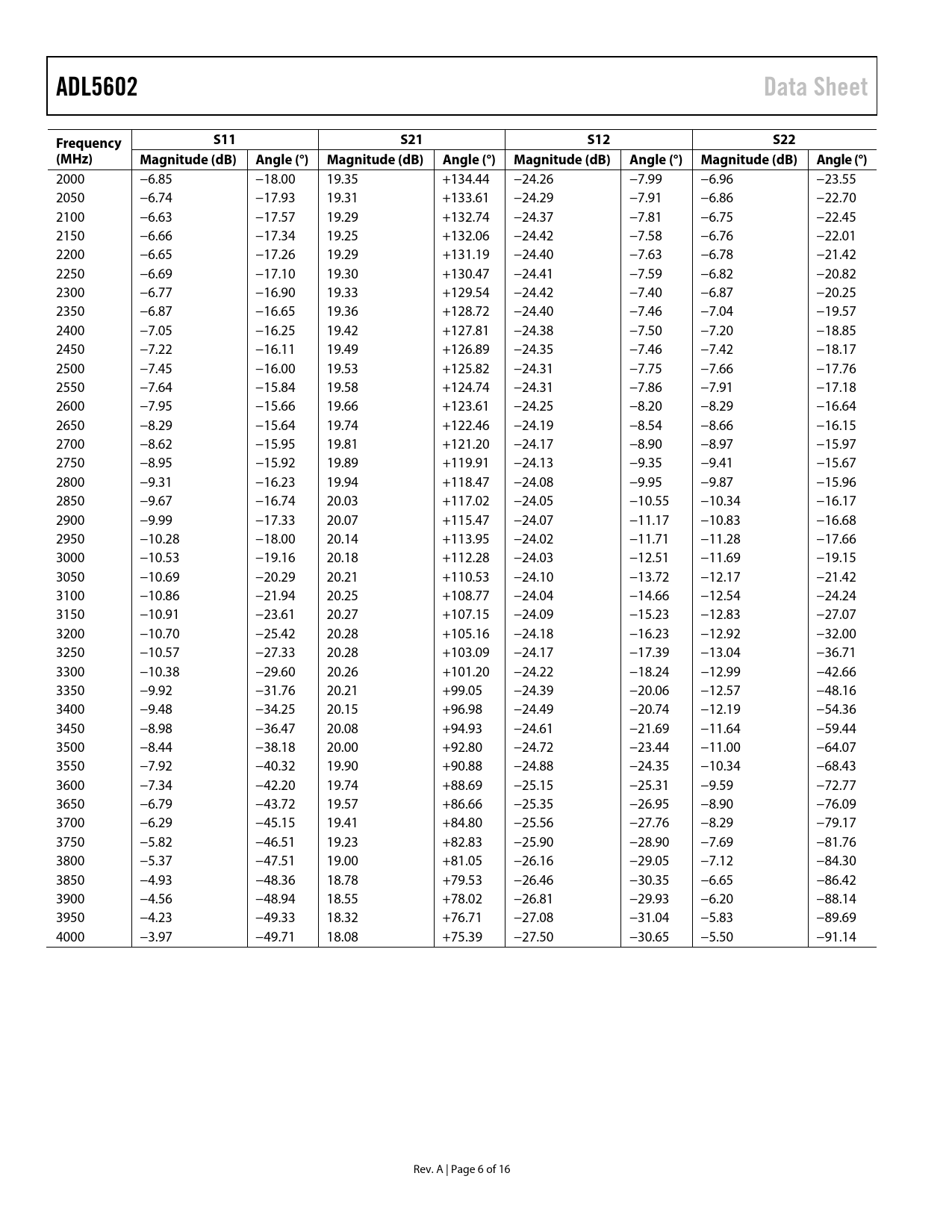

ADL5602 Data Sheet Frequency S11 S21 S12 S22 (MHz) Magnitude (dB) Angle (°) Magnitude (dB) Angle (°) Magnitude (dB) Angle (°) Magnitude (dB) Angle (°)
2000 −6.85 −18.00 19.35 +134.44 −24.26 −7.99 −6.96 −23.55 2050 −6.74 −17.93 19.31 +133.61 −24.29 −7.91 −6.86 −22.70 2100 −6.63 −17.57 19.29 +132.74 −24.37 −7.81 −6.75 −22.45 2150 −6.66 −17.34 19.25 +132.06 −24.42 −7.58 −6.76 −22.01 2200 −6.65 −17.26 19.29 +131.19 −24.40 −7.63 −6.78 −21.42 2250 −6.69 −17.10 19.30 +130.47 −24.41 −7.59 −6.82 −20.82 2300 −6.77 −16.90 19.33 +129.54 −24.42 −7.40 −6.87 −20.25 2350 −6.87 −16.65 19.36 +128.72 −24.40 −7.46 −7.04 −19.57 2400 −7.05 −16.25 19.42 +127.81 −24.38 −7.50 −7.20 −18.85 2450 −7.22 −16.11 19.49 +126.89 −24.35 −7.46 −7.42 −18.17 2500 −7.45 −16.00 19.53 +125.82 −24.31 −7.75 −7.66 −17.76 2550 −7.64 −15.84 19.58 +124.74 −24.31 −7.86 −7.91 −17.18 2600 −7.95 −15.66 19.66 +123.61 −24.25 −8.20 −8.29 −16.64 2650 −8.29 −15.64 19.74 +122.46 −24.19 −8.54 −8.66 −16.15 2700 −8.62 −15.95 19.81 +121.20 −24.17 −8.90 −8.97 −15.97 2750 −8.95 −15.92 19.89 +119.91 −24.13 −9.35 −9.41 −15.67 2800 −9.31 −16.23 19.94 +118.47 −24.08 −9.95 −9.87 −15.96 2850 −9.67 −16.74 20.03 +117.02 −24.05 −10.55 −10.34 −16.17 2900 −9.99 −17.33 20.07 +115.47 −24.07 −11.17 −10.83 −16.68 2950 −10.28 −18.00 20.14 +113.95 −24.02 −11.71 −11.28 −17.66 3000 −10.53 −19.16 20.18 +112.28 −24.03 −12.51 −11.69 −19.15 3050 −10.69 −20.29 20.21 +110.53 −24.10 −13.72 −12.17 −21.42 3100 −10.86 −21.94 20.25 +108.77 −24.04 −14.66 −12.54 −24.24 3150 −10.91 −23.61 20.27 +107.15 −24.09 −15.23 −12.83 −27.07 3200 −10.70 −25.42 20.28 +105.16 −24.18 −16.23 −12.92 −32.00 3250 −10.57 −27.33 20.28 +103.09 −24.17 −17.39 −13.04 −36.71 3300 −10.38 −29.60 20.26 +101.20 −24.22 −18.24 −12.99 −42.66 3350 −9.92 −31.76 20.21 +99.05 −24.39 −20.06 −12.57 −48.16 3400 −9.48 −34.25 20.15 +96.98 −24.49 −20.74 −12.19 −54.36 3450 −8.98 −36.47 20.08 +94.93 −24.61 −21.69 −11.64 −59.44 3500 −8.44 −38.18 20.00 +92.80 −24.72 −23.44 −11.00 −64.07 3550 −7.92 −40.32 19.90 +90.88 −24.88 −24.35 −10.34 −68.43 3600 −7.34 −42.20 19.74 +88.69 −25.15 −25.31 −9.59 −72.77 3650 −6.79 −43.72 19.57 +86.66 −25.35 −26.95 −8.90 −76.09 3700 −6.29 −45.15 19.41 +84.80 −25.56 −27.76 −8.29 −79.17 3750 −5.82 −46.51 19.23 +82.83 −25.90 −28.90 −7.69 −81.76 3800 −5.37 −47.51 19.00 +81.05 −26.16 −29.05 −7.12 −84.30 3850 −4.93 −48.36 18.78 +79.53 −26.46 −30.35 −6.65 −86.42 3900 −4.56 −48.94 18.55 +78.02 −26.81 −29.93 −6.20 −88.14 3950 −4.23 −49.33 18.32 +76.71 −27.08 −31.04 −5.83 −89.69 4000 −3.97 −49.71 18.08 +75.39 −27.50 −30.65 −5.50 −91.14 Rev. A | Page 6 of 16 Document Outline Features Functional Block Diagram General Description Revision History Specifications Typical Scattering Parameters (S Parameters) Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Basic Connections Soldering Information and Recommended PCB Land Pattern W-CDMA ACPR Performance Evaluation Board Outline Dimensions Ordering Guide
