Datasheet ADN2891 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 3.3 V, 3.2 Gbps Limiting Amplifier |
| Pages / Page | 16 / 7 — Data Sheet. ADN2891. TYPICAL PERFORMANCE CHARACTERISTICS. 100mV/DIV. … |
| Revision | B |
| File Format / Size | PDF / 603 Kb |
| Document Language | English |
Data Sheet. ADN2891. TYPICAL PERFORMANCE CHARACTERISTICS. 100mV/DIV. 50ps/DIV. 1ns/DIV
Model Line for this Datasheet
Text Version of Document
Data Sheet ADN2891 TYPICAL PERFORMANCE CHARACTERISTICS 100mV/DIV 100mV/DIV
05244-015 05244-020
50ps/DIV 50ps/DIV

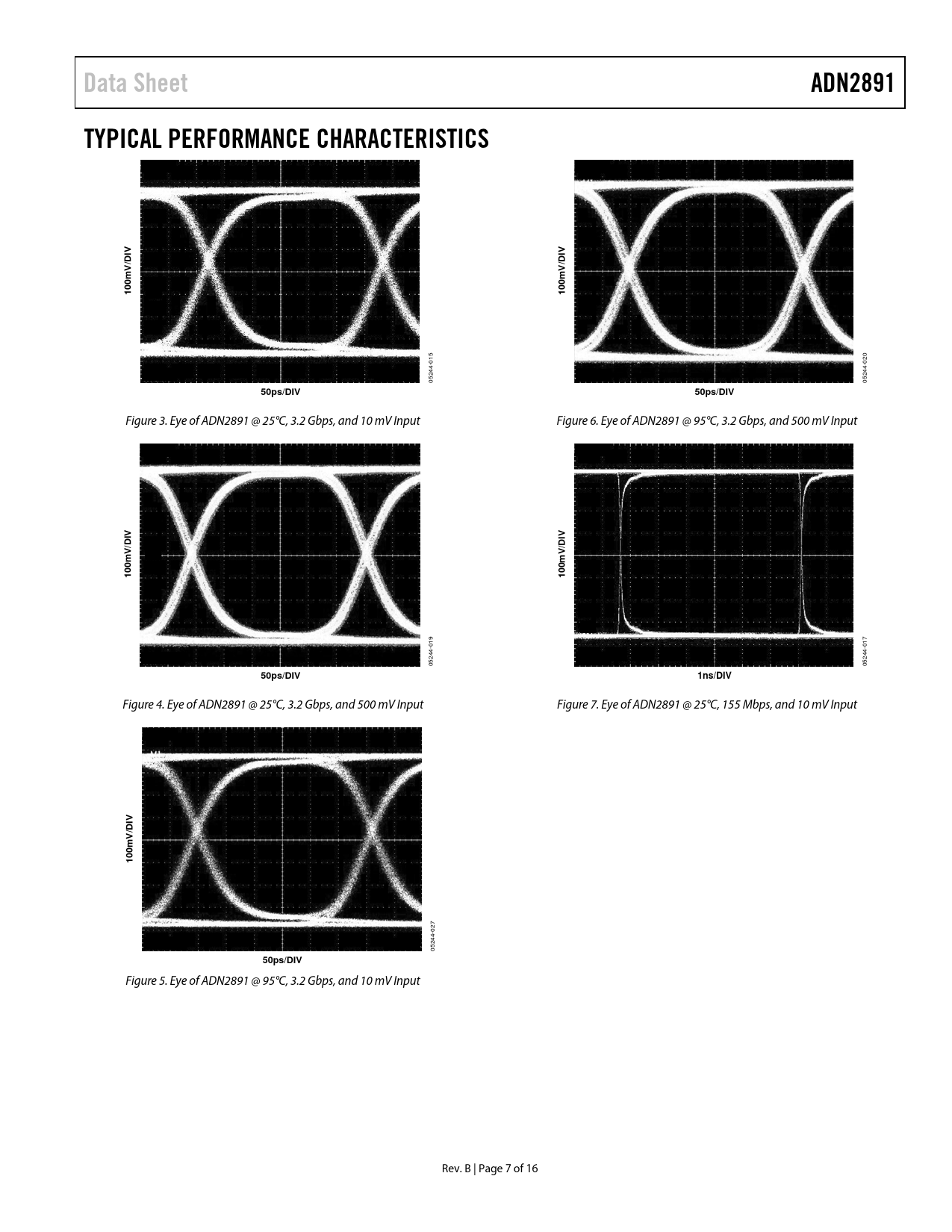

Figure 3. Eye of ADN2891 @ 25°C, 3.2 Gbps, and 10 mV Input Figure 6. Eye of ADN2891 @ 95°C, 3.2 Gbps, and 500 mV Input
100mV/DIV 100mV/DIV
05244-019 05244-017
50ps/DIV 1ns/DIV
Figure 4. Eye of ADN2891 @ 25°C, 3.2 Gbps, and 500 mV Input Figure 7. Eye of ADN2891 @ 25°C, 155 Mbps, and 10 mV Input
100mV/DIV
05244-027
50ps/DIV
Figure 5. Eye of ADN2891 @ 95°C, 3.2 Gbps, and 10 mV Input Rev. B | Page 7 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION LIMITING AMPLIFIER Input Buffer CML Output Buffer LOSS OF SIGNAL (LOS) DETECTOR RECEIVED SIGNAL STRENGTH INDICATOR (RSSI) SQUELCH MODE APPLICATIONS PCB DESIGN GUIDELINES Output Buffer Power Supply and Ground Planes PCB Layout Soldering Guidelines for the LFCSP OUTLINE DIMENSIONS ORDERING GUIDE
