Datasheet ADXL356-EP (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometer |
| Pages / Page | 9 / 6 — ADXL356-EP. Enhanced Product. PIN CONFIGURATION AND FUNCTION … |
| File Format / Size | PDF / 345 Kb |
| Document Language | English |

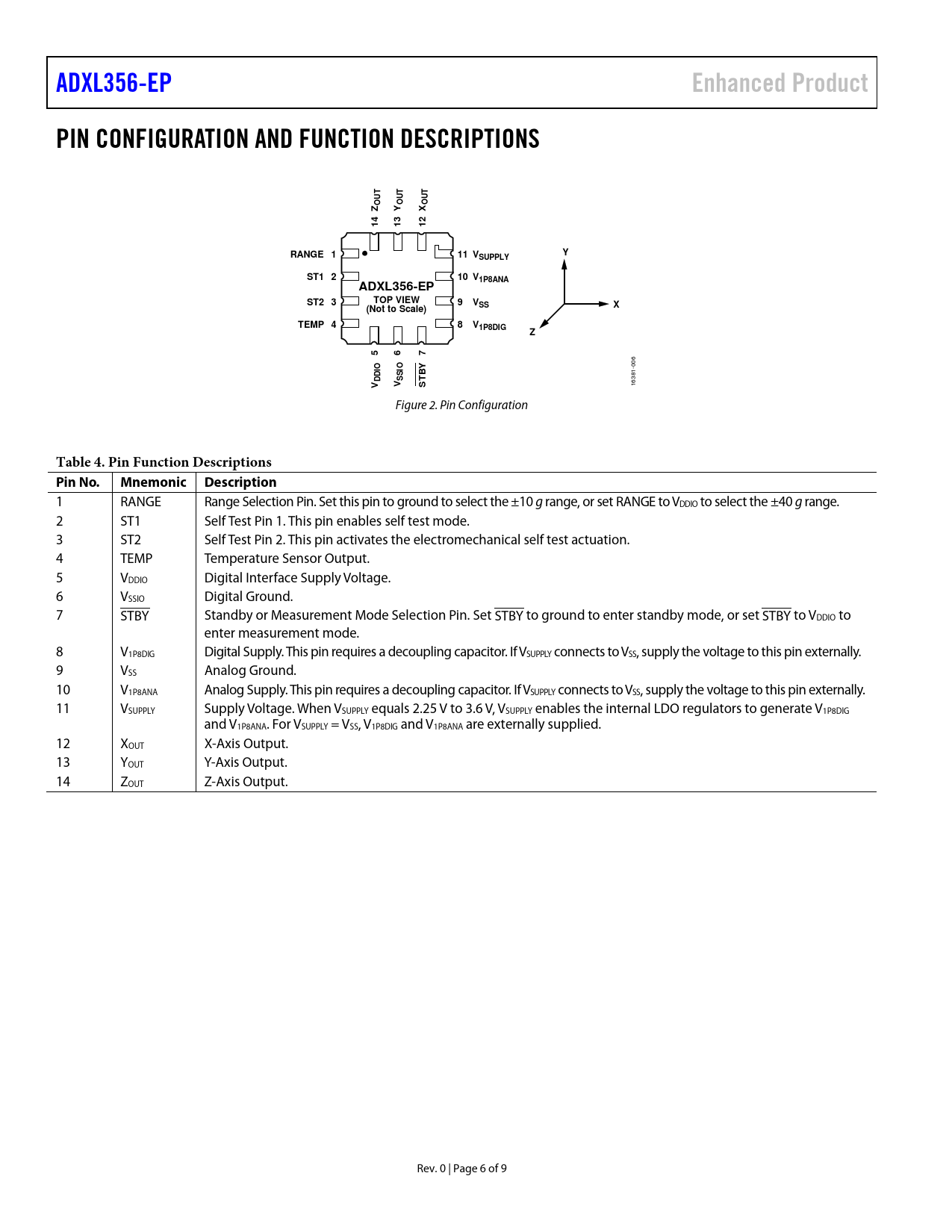

ADXL356-EP. Enhanced Product. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. RANGE 1. 11 V. SUPPLY. ST1 2. 10 V1P8ANA. TOP VIEW. ST2 3. VSS
Model Line for this Datasheet
Text Version of Document
ADXL356-EP Enhanced Product PIN CONFIGURATION AND FUNCTION DESCRIPTIONS UT UT UT O O O Z Y X 14 13 12 RANGE 1 11 V Y SUPPLY ST1 2 10 V1P8ANA ADXL356-EP TOP VIEW ST2 3 9 VSS (Not to Scale) X TEMP 4 8 V1P8DIG Z 5 6 7 O O
006
BY DDI SSI T V V S
16381- Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 RANGE Range Selection Pin. Set this pin to ground to select the ±10 g range, or set RANGE to VDDIO to select the ±40 g range. 2 ST1 Self Test Pin 1. This pin enables self test mode. 3 ST2 Self Test Pin 2. This pin activates the electromechanical self test actuation. 4 TEMP Temperature Sensor Output. 5 VDDIO Digital Interface Supply Voltage. 6 VSSIO Digital Ground. 7 STBY Standby or Measurement Mode Selection Pin. Set STBY to ground to enter standby mode, or set STBY to VDDIO to enter measurement mode. 8 V1P8DIG Digital Supply. This pin requires a decoupling capacitor. If VSUPPLY connects to VSS, supply the voltage to this pin external y. 9 VSS Analog Ground. 10 V1P8ANA Analog Supply. This pin requires a decoupling capacitor. If VSUPPLY connects to VSS, supply the voltage to this pin external y. 11 VSUPPLY Supply Voltage. When VSUPPLY equals 2.25 V to 3.6 V, VSUPPLY enables the internal LDO regulators to generate V1P8DIG and V1P8ANA. For VSUPPLY = VSS, V1P8DIG and V1P8ANA are externally supplied. 12 XOUT X-Axis Output. 13 YOUT Y-Axis Output. 14 ZOUT Z-Axis Output. Rev. 0 | Page 6 of 9 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
