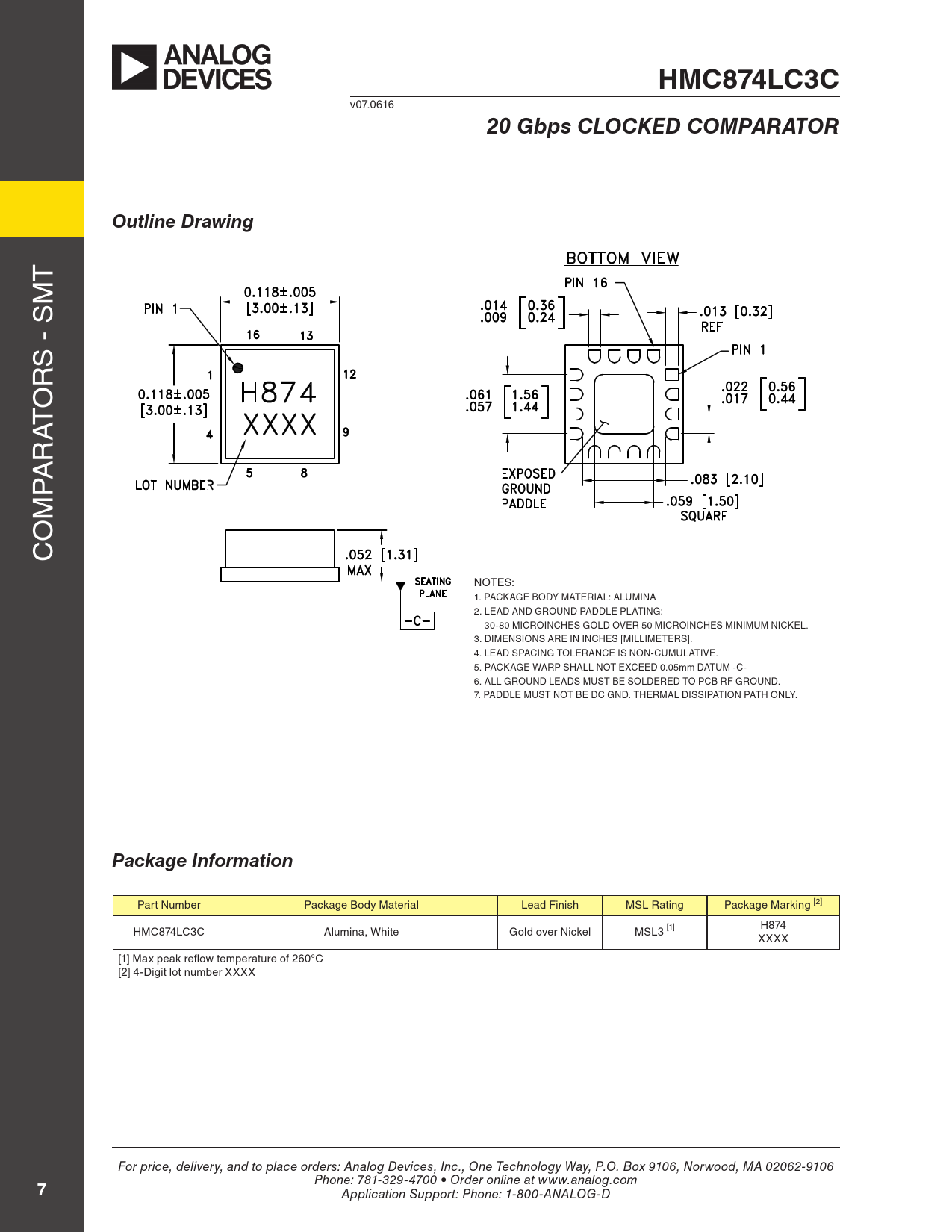

HMC874LC3C. 20 Gbps CLOCKED COMPARATOR. Outline Drawing. Package Information
Model Line for this Datasheet
Text Version of Document
HMC874LC3C
v07.0616
20 Gbps CLOCKED COMPARATOR Outline Drawing
T M S - S R O AT R A P OM C NOTES: 1. PACKAGE BODY MATERIAL: ALUMINA 2. LEAD AND GROUND PADDLE PLATING: 30-80 MICROINCHES GOLD OVER 50 MICROINCHES MINIMUM NICKEL. 3. DIMENSIONS ARE IN INCHES [MILLIMETERS]. 4. LEAD SPACING TOLERANCE IS NON-CUMULATIVE. 5. PACKAGE WARP SHALL NOT EXCEED 0.05mm DATUM -C- 6. ALL GROUND LEADS MUST BE SOLDERED TO PCB RF GROUND. 7. PADDLE MUST NOT BE DC GND. THERMAL DISSIPATION PATH ONLY.
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] HMC874LC3C Alumina, White Gold over Nickel MSL3 [1] H874 XXXX [1] Max peak reflow temperature of 260°C [2] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
