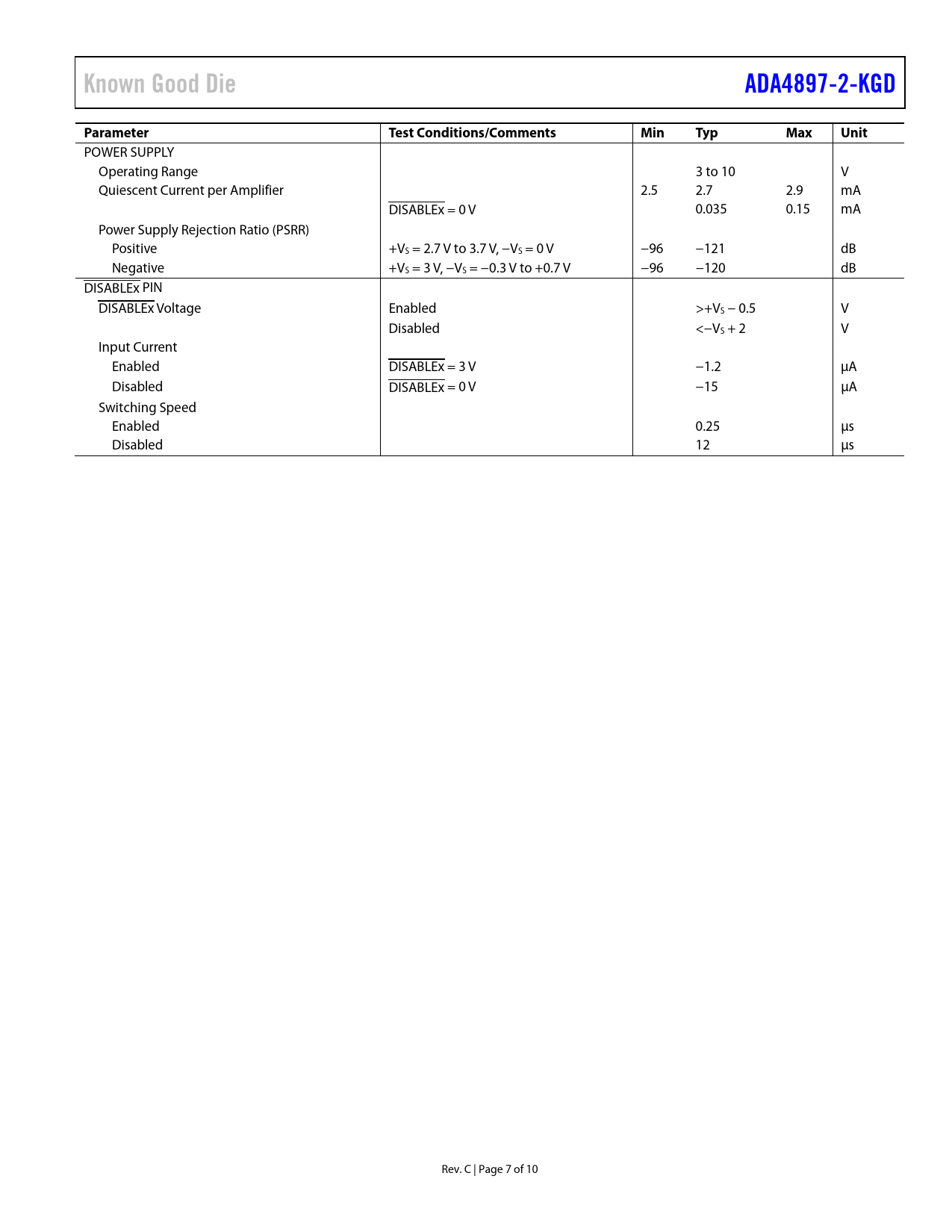

Known Good Die ADA4897-2-KGD Parameter Test Conditions/Comments Min Typ Max Unit
POWER SUPPLY Operating Range 3 to 10 V Quiescent Current per Amplifier 2.5 2.7 2.9 mA DISABLEx = 0 V 0.035 0.15 mA Power Supply Rejection Ratio (PSRR) Positive +VS = 2.7 V to 3.7 V, −VS = 0 V −96 −121 dB Negative +VS = 3 V, −VS = −0.3 V to +0.7 V −96 −120 dB DISABLEx PIN DISABLEx Voltage Enabled >+VS − 0.5 V Disabled <−VS + 2 V Input Current Enabled DISABLEx = 3 V −1.2 µA Disabled DISABLEx = 0 V −15 µA Switching Speed Enabled 0.25 µs Disabled 12 µs Rev. C | Page 7 of 10 Document Outline Features Applications General Description Revision History Specifications ±5 V Supply +5 V Supply +3 V Supply Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide
