Datasheet ADL8150ACHIP (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | GaAs, HBT, MMIC, Low Phase Noise Amplifier, 6 GHz to 14 GHz |
| Pages / Page | 14 / 5 — Data Sheet. ADL8150ACHIP. ABSOLUTE MAXIMUM RATINGS Table 4. ELECTROSTATIC … |
| File Format / Size | PDF / 289 Kb |
| Document Language | English |

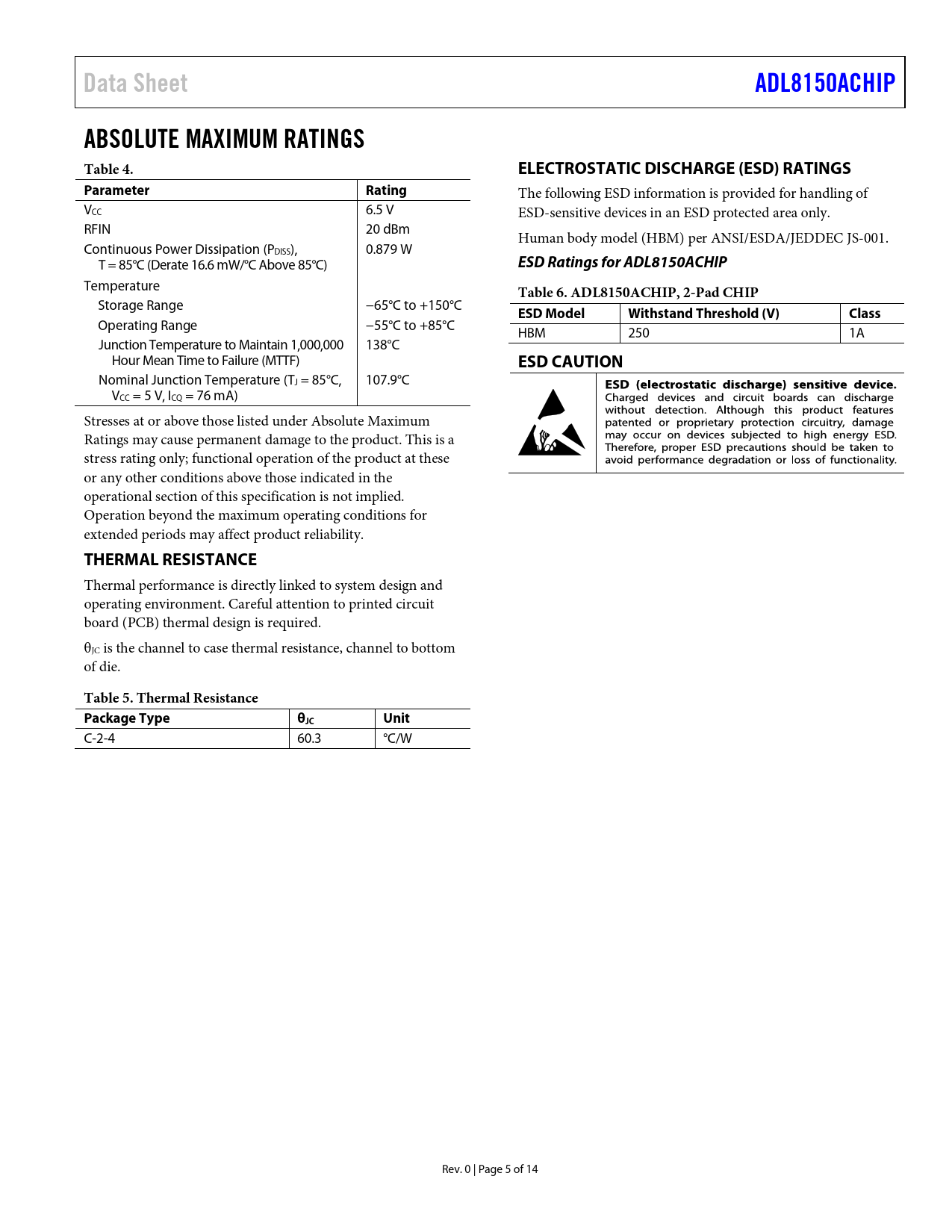

Data Sheet. ADL8150ACHIP. ABSOLUTE MAXIMUM RATINGS Table 4. ELECTROSTATIC DISCHARGE (ESD) RATINGS. Parameter. Rating
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL8150ACHIP ABSOLUTE MAXIMUM RATINGS Table 4. ELECTROSTATIC DISCHARGE (ESD) RATINGS Parameter Rating
The following ESD information is provided for handling of VCC 6.5 V ESD-sensitive devices in an ESD protected area only. RFIN 20 dBm Human body model (HBM) per ANSI/ESDA/JEDDEC JS-001. Continuous Power Dissipation (PDISS), 0.879 W T = 85°C (Derate 16.6 mW/°C Above 85°C)
ESD Ratings for ADL8150ACHIP
Temperature
Table 6. ADL8150ACHIP, 2-Pad CHIP
Storage Range −65°C to +150°C
ESD Model Withstand Threshold (V) Class
Operating Range −55°C to +85°C HBM 250 1A Junction Temperature to Maintain 1,000,000 138°C Hour Mean Time to Failure (MTTF)
ESD CAUTION
Nominal Junction Temperature (TJ = 85°C, 107.9°C VCC = 5 V, ICQ = 76 mA) Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability.
THERMAL RESISTANCE
Thermal performance is directly linked to system design and operating environment. Careful attention to printed circuit board (PCB) thermal design is required. θJC is the channel to case thermal resistance, channel to bottom of die.
Table 5. Thermal Resistance Package Type θJC Unit
